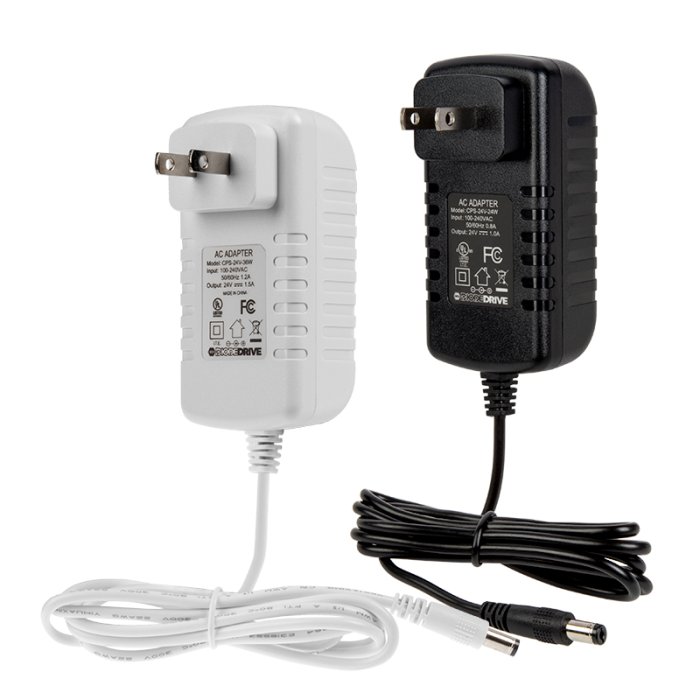

DiodeDrive Wall-Mounted AC Adapter - 24 VDC Power Supply - 12W / 18W / 24W / 36W / 48W
Part Number:
CPS-24V-xW
Manufacturer Part Number:
Starting at
$7.99
ea.
Starting at
Was
In Stock
Features
- 1-15P plug for 120 VAC input
- 5.5mm barrel connector for 24 VDC output
- Class II
- UL Listed
Related Products
Overview
Power Adaptor from DiodeDrive provides power for 24 VDC systems. The Class II device has an enclosed plastic case and protection against electrical shock. 2-prong 120 VAC input. 5.5-mm barrel connector.
Product Details:
- Class II power supply
- UL listed
- 2-Pin plug for 120 VAC input
- 5.5mm Barrel for 24 VDC output
- 4' wire length
- 3-Year warranty
CPS Wall-Mounted AC Adapter Specification Sheet
Super Bright LEDs, Inc. offers a 3-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
Products with a Federal Communications Commission (FCC) label meet all requirements and rules set forth by the FCC and won't cause interference with other electronic devices. According to FCC's website, "The Federal Communications Commission regulates interstate and international communications by radio, television, wire, satellite and cable in all 50 states, the District of Columbia and U.S. territories." Products that generate radio frequency (RF) energy, such as RF remote controls and certain LED light bulbs, are tested to ensure that they are within the FCC's guidelines and limits and do not cause harmful interference.
Specifications
| Ambient Operating Temperature Range | 0 to 40 °C (32 to 104 °F) |
|---|---|
| Brand | DiodeDrive |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact, energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else who may be involved confidence that the product is safe and will work well in their application. UL and ETL certifications relate to safety and installation and are the most common for power supplies. |
FCC, UL Listed |
| Dimmable | No |
|
Dimming Control
Dimming Control
TRIAC Dimming: This is the most commonly recognized dimming type, with TRIAC Dimmers found in most Home Centers and hardware stores. TRIAC (TRIode for Alternating Current) dimmers operate by modifying the voltage waveform, reducing the amount of power input to the device being controlled. Reducing the input power will result in a corresponding reduction in a power supply's output voltage/current or a decrease in the lumen output of a light fixture. TRIAC dimmers come in two variations: Forward Phase and Reverse Phase
0-10V Dimming: This type of dimming control is most commonly found in commercial applications. It works by varying a voltage from 0 to 10 VDC on dedicated dimming wires. The output of a power supply or light fixture is proportional to the voltage applied. Pulse-Width Modulation (PWM) Dimming: This dimming control adjusts output by rapidly turning the output on and off at a fixed frequency. The proportion of on-time to total time sets the dimming percentage. Potentiometer Dimming: Potentiometer dimming varies the output using a variable resistor, or potentiometer, to set the dimming level. |
Non-Dimmable |
|
Environmental Rating
Environmental Rating
|
Non-weatherproof, Suitable for Dry Locations |
| Input Frequency Range | 50 - 60 Hz |
| Input Connection Type | 1-15P Plug |
| Input Voltage | 120 VAC |
|
IP Rating
IP Rating
|
IP20 |
| Output Connection Type | 5.5 mm x 2.1 mm DC Barrel |
| Output Voltage | 24 VDC |
| Warranty | 3 Year |
| Wire Gauge | 16 AWG |
| Part NO | Output Current |
Output Power
Output Power
A power supply's power consumption is measured in watts and refers to the maximum amount of power it is capable of delivering. For best results, choose a power supply that offers a minimum of 20% wattage overhead for your application. Wattage overhead ensures that your project will function correctly, extends the life of the power supply, and offers greater design flexibility by allowing for project expansion. |
|---|---|---|
| CPS-24V-12W | 500 mA | 12 Watts |
| CPS-24V-12W(White) | 500 mA | 12 Watts |
| CPS-24V-18W | 750 mA | 18 Watts |
| CPS-24V-18W(White) | 750 mA | 18 Watts |
| CPS-24V-24W | 1000 mA | 24 Watts |
| CPS-24V-24W(White) | 1000 mA | 24 Watts |
| CPS-24V-36W | 1500 mA | 36 Watts |
| CPS-24V-36W(White) | 1500 mA | 36 Watts |
| CPS-24V-48W | 2000 mA | 48 Watts |
| CPS-24V-48W(White) | 2000 mA | 48 Watts |
