FL3-RED LED Bulb Electronic Flasher

FL3-RED LED Bulb Electronic Flasher - 3 Pin American Flasher and Bracket - Red

Part Number
In Stock
$13.95 ea.
Free Shipping
On orders $300 and up within the contiguous U.S.
Read More

Item does not qualify


Electronic LED Flasher Relays have no minimum load-12VDC. Eliminates the need for load resistors, turn signals will flash at normal rate with or with out LED bulbs. Check out our Vehicle Bulb Finder.
2 Years
2 Years
Super Bright LEDs, Inc. offers a 2-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More


Part Number: FL3-RED-K
Case: Nylon pa6,6 + 15% Black Fastons 1, 2 & 5: Cu Zn
Case: Nylon pa6,6 + 15% Black Bracket: Ck 67 Hardness 490±525HV1 Phospated White
Technical Characteristics:
Nominal Voltage Un 12V
Operating Voltage Uop 10V...15V
Pull-in Voltage Ui ≤10V@Tp
Test Voltage Up 13V±0.2V
Test Temperature Tp +20°C±2°C
Switch Power An 0.1...30W @ Up
Max. Power Am MAX. 30W
Flashing Frequency f 80 TIMES/min±10%
Operating Temperature Top -40±C...+80±C
Storage Temperature Tsto +110°C/2h
Life Time 400h/Wn
Operates Silently Yes
Important Notes concerning LED Flashers: These flashers do not replace all flasher units. Before you order, please see the pin outs of our flashers in the More Info page and compare with the one you are replacing. Click the part numbers for complete specifications. You can usually find your flasher pin out printed right on your flasher. Failure to check this and installation in an incompatible vehicle can blow your fuse, destroy the flasher and void the flasher warranty. Some of these flashers operate silently, they do not make the familiar clicking sound when operating. One solution is to connect a common automotive relay to the output along with your LED bulbs.

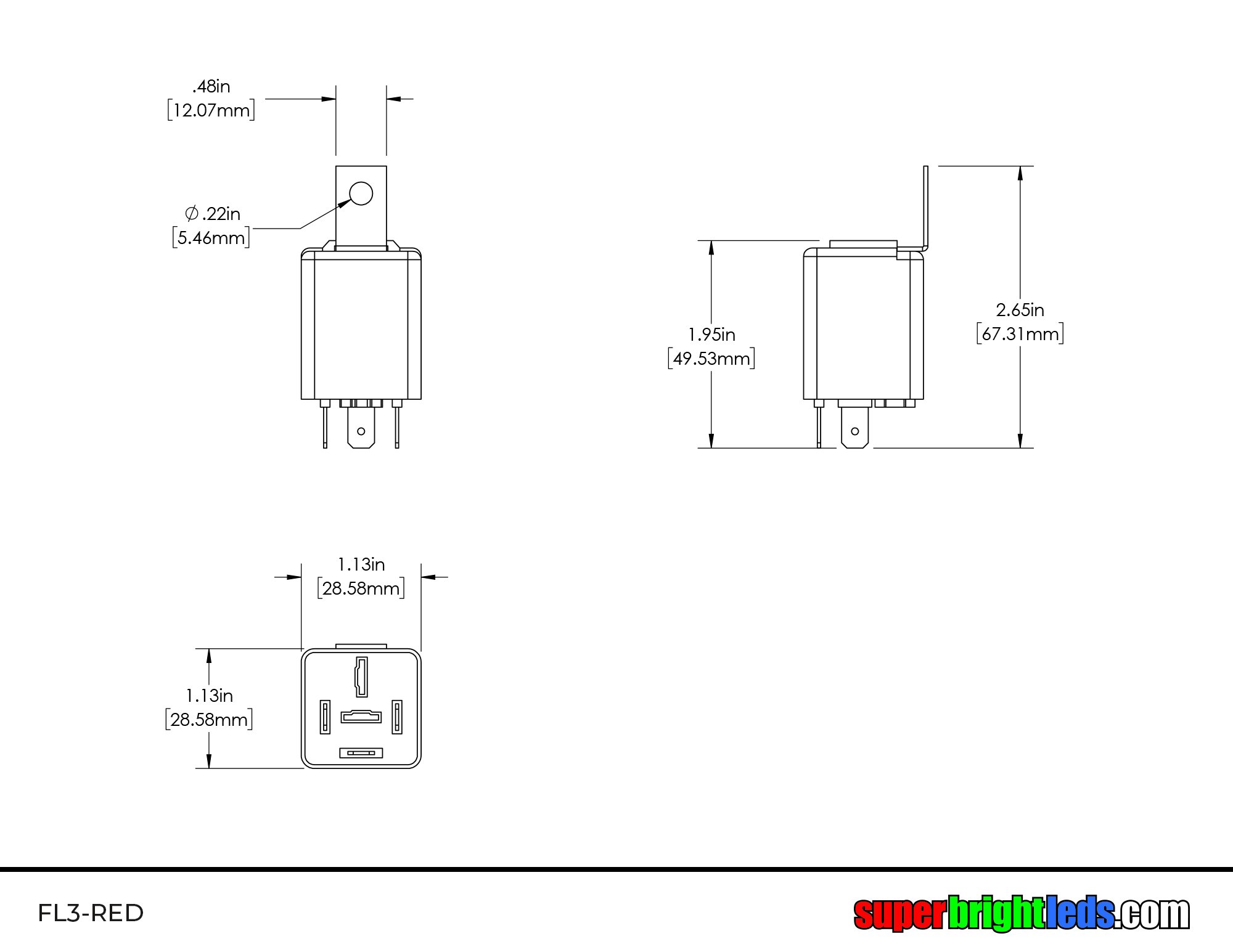

FL3-RED-K Technical Diagram:

Dimensions in millimeters (inches)
