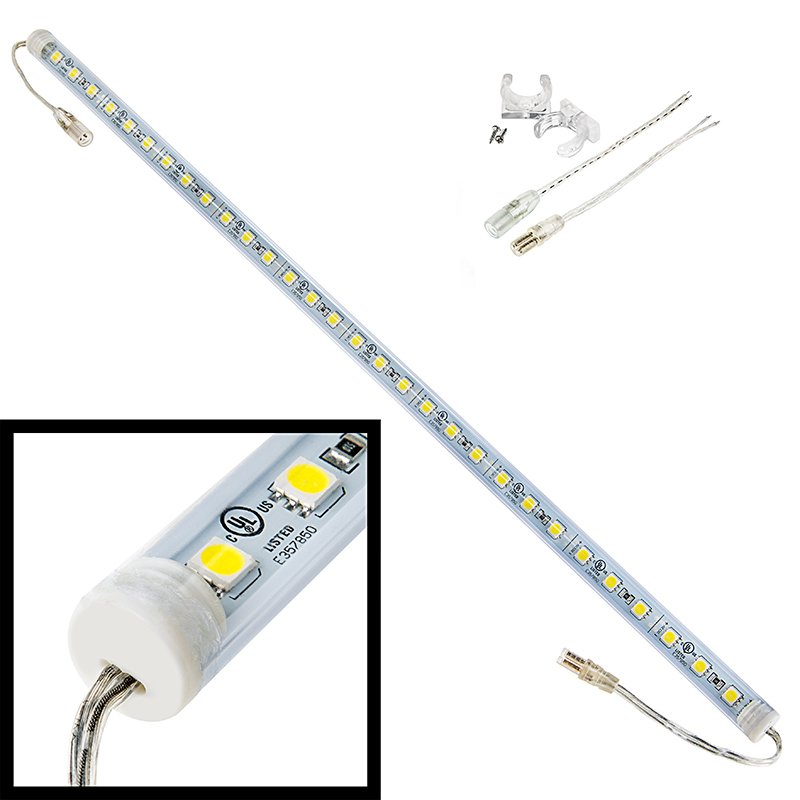

20in LED Tube Light with 30 LEDs - RV and Boat LED Lights - 573 Lumens


Features
- LED tube lights for versatile accent lighting
- Linkable design for custom applications
- IP65 waterproof and dustproof
- Simple surface mount install
Loading recommendations...
Overview
Product Details:
- DC barrel connections
- 30 5050 SMD LEDs
- IP65 rated
- 8-13.5 VDC input range
- 2-year warranty
- Accent Lighting
- Boats and Marine
- Courtesy Lighting
- Home Accent Lighting
- Horticulture Centers
- Motorcycle Accent Lighting
- Shelf Lighting
Specifications
Certifications/Compliance | ISA Approved, UL Listed |
---|---|
Finish | Silver |
Input Connection Type | 5.5 mm x 2.1 mm DC Barrel |
IP Rating
IP Rating
![]() |
IP65 |
LED Beam Angle
LED Beam Angle
Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.
![]() |
180° |
Length | 19.5 in. |
Operating Voltage | 8-13.5 VDC |
Output Connection Type | 5.5 mm x 2.1 mm DC Barrel |
Part NO |
Color Temperature
Color Temperature
![]() Correlated Color Temperature is the hue, or tint of white to expect from a light source and is measured in kelvin. Lower numbers give off a warmer white that is closer to candle light, and is good for relaxed and cozy spaces. Higher numbers give off a cooler white light that will appear more blueish. While values to the middle of the spectrum give off a more neutral or natural white light that is similar to daylight. |
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
Current Draw per Foot
Current Draw per Foot
Current Draw Per Foot is used to size power supplies, normally converted to watts per foot. This is equated using total wattage divided by number of linear feet. Current draw per foot is the amount of current consumed by an LED or LEDs in an electrical circuit per linear foot at a specific voltage, measured in milliamps (mA) or watts (W).
|
Efficacy | LED Color | LEDs per Segment | LED Lifetime | Wattage |
---|---|---|---|---|---|---|---|---|
LT-B30X3SMD | 620 mA | Blue | 7.4 Watts | |||||
LT-CW30X3SMD | 6000K | 650 mA | 412mA | 73 lm/W | Cool 6000K | 3 | 30000 Hours | 7.8 Watts |
