5" Grille and Surface Mount LED Strobe Light Head - 18W

5" Grille and Surface Mount LED Strobe Light Head - 18W

brand logo
Part Number


  • 17 strobe patterns
  • Synchronize strobe patterns with up to 3 additional lightheads
  • Meets or exceeds SAE J595 Class 1
  • Rugged construction resists vibration and rough road conditions
  • Available in single and models
  • 12-24 VDC
  • Lifetime warranty
View more details
In Stock
Only %1 left

Starting at $32.99 ea.
Free Shipping
On orders $300 and up within the contiguous U.S.
Read More

Item does not qualify

Frequently Bought Together

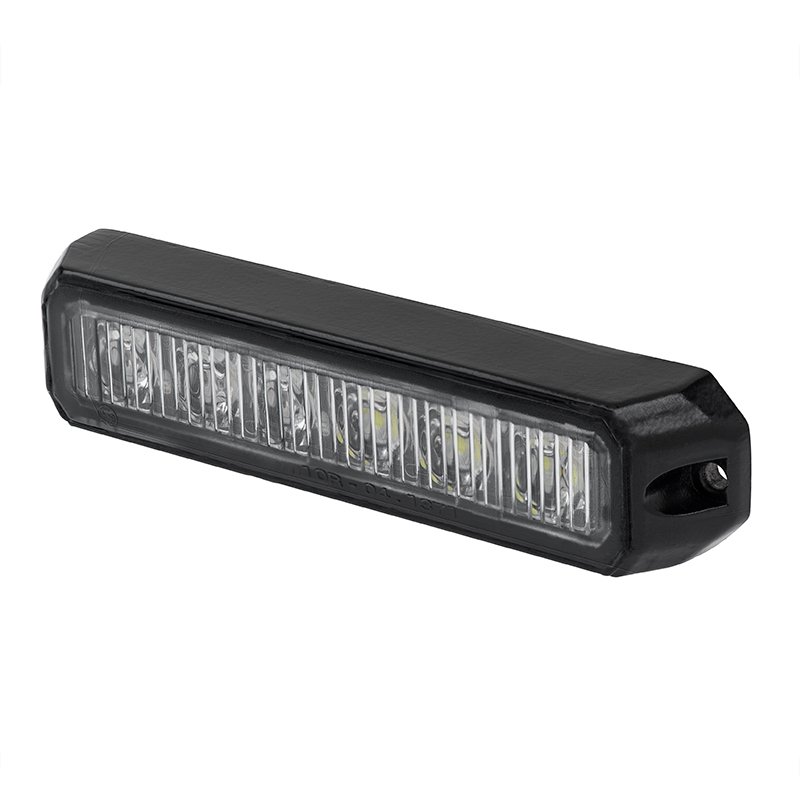

At 5" long, the P-STRB series Low Profile Grille and Surface Mount LED Light Head has an ultra-low profile to fit a wide range of vehicle applications. Directional LED optics and multiple flash patterns ensure high visibility on the road, even in rough weather conditions. Ideal for emergency, service, or industrial work vehicles, synchronize multiple warning lights together for simultaneous or alternating strobe patterns. High-quality materials include a die-cast aluminum flange and gasketed polycarbonate lens that resist moisture and vibration. Surface mount to nearly any desired location on a vehicle with included screws or an optional L-bracket. Also available in 12W option.

Product Details:

  • Size: 5.03" x 1.10" x .85"
  • Die-cast aluminum housing
  • Gasketed polycarbonate lens
  • IP67 rated waterproof
  • Control and select flash patterns with optional rocker switch
  • Compatible with optional L-bracket
  • 8" 5-wire pigtail - 18 AWG
  • 12-24 VDC
  • CE
  • Lifetime warranty


  • Emergency Vehicles
  • Farm Equipment
  • Heavy Machinery
  • Public Safety Vehicles
  • Roadside Assistance Vehicles
  • Tractors
  • Utility Vehicles
  • Waste Removal Vehicles
SAE J595 Class 1
SAE J595 Class 1
In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.
Super Bright LEDs, Inc. warrants that products carrying a lifetime warranty will be free from defects in the material and workmanship for the lifetime of the product. If Super Bright LEDs verifies that the defect was not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product with the same product. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
IP Ratings
SAE J595 provides design guidelines, test procedure references, and performance requirements for directional, single-color, flashing optical warning devices used on authorized emergency, maintenance, and service vehicles. It is intended to apply to, but not limited to, surface land vehicles. Class 1 is Four times more intense than SAE Class 2 lights and ten times more intense than SAE Class 3 lights. Applications - emergency response vehicles such as police, fire, and ambulance. >8100 candela


Ambient Operating Temperature -30~+60 °C (-22~+140 °F)
Beam Angle 30°
Brand Super Bright LEDs
Certifications/Compliance CE, SAE J595 Class 1
Current Draw 1 A @ 12 VDC
Finish Black
Input Connection Type Pigtail
Input Voltage 12-24 VDC
IP Rating IP67
Lens Color Clear
Mount Type Surface Mount
PC Rated No
Power Consumption 18 Watts
Product Materials Aluminum Trim, Polycarbonate Lens
Warranty Lifetime
Wire Gauge 18 AWG
Wire Length 8 in (20.3 cm)
Print Specifications
Swipe left to see additional specifications
Part NO LED Color Series
P-STRB-A18 Amber
P-STRB-A18-4PK Amber
P-STRB-AW18 Amber / White
P-STRB-AW18-4PK Amber / White
P-STRB-G18 Green
P-STRB-G18-4PK Green
P-STRB-GW18 Green / White
P-STRB-GW18-4PK Green / White
P-STRB-RB18 Red / Blue
P-STRB-RB18-4PK Red / Blue
P-STRB-W18 White
P-STRB-W18-4PK White
