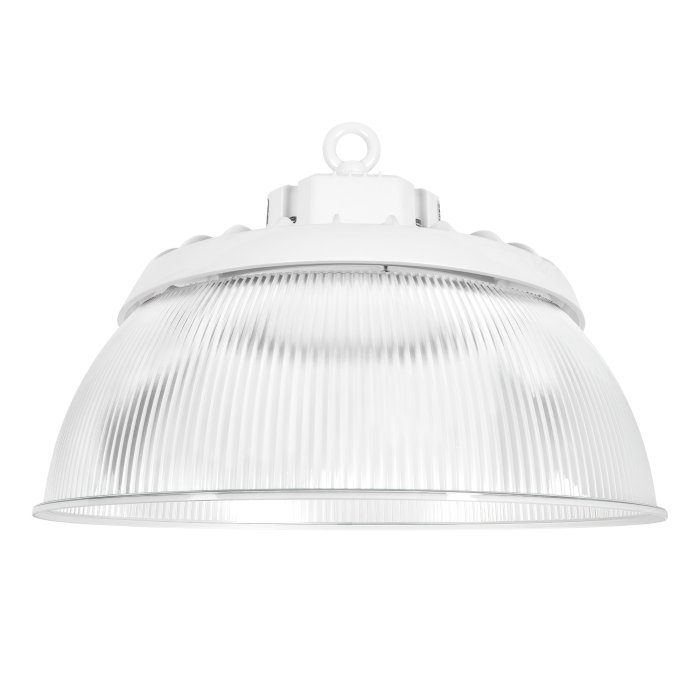

240W UFO LED High Bay With Reflector - Sensor Ready - 1,000W MH Equivalent - 37,200 Lumens - White Finish - 5000K - Optional Networked Lighting Controls
Features
- Sensor-ready port for optional motion sensor installation
- Polycarbonate reflector delivers uniform, glare-free light
- Networked Lighting Controls (NLC) optional
- 1,000W metal halide equivalent
- DLC 5.1 Premium
View more details
Loading recommendations...
Overview
Upgrade your UFO lights with the optional Keilton® EFS106-AUX PIR motion sensor featuring advanced Networked Lighting Controls (NLC). Using plug-and-play Keilton Network Controls with Bluetooth MESH connectivity, you can create a wireless network among your UFO lights, all controlled from your mobile device using the Keilton® App. Program your lighting system with the app to increase energy savings by wirelessly powering your lights on and off, managing fixture brightness, and setting schedules. Enjoy significant energy savings with optimized lighting management, reducing energy consumption.
Product Details:
- Networked Lighting Controls (NLC) available
- Die-cast aluminum housing with white powder-coated finish
- Clear polycarbonate lens
- IP65 waterproof, suitable for wet locations
- 0-10V Dimmable
- 120-277 VAC
- Certified by UL
- DLC 5.1 Premium
- 5-year warranty
- Distribution Centers
- Factories
- High Bays
- Manufacturing Plants
- Packaging Facilities
- Retail Shops
- Supermarkets
- Warehouses
- Workshops
NLC
NLC - This product meets the Design Lights Consortium (DLC) requirements for interior and exterior networked lighting control (NLC) systems. For more information, see the NLC Technical Requirements on the DLC site.
Specifications
Ambient Operating Temperature | -30~+50 °C (-22~+122 °F) |
---|---|
Beam Angle | 90° |
Brand | Super Bright LEDs |
CCT
CCT
|
5000K |
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
Certified by UL, DLC |
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
960 mA @ 277 VAC, 2.2 A @ 120 VAC |
Dimmable | Yes |
Dimmer Type
Dimmer Type
|
0-10V |
Efficacy | 155 lm/W |
Environmental Rating
Environmental Rating
|
Suitable for Wet Locations, Waterproof |
Equivalency | 1000 Watt Metal Halide |
Finish | White |
Input Connection Type | Pigtail |
Integrated Surge Protection | 6 kV (L-N), 6 kV (L/N-PE) |
IP Rating
IP Rating
|
IP65 |
LED Color | Cool White |
Rated Life (L70) | 50000 Hours |
Lens Type | Polycarbonate |
Lumens | 37200 Lumens |
Microwave Motion Sensor | Optional |
Operating Voltage | 120-277 VAC |
Power Factor | ≥0.9 |
Product Materials | Aluminum Housing, Polycarbonate Lens |
Product Weight | 7.4 lb (3.4 kg) |
Warranty | 5 Year |
Wattage | 240 Watts |
Wire Gauge | 18 AWG (L/N/G), 22 AWG (dimming) |
