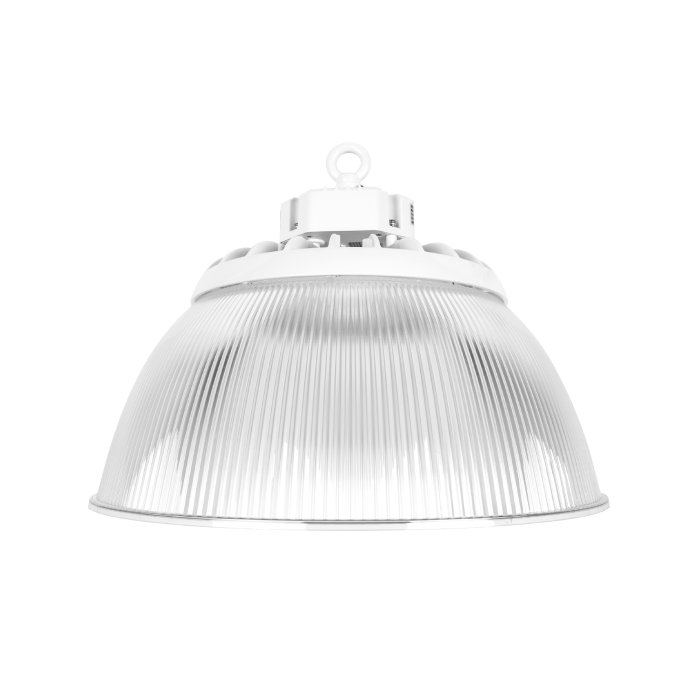

100W UFO LED High Bay With Reflector - Sensor Ready - 250W MH Equivalent - 15,300 Lumens - White Finish - 5000K - Optional Networked Lighting Controls

brand logo
Part Number: UDSR2-50K100-BT2WH-PR-x
Manufacturer Part Number:
Starting at
$97.98 ea.
In Stock
Request a Quote
box-open-solid
truck-fast-solid
On orders $300 and up within the contiguous U.S.
Item does not qualify

Features

  • Sensor-ready port for optional motion sensor installation
  • Polycarbonate reflector delivers uniform, glare-free light
  • Networked Lighting Controls (NLC) optional
  • 250W metal halide equivalent
  • DLC 5.1 Premium

See our full selection of USDR2 Sensor-Ready high bays.

View more details

Overview

The 100W UFO LED High Bay Light features an integrated sensor socket for effortless motion sensor installation. It is equivalent to a 250W metal halide, producing 15,300 lumens with a 90° beam. This high bay is IP65 waterproof and suitable for wet locations. Install easily with the included eye bolt and safety cable. Each fixture has a die-cast, corrosion-resistant housing, a white finish, and a clear lens. The included polycarbonate reflector assures uniform, glare-free light with a traditional form factor and is ideal for factories, warehouses, and other high-ceiling applications.

Upgrade your UFO lights with the optional Keilton® EFS106-AUX PIR motion sensor featuring advanced Networked Lighting Controls (NLC). Using plug-and-play Keilton Network Controls with Bluetooth MESH connectivity, you can create a wireless network among your UFO lights, all controlled from your mobile device using the Keilton® App. Program your lighting system with the app to increase energy savings by wirelessly powering your lights on and off, managing fixture brightness, and setting schedules. Enjoy significant energy savings with optimized lighting management, reducing energy consumption.

Product Details:

  • Networked Lighting Controls (NLC) available
  • Die-cast aluminum housing with white powder-coated finish
  • Clear polycarbonate lens
  • IP65 waterproof, suitable for wet locations
  • 0-10V Dimmable
  • 120-277 VAC
  • Certified by UL
  • DLC 5.1 Premium
  • 5-year warranty
Applications:
  • Distribution Centers
  • Factories
  • High Bays
  • Manufacturing Plants
  • Packaging Facilities
  • Retail Shops
  • Supermarkets
  • Warehouses
  • Workshops
Certified by UL
Certified by UL
Certified by UL
Certified by UL
DLC
DLC
DLC
DLC
5 Years
5 Years
5 Years
5 Years
0-10V Dimmable
0-10V Dimmable
0-10V Dimmable
0-10V Dimmable
IP65
IP65
IP65
IP65
Sensor Ready
Sensor Ready
Sensor Ready
Sensor Ready
NLC
NLC
NLC
NLC

Specifications

Ambient Operating Temperature -30~+50 °C (-22~+122 °F)
Beam Angle 90°
Brand Super Bright LEDs
CCT Click for more information about this specification 5000K
Certifications/Compliance Click for more information about this specification Certified by UL, DLC
Current Draw Click for more information about this specification 400 mA @ 277 VAC, 925 mA @ 120 VAC
Dimmable Yes
Dimmer Type Click for more information about this specification 0-10V
Efficacy 153 lm/W
Environmental Rating Click for more information about this specification Suitable for Wet Locations, Waterproof
Equivalency 250 W Metal Halide
Finish White
Input Connection Type Pigtail
Integrated Surge Protection 6 kV (L-N), 6 kV (L/N-PE)
IP Rating Click for more information about this specification IP65
LED Color Cool White
Rated Life (L70) 50000 Hours
Lens Type Polycarbonate
Lumens 15300 Lumens
Microwave Motion Sensor Optional
Operating Voltage 120-277 VAC
Power Factor ≥0.9
Product Materials Aluminum Housing, Polycarbonate Lens
Product Weight 5.9 lb (2.7 kg)
Warranty 5 Year
Wattage 100 Watts
Wire Gauge 18 AWG (L/N/G), 22 AWG (dimming)
