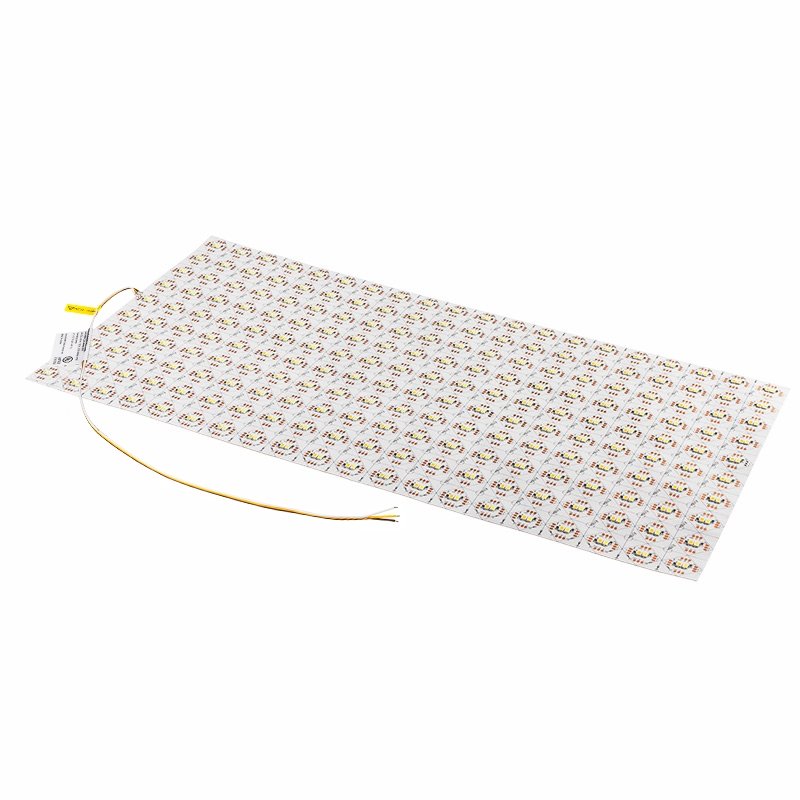

Tunable White LED Light Sheet - 20 x 10 Dual LED Segments - 24V - IP20

Tunable White LED Back Lighting Sheet - 18.9" x 9.5" - 24V - IP20 - Tunable White 2700K-6500K

Part Number
LLS-H80-C2A-60B01-24V

Features

  • Bendable & cuttable sheet of LEDs customizes to complex shapes
  • Tunable white from warm 2700K to cool 6500K
  • Adhesive backing peels off for easy application
  • 24 VDC
  • 5-year warranty, UL Listed
View more details
In Stock
$74.99 ea.

Free Shipping: On orders $300 and up. Flat rate shipping for other qualifying orders. Learn More⇒

Overview

Wrap corners and trim to fit a unique shape with LLS series LED Light Sheet. Cut along the horizontal, vertical, or diagonal black lines of the 20 x 10 rows to customize the flexible sheet. Even in signs or backlighting with low clearance, the high density of LED chips ensures even light distribution. Peel off the 3M™ adhesive backing, or fasten it with screws at the indicated spots to apply this light sheet. It can be tuned to emit the exact temperature of white needed for changing occasions.

Please refer to the specification sheet for cutting recommendations. Using only the pre-marked lines when cutting the sheet is essential to maintaining electrical contact.

Product Details:

  • Dimmable
  • Max Run with Class 2 wiring: 1.5 sheets
  • Dimensions: 18.9" x 9.5"
  • Enclosed fixture rated 36 mm
  • IP20 rated for dry conditions
  • 50000 hours L70 lifespan
  • 24 VDC
  • UL Listed
  • 5-year warranty
UL Listed
UL Listed
CE
CE
5 Years
5 Years
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Applications

  • Backlighting
  • Displays
  • Office Lighting
  • Sign Lighting
  • Light Box Lighting
  • Accent Lighting
  • Retail
  • Channel Letters
  • Commercial Lighting

Specifications

Ambient Operating Temperature -20~+45 °C (-4~+113 °F)
CCT Value 2700-6500K
Certifications/Compliance CE, UL Listed
Color Temperature Tunable White
CRI 80+
Current Draw 2.5 A
Dimensions 18.9in x 9.5in
Dimmable Yes
Efficacy 92 lm/W
Environmental Rating Non-weatherproof
Finish White
LED Beam Angle 120°
LED Type 2835 SMD
LEDs per Segment 2
Max Run (Class 2) 1.5 Sheets
Operating Voltage 24 VDC
Power Consumption 60 Watts
Rated Life (L70) 50000 Hours
Segment Size 0.95 in. x 0.95 in. (24 mm x 24 mm)
