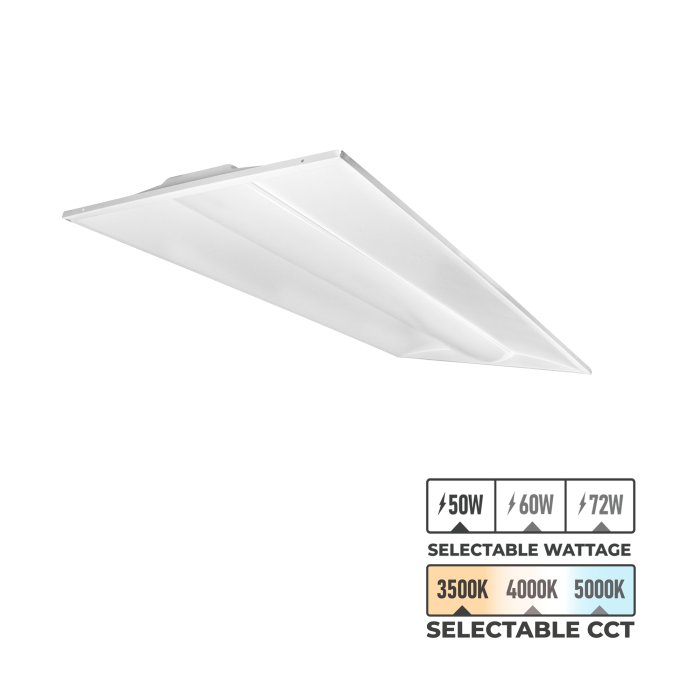

2x4 Recessed LED Troffer Light - Selectable Wattage 50W / 60W / 72W - Selectable CCT 3500K / 4000K / 5000K - Up To 9,000 Lumens - White
Part Number:
TLFD-V1-SW3C24-872
Manufacturer Part Number:
$69.99
ea.
Was
In Stock
Features
- Field-selectable wattage: 50W, 60W, 72W
- Field-selectable CCT: 3500K / 4000K / 5000K
- Installs directly into T-grid ceilings
- Equivalent to four 4 ft, 32W T8 tubes
- DLC 5.1 Premium
Related Products
Overview
The 2x4 LED Recessed Troffer Light has a durable steel construction and polycarbonate lens. It is designed with a low profile and a lens set in the center of the fixture, so it installs easily in standard T-grid drop ceilings. The light has both a field-selectable wattage and CCT using built-in switches during installation. One 2x4 lay-in LED recessed troffer light fixture is equivalent to four 4 ft, 32W T8 tubes, and each light provides a wide 110-degree beam angle that is 0-10V dimmable. These energy-efficient troffers are ideal for use in offices, schools, or hospitals.
Product Details:
- White steel housing with center-basket polycarbonate lens
- 110-degree beam angle
- 0-10V dimmable
- 120-277 VAC
- ETL Listed
- DLC 5.1 Premium
- 5-year warranty
Documents
TLFD-V1 User Manual
TLFD-V1-SW3C24-872 40K 50W IES File Applications:
- Basements
- Commercial Suspended Grid Ceilings
- Hospitals
- Offices
- Schools
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
A product that bears an ETL-Certified label has been evaluated by a Nationally Recognized Testing Laboratory (NRTL) and meets national product safety standards. An ETL certification is accepted in the U.S. and in Canada.
This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.
Need help?
Use our Lighting Layout Tool to see how this product illuminates your space.
Specifications
| Ambient Operating Temperature | -20 to 45 °C (-4 to 113 °F) |
|---|---|
| Beam Angle | 110° |
| Brand | Super Bright LEDs |
|
CCT
CCT
|
3500K, 4000K, 5000K |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
DLC Premium, ETL Listed |
|
CRI
CRI
|
80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
250/420/600 mA @ 120 VAC, 180/220/260 mA @ 277 VAC |
| Dimensions | 2ft x 4ft |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
0-10V |
| Efficacy | 125 lm/W |
|
Environmental Rating
Environmental Rating
|
Non-weatherproof, Suitable for Damp Locations |
| Equivalency | 3-lamp 32W T8 Tubes |
| Finish | White |
| Input Connection Type | Pigtail |
|
IP Rating
IP Rating
|
IP20 |
| LED Color | Warm White, Natural White, Cool White, Selectable CCT |
| Rated Life (L70) | 50000 Hours |
| Lumens | 6250 Lumens, 7500 Lumens, 9000 Lumens |
| Mount Type | Drop Ceiling |
| Operating Voltage | 120-277 VAC |
| Product Materials | Polycarbonate Lens, Steel Housing |
| Product Weight | 10.4 lb (4.7 kg) |
| Warranty | 5 Year |
| Wattage | 50 Watts, 60 Watts, 72 Watts |
