500W LED Stadium Light with Yoke Mount and Reflector - 73,500 Lumens - 200-480V - 1000W MH Equivalent - 5000K

500W LED Stadium Light with Yoke Mount and Reflector - 73,500 Lumens - 200-480V - 1000W MH Equivalent - 5000K

brand logo
Part Number
SLD-S1-50K500BSxH-BLC20SPY

Features

  • NEMA distribution pattern for long-distance, small-angle projection
  • Replaces 1000W MH fixtures with a 147 lm/W efficacy
  • Included reflector reduces uplight
  • Preinstalled yoke mount with 170° adjustment
View more details
In Stock
Only %1 left

$639.99 ea.
Free Shipping
On orders $300 and up within the contiguous U.S.
Read More

Item does not qualify

Frequently Bought Together

Overview

Description

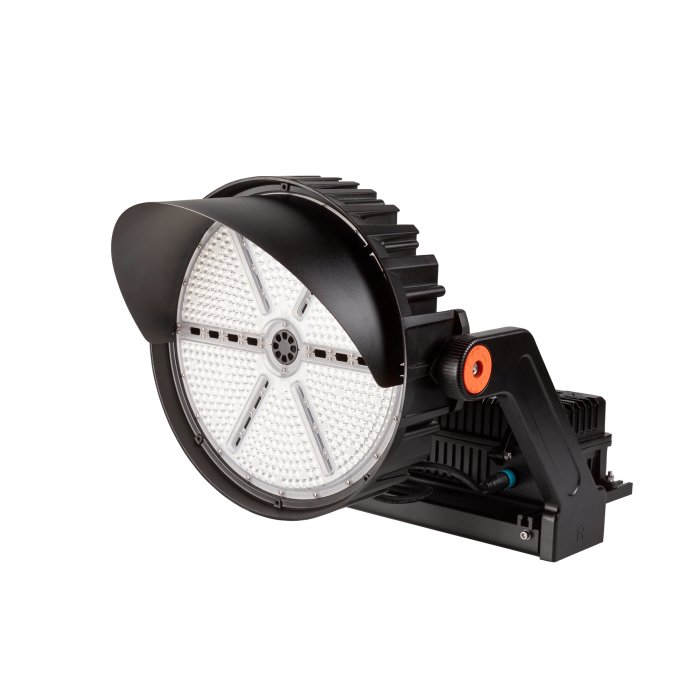

The 500W LED Stadium Light with Yoke Mount and Reflector is designed to deliver high-powered lighting for high-pole installations such as sports stadiums, shipyards, and airports. The stadium light has a NEMA 4x4, NEMA 5x5, or NEMA 6x6 light distribution pattern for long-distance, small-angle projection- the distribution patterns vary by beam angle. The fixture is available in 20°, 30°, 40°, or 60° beam angles with secondary optics for precise light output. An included reflector helps reduce unnecessary uplighting and light pollution. Constructed with die-cast aluminum body and polycarbonate lenses, the light is resistant to impact and corrosion. Integrated heat sinks provide thermal regulation to prolong the fixture’s lifetime. Mount the fixture using the pre-installed yoke mount or use the optional slipfitter mount (sold separately).

NOTE: Due to the weight of this product, do not install on wooden poles or older poles.

Product Details:

  • Die-cast aluminum housing; polycarbonate lens with secondary optics
  • Steel reflector and yoke mount
  • IP65 waterproof rating
  • EPA: 2.3 ft²
  • Surge Protection: L/N-PE is 10kV, L-N is 6kV
  • 200-480 VAC
  • 5-year warranty

Applications

  • Arenas
  • Auditoriums
  • Sports Complexes
  • Stadiums
  • Stage & Theaters
Certified by UL
Certified by UL
5 Years
5 Years
0-10V Dimmable
0-10V Dimmable
IP66
IP66
1000 W MH Equivalent
1000 W MH Equivalent
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
This product has been certified by Underwriter Laboratories to their engineering and safety standards.
IP Ratings

Specifications

Ambient Operating Temperature -40~+45 °C (-40~+113 °F)
Brand Super Bright LEDs
BUG Rating B5-U0-G2
CCT Value 5000K
Certifications/Compliance Certified by UL
Current Draw 2.6 A @ 208 VAC, 1.2 A @ 480 VAC
Dimmable Yes
Dimming Type 0-10V
Efficacy 147 lm/W
Environmental Rating Suitable for Wet Locations, Waterproof
EPA Rated 2.3 ft²
Equivalency 1000 Watt Metal-Halide
Finish Black
Input Connection Type Pigtail
Integrated Surge Protection 10 kV (L/N-PE), 6 kV (L-N)
Intensity 73500 Lumens
IP Rating IP65
LED Color Cool White
Rated Life (L70) 50000 Hours
Mount Type Yoke Bracket
Operating Voltage 200-480 VAC
Power Consumption 500 Watts
Power Factor ≥0.9
Product Materials Aluminum Housing, Polycarbonate Lens
Product Weight 32.9 lb (14.9 kg)
Shipping Exclusions and Details Excluded From Free Shipping
UL File Number E366643
Warranty 5 Year
Print Specifications
Swipe left to see additional specifications
Part NO Beam Angle Distribution Type
SLD-S1-50K500BS2H-BLC20SPY 20° NEMA 4x4
SLD-S1-50K500BS3H-BLC20SPY 30° NEMA 4x4
SLD-S1-50K500BS4H-BLC20SPY 40° NEMA 5x5
SLD-S1-50K500BS6H-BLC20SPY 60° NEMA 6x6
