Single Color LED Module - Square Constant Current Module with 4 SMD LEDs - 75 Lumens/Module - 7500K - 25-Pack / 50-Pack / 100-Pack
Part Number:
LSMCC-x4X3-LP
Manufacturer Part Number:
$49.99
ea.
Was
Similar Products Available Today
Features
- 120° beam angle
- 3M™ adhesive backing
- Max run of 50 modules
- UL Recognized Component
Ask About This Product
Get instant AI-powered answers
Try asking:
Most Popular Compatible Products
Overview

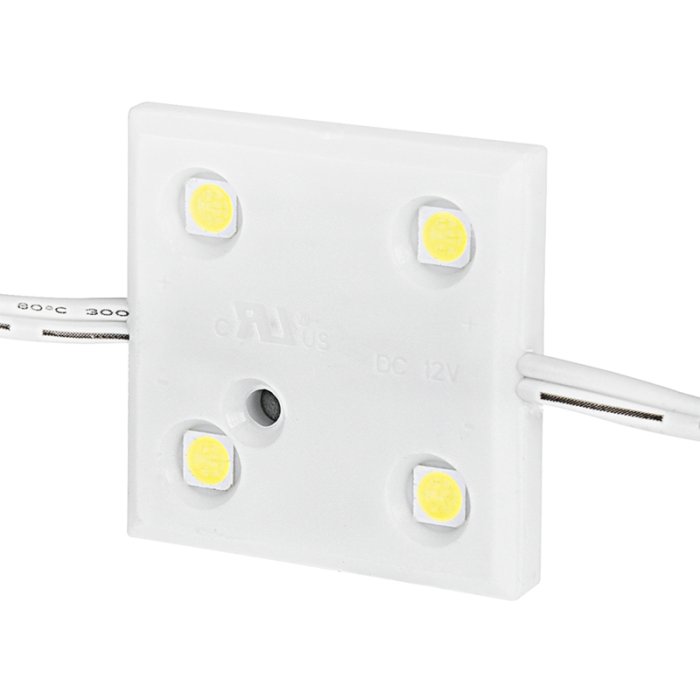

These single-color LED light modules provide consistent illumination for channel letters, sign lighting, under-cabinet lighting, store window lighting, and display case lighting. Modules are available in packs of 25, 50, or 100-packs, stranded together upon purchase. Strands are wired together with 3.35" spacing between each module. The 20-gauge wire is polarity sensitive; black striped wire is negative, and white wire is positive. Each LED module has 4 LEDs and emits up to 75 lumens. LEDs emit a wide 120° beam pattern that is best suited for illuminating up to 9" wide channel letters that are as shallow as 3". The low-profile PVC module is injection molded with a 0.13" screw hole for mounting in extreme cold or heat. Double-sided 3M adhesive foam tape is also included for secure mounting. The weatherproof module is constant-current driven with 12V DC operation and is designed to last 50,000 hours.
Product Details:
- Each square module measures 1.52”x1.52”
- Constant current driver maintains brightness
- Wire pigtail connections
- IP67 waterproof
- 12 VDC
- 5-year warranty
Documents
LSMCC Specification Sheet Dimensional Drawings
Applications:
- Accent Lighting
- Backlighting
- Channel Letters
- Displays
- Home Interiors
- OEM Components
- Retrofit Lighting
- Sign Lighting
- Stage & Theaters
- Trade Shows
- Under-Cabinets
- Windows
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Products that have an International Solid-State Lighting Alliance (ISA) label are approved as quality, energy-efficient LED lights that help to create a sustainable society.
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Recognized label ensures that a product component, such as a power supply or LED light strip, has been tested and verified as safe to use in a UL-Listed product. UL-Listed product samples are tested by UL and meet their Standards for Safety requirements.
Ask About This Product
Get instant AI-powered answers
Try asking:
Products Mentioned
Press Enter to send, Shift+Enter for new line
Responses are AI-generated from product documentation. For confirmation or more information, contact Super Bright LEDs customer service.
Conversations are recorded for quality assurance. More information
Ask About This Product
Get instant AI-powered answers
Try asking:
Products Mentioned
Press Enter to send, Shift+Enter for new line
Responses are AI-generated from product documentation. For confirmation or more information, contact Super Bright LEDs customer service.
Conversations are recorded for quality assurance. More information
Ask About This Product
Get instant AI-powered answers
Try asking:
Specifications
| Beam Angle | 120° |
|---|---|
| Connection Type | Pigtail |
| Constant Current | Yes |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
70 mA |
| Current Draw Per Module | 70mA |
| LED Lifetime | 50000 Hours |
| Lumens Per Module | 75 lm/module |
|
Max Run (# of Modules)
Max Run (# of Modules)
Max Run (or maximum run) is used to specify the total number of modules that can run in series without experiencing dimming due to voltage drop. When Max Run is reached, power wires for additional devices must be 'home run' directly back to the power source, starting a new run.
|
50 |
| Operating Temperature | -25 to 60 °C (-13 to 140 °F) |
| Standards And Certifications | ISA Approved, UL Recognized |
| Voltage | 12 VDC |
