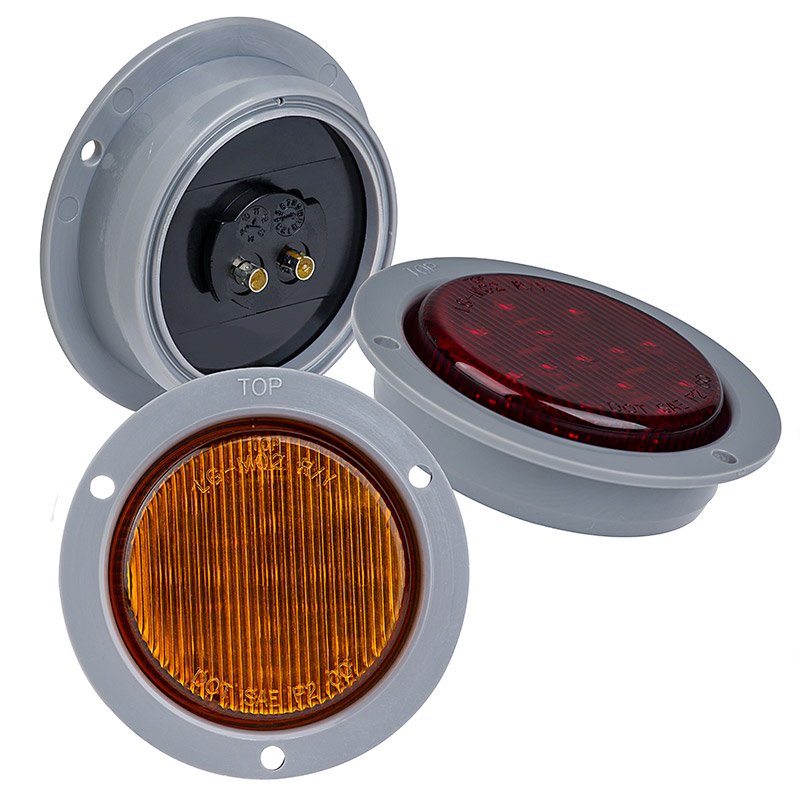

LED Clearance or Side Marker Light with Flange - 2-1/2" Round - 13 LEDs
Part Number
M4F-x13
Overview
Description
Designed to accept industry standard 2-pin plugs, this 2-1/2” round LED light meets DOT FMVSS 108 requirements for use as side lights and clearance lights. Mounts flush with compatible grommet, flange, or grommet (sold separately). Each light boasts 13 high-flux LEDs that operate with in a wide 9-14.8V DC range and consumes 90% less energy than incandescent lamps. Sonically sealed polycarbonate lens and weatherproof housing. The truck/trailer lights are available in white, red, and amber. Lifetime warranty on all truck/trailer lights. Dimensions: 3.36”(8.54cm) x 1.05”(2.675cm) x 3.36”(8.54cm)
In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.
The Department of Transportation (DOT) sets strict guidelines in respect to external vehicle lighting that must be followed in order for a light to be street legal. Vehicle fixtures—such as headlights and taillights—that have a DOT compliance mark are legal, safe, and considered to provide suitable illumination for street use when properly installed.
Super Bright LEDs, Inc. warrants that products carrying a lifetime warranty will be free from defects in the material and workmanship for the lifetime of the product. If Super Bright LEDs verifies that the defect was not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product with the same product. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More
Specifications
| Current Draw | 130 mA |
|---|---|
| DOT Standard | FMVSS 108 |
| IP Rating | IP65 |
| Mount Type | Flange |
| Standards And Certifications | CE, DOT Compliant |
| Voltage | 9-14.8 VDC |
| PC Rated | No |
.
