Discontinued
We have discontinued this product permanently. Please find suggested replacement products from below section.

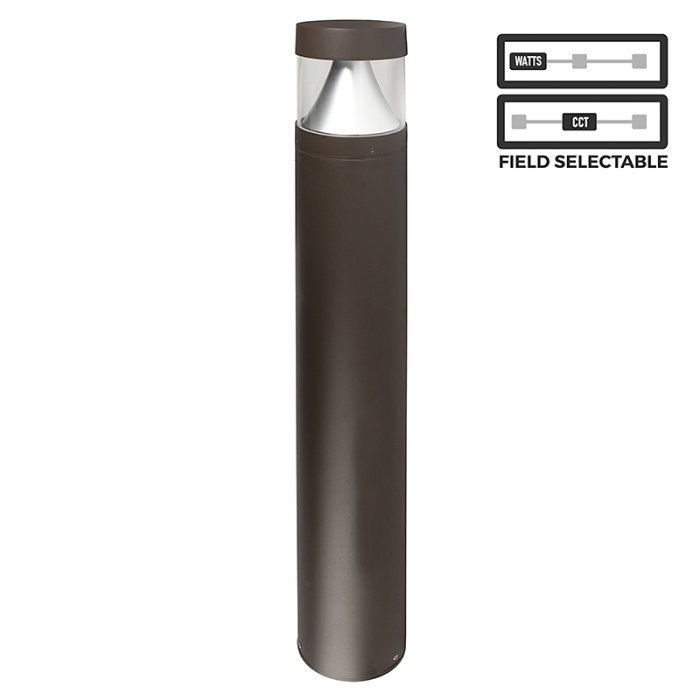

Round LED Bollard with Selectable Wattage and CCT - Bronze Finish - Cone Reflector - 12W / 16W / 22W - 3000K / 4000K / 5000K
Part Number:
BLRB-SW3B22S-742
Manufacturer Part Number:
Discontinued
Features
- 3000K, 4000K, 5000K selectable CCT
- 12W, 16W, 22W selectable wattage
- Frosted cone reflector directs 360° downward light
- Also available in square form factor
- 5 year warranty
Related Products
Overview
Round selectable CCT and wattage bollard adds safety to commercial locations such as building entryways, pathways, and perimeters. with its frosted cone reflector, the bollard directs 360° of downward light preventing pedestrian glare. Featuring 3 selectable color temperatures (3000K, 4000K, 5000K) and 3 selectable wattages (12W, 16W, 22W), giving you the option to customize your lighting needs for a wide range of applications. with better efficacy and reliability than metal halides, the integrated LEDs eliminate the hassle of replacing bulbs and ballasts in traditional bollards.
Product Details:
- IP65 rated, suitable for wet locations
- Bronze powder coated aluminum housing and polycarbonate lens
- Replacement for 50W Metal Halides
- Optional: 6.7” masonry “L” hook anchor bolts and template plate for new installations
- 120–277 VAC input
- 50,000 hours (L70) lifespan
- Certified by UL
- 5 year warranty
Documents
BLRB/BLSB User Manual Applications:
- Area Lighting
- Building Entryways
- Commercial And Industrial Exterior
- Commercial Buildings
- Parks
- Pathways
- Pedestrian Plazas
- Pedestrian Safety
- Walkways
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Specifications
| Ambient Operating Temperature | -40 to 50 °C (-40 to 122 °F) |
|---|---|
| Beam Angle | 360° x 22.5° |
| Brand | Super Bright LEDs |
|
CCT
CCT
|
3000K, 4000K, 5000K |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
Certified by UL |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
100/133/183 mA @ 120 VAC, 43/58/79 mA @ 277 VAC |
| Dimmable | Yes |
|
Environmental Rating
Environmental Rating
|
Suitable for Wet Locations, Waterproof |
| Equivalency | 50 Watt Metal Halide |
| Finish | Bronze |
| Height | 42 in |
| Impact Resistance | IK10 |
| Input Connection Type | Pigtail |
| Integrated Surge Protection | 10 kV |
|
IP Rating
IP Rating
|
IP65 |
| LED Color | Selectable CCT |
| Rated Life (L70) | 50000 Hours |
| Lumens | 1560 Lumens, 2080 Lumens, 2860 Lumens |
| Operating Voltage | 120-277 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Aluminum, Polycarbonate |
| Product Weight | 11.6 lb (5.3 kg) |
| UL File Number | E366643 |
| Warranty | 5 Year |
| Wattage | 12 Watts, 16 Watts, 22 Watts |
