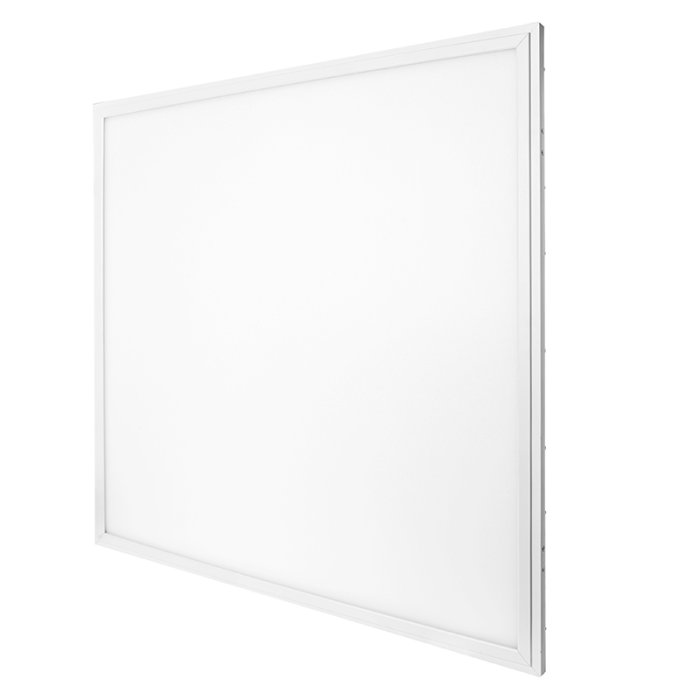

Name: RGB LED Light Panel - 36W Dimmable Even-Glow® Light Fixture - 24 VDC - 595 x 595mm - RGB
Brand: Super Bright LEDs
SKU: LPW-RGB6060-36
Price: 129.99 USD
Availability: InStock
Rating: 4.5 (2 reviews)

Overview

LPW series RGB LED Panel Light is a versatile, dynamic lighting solution for entertainment venues, trade shows, light shows, and more. Even-Glow® technology and an optical diffuser evenly spread the colorful illumination across the surface without visible bulbs or hotspots. Use a controller to select from various single-color and dynamic color-changing modes, customizing speed and brightness. Compatible with several different optional RGB controllers, control the panel(s) from a wall switch, remote, or pair with Bluetooth to operate from the convenience of a smartphone. The ultra-thin body is constructed of sturdy aluminum and finished in white.

Product Details:

Also available in a rectangular model
Mount with a Suspension Kit (sold separately)
24 VDC
Rated IP40 for dry locations
50000 hours L70b lifespan
2 year warranty

Super Bright LEDs, Inc. offers a 2-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Specifications

Beam Angle	160°
Brand	Super Bright LEDs
Current Draw	1.07A (1070mA)
Dimensions	2ft x 2ft
Dimmable	Yes
Dimming Type TRIAC Dimming: Triode for alternating current (TRIAC) dimming is used to control high-voltage dimmable power supplies such as Magnitude Dimmable Power Supplies. These dimmable power supplies work by varying the power on the AC input side of the power supply by means of a TRIAC dimmer. This change in power on the AC input side will vary the voltage on the DC output side and control the intensity of the LEDs. TRIAC dimmers are common hardware store and household dimmers, which include brand names such as Lutron and Leviton. Pulse-Width Modulation Dimming: Pulse-width modulation (PWM) dimming can be used to control dimmable power supplies such as Mean Well HLG Series and Mean Well LPF Series. This type of dimming control adjusts the output current based on the duty cycle. As the duty cycle increases, current will increase and the LEDs will be brighter. Conversely, if the duty cycle decreases, the current will decrease and the LEDs will be dimmer. Pulse-width modulation for these drivers is based on a 10V signal level with a frequency between 100Hz~3KHz. The MCBRF-4A or MLD-5A are compatible for this application. Resistive Dimming: Resistive dimming can be used to control dimmable power supplies such as Mean Well HLG Series. The resistance can be fixed or variable. If a fixed level of dimming is required, a simple resistor is all that is needed to dim the LEDs to a particular level. If a varying dimmable level is desired, a potentiometer can serve this purpose. By changing the resistance value of the potentiometer, the output current of the power supply changes, and the LED intensity changes. Controlling a single power supply will require a 100K ohm potentiometer for 100% intensity (100K ohm) to approximately 10% intensity (10K ohm) based on where the wiper is positioned. 1-10V Dimming: 1-10V dimming can be used to control dimmable power supplies such as 12V Mean Well HLG-40~240 Series or 24V Mean Well HLG-40~240 Series. This type of dimming control is an older style for compatible dimmable power supplies and is being replaced with 0-10V dimmer control. 1-10V dimming control works by varying the voltage from 1-10 VDC. A 10-volt signal on the dimming wire will allow for maximum current to flow to the LEDs for maximum intensity. A 1-volt signal on the dimming wire allows 10% of the current to flow from the power supply, which generates approximately 10% of the maximum intensity for the LEDs. 0-10V Dimming: 0-10V dimming can be used to control dimmable power supplies such as 12V Mean Well HLG-600 Series or 24V Mean Well HLG-600 Series. This type of dimming control is the most popular and newest style for compatible dimmable power supplies. 0-10V dimming control works by varying the voltage from 0-10 VDC. A 10-volt signal on the dimming wire will allow for maximum current to flow to the LEDs for maximum intensity. A 0.6-volt signal on the dimming wires allows 6% of the current to flow from the power supply dimming the LEDs to approximately 6% of full intensity. 0-10V dimmers can be found here.	0-10V
Finish	White
IP Rating	IP40
Color Options	RGB
LED Lifetime	50000 Hours
Lumen	675 Lumen
Operating Temperature	-20~+50 °C (-4~+122 °F)
Power Consumption	22.8 Watts
Voltage	24 VDC

Print Specifications

Current Draw per Channel

Color	Milliamps
Red	360 mA (0.36 A)
Green	340 mA (0.34 A)
Blue	370 mA (0.37 A)
White (All Channels)	1070 mA (1.07 A)

Accessories & Power Supplies

All Accessories

24V Power Supplies

Controllers

Installation Supplies

Mounting

Wiring

Accessories Links

Accessory Category

Accessory Type:

$0.09 ea.

22-16 AWG Grey 3M Twist-On Wire Connector Part Number: WN-2216
In stock

Use these 3M 22-16 AWG grey wire connector for closed-end connections and secure splices. The UL-Listed twist-on wire connectors tighten with out ratcheting and feature a deep skirt to prevent bare wire from being exposed.
$0.29 ea.

28-12 GA Lever-Lock Quick Connect Terminal Blocks Part Number: LQC-x
In stock

Lever-Lock Quick Connect Terminal Block for 28 to 12 Gauge wire. Alternative solution for traditional wire nuts to create quicker and more secure wire connections. Insert stripped wires and close the lever to secure wire and create a common connection between the other terminals, no tools required. Available with 2, 3 or 5 conductor terminals. Price for each.
$29.99 ea.

3M-FTS Double-Sided Foam Tape Strip - Double-Sided Foam Tape Strip Part Number: 3M 4492
In stock

High performance 3M Double Coated Polyethylene Foam Tape Strips - adhesive on both sides for attaching light bars and other LED products to a wide variety of surfaces. 72 yard reel, which measures 1/4in wide x 216ft long.

$19.99 ea.

2x2 Surface Mount Kit for LED Panel Lights Part Number: LPW-RGB6060-SMK
In stock

Surface Mount kit snaps securely together tool-free. It provides a sturdy, seamless installation option for surface mounting LED Panel Lights.
$19.99 ea.

Suspension Kit for LED Panel Lights - Mounting Hardware Part Number: LP-HKO-2
In stock

Use this suspension kit to hang your LED panel lights. The kit includes 4 adjustable 3-1/4' stainless steel braided cables and mounting hardware.

$0.29 per Foot

18 Gauge Wire - Two Conductor Power Wire - 18 AWG Power Wire Part Number: WP18-2
In stock

Power Wire for low voltage installations. Parallel bonded two conductor 18 gauge 1x16 stranded wire. Price per foot.
$0.85 per Foot

22 Gauge Wire - Four Conductor RGB Power Wire - RGB-4Wire Part Number: RGB-4Wire
In stock

22 Gauge Wire - Four Conductor RGB Power Wire. Use for connecting and lengthening segments of RGB LED Light strips and RGB Controllers. Price per foot.
