LED Clearance or Side Marker Light - 3-3/4" Rectangle - 12 LEDs
Part Number:
M1-x12
Manufacturer Part Number:
Starting at
$6.99
ea.
Starting at
Was
In Stock
Features
- 3-3/4" rectangular light for clearance or side marker functions
- DOT Compliant
- IP65-rated weatherproof sealed construction
- Simple surface mount install
- 1-Wire hardwired design
- Lifetime Warranty
Related Products
Overview

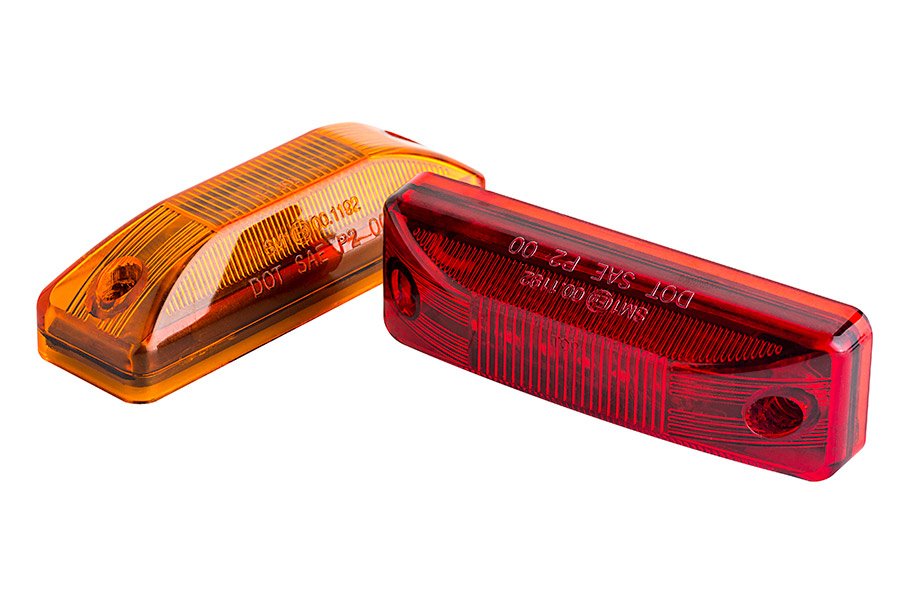

This 3-3/4” rectangle LED meets DOT FMVSS 108 requirements for use as side lights and clearance lights. The light surface mounts and features sealed mounting, a grounded mounting hole, and an attached 4-1/2” positive wire. Each light boasts 12 high-flux LEDs that operate within a wide 9-14.8V DC range and consume 90% less energy than incandescent lamps. Sonically sealed polycarbonate lens and weatherproof housing. The truck/trailer lights are available in red and amber. Lifetime warranty on all truck/trailer lights. Dimensions: 3.77”(9.569cm) x 0.94”(2.4cm) x 1.22”(3.1cm).
Product Details:
- Sonically sealed polycarbonate lens
- IP65 rated
- 9 - 14.8 VDC range
- DOT Compliant
- Lifetime Warranty
Super Bright LEDs, Inc. warrants that products carrying a lifetime warranty will be free from defects in the material and workmanship for the lifetime of the product. If Super Bright LEDs verifies that the defect was not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product with the same product. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.
The Department of Transportation (DOT) sets strict guidelines in respect to external vehicle lighting that must be followed in order for a light to be street legal. Vehicle fixtures—such as headlights and taillights—that have a DOT compliance mark are legal, safe, and considered to provide suitable illumination for street use when properly installed.
Specifications
| Brand | Super Bright LEDs |
|---|---|
| Certifications/Compliance | CE, DOT Compliant |
|
Current Draw
Current Draw
The current draw of your lights is calculated using the amount of power your light needs (wattage) and system voltage using the following formula: Watts/Volts = amps or W/V = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED bulbs with the correct amperage ensures proper operation and prevents damage to your electrical system or the bulbs. See your vehicle owner's manual for amperage, wattage, and voltage information, or match the information on your existing bulbs. |
100 mA |
| DOT Standard | FMVSS 108 |
|
FMVSS Code
FMVSS Code
|
P2 |
| Input Connection Type | Pigtail |
| Input Voltage | 9-14.8 VDC |
|
IP Rating
IP Rating
|
IP65 |
| LED Quantity | 12 |
| Mount Type | Surface Mount |
| PC Rating | P2 |
| Warranty | Lifetime |
| Wire Length | 4.5 in. |
Screw Terminal Grounding
The M1-x12 must be grounded to a metal surface via the screw terminal marked as ground on the back of the product.
If the mounting surface of your application is a nonmetal we recommend you ground the light using a NRT-2218 Ring Terminal and wire.
