Step-Down DC/DC Voltage Converter - 36/48V (36-60V) to 12V Power Reducer - 10 or 20 Amp
Part Number:
LVC-48V12-xA
Manufacturer Part Number:
Starting at
$21.99
ea.
Starting at
Was
In Stock
Features
- Steps down power from 36-60 VDC to 12 VDC
- Rated for 10 or 20 amps
- Waterproof die cast aluminum housing with mounting holes
Related Products
Overview

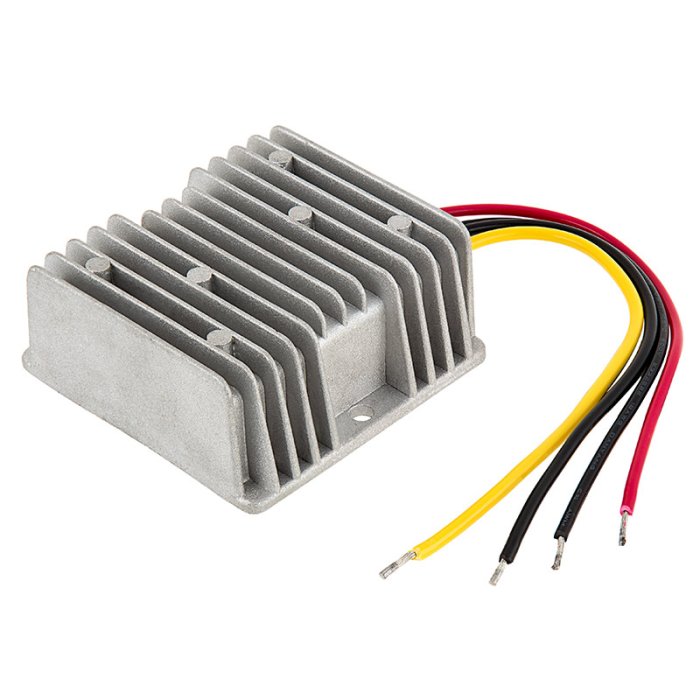

This DC-to-DC voltage converter allows you to use 12V LED lights with your vehicle's 36V or 48V DC system (36-60V). The waterproof converter is rated for 10 or 20 amps and is constructed of durable die cast aluminum with 7" wire leads. Surface mount the converter with screw holes on both sides. Use this power reducer for commercial, industrial, or military vehicles as well as forklifts, tow tractors, golf carts, and more.
Product Details:
- Rated for 10 or 20 amps
- Suitable for commercial, industrial, or military vehicles
- Waterproof
- Screw holes on both sides
- 2-Year warranty
Documents
LVC-48V12-xA Specification Sheet
Super Bright LEDs, Inc. offers a 2-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.
Specifications
| Ambient Operating Temperature | -40 to 75 °C (-40 to 167 °F) |
|---|---|
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application.The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here. |
CE |
|
Environmental Rating
Environmental Rating
|
Waterproof |
| Input Connection Type | Pigtail |
| Input Voltage | 36-60 VDC |
|
IP Rating
IP Rating
|
IP68 |
| Output Connection Type | Pigtail |
| Output Voltage | 12 VDC |
| Product Materials | Aluminum |
| Warranty | 2 Year |
| Part NO | Amps | Max Wattage |
|---|---|---|
| LVC-48V12-10A | 10 Amps | 120 Watts |
| LVC-48V12-20A | 20 Amps | 240 Watts |
