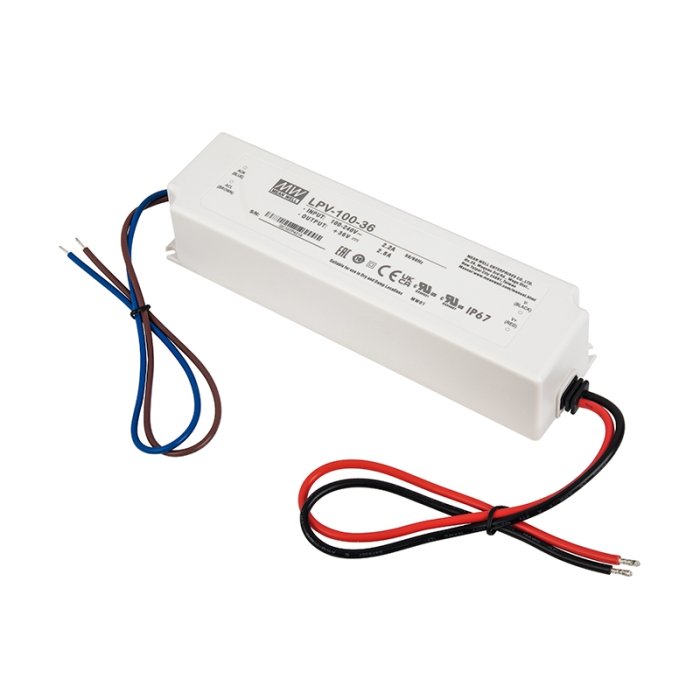

Mean Well LED Switching Power Supply - LPV Series 35-100W Single Output LED Power Supply - 36V DC
Features
- Constant 36 VDC output
- Short circuit and overload protection
- 100-240 VAC input
- IP67 waterproof rating
Overview
- Reliable and economical constant voltage LED power supply
- Protections: short circuit, overload, overvoltage
- AC input: 100-240 VAC
- IP67 waterproof slim plastic case
- Withstand 300VAC surge input for 5 seconds
- Suitable for LED lighting and portable sign applications
- UL Recognized
- 2-year warranty
- Made by Mean Well
LPV and PWM User Manual - Commercial Buildings
- Displays
Class II
Class II power supplies must follow the International Electrotechnical Commission IEC 61439-1 design. This code details that Class II power supplies must have two layers of insulation between the user and the internal current-carrying components to protect the user from electrical shock. The initial layer is "basic" insulation. The second double layer is a reinforcement layer that eliminates the need for a protective earth connection (earthing) or a ground connection since the power supply is grounded within the product's casing.
Specifications
| Brand | Mean Well |
|---|---|
| Built-in PFC Function | No |
| Dimmable | No |
|
Dimming Control
Dimming Control
TRIAC Dimming: This is the most commonly recognized dimming type, with TRIAC Dimmers found in most Home Centers and hardware stores. TRIAC (TRIode for Alternating Current) dimmers operate by modifying the voltage waveform, reducing the amount of power input to the device being controlled. Reducing the input power will result in a corresponding reduction in a power supply's output voltage/current or a decrease in the lumen output of a light fixture. TRIAC dimmers come in two variations: MLV and ELV.
0-10V Dimming: This type of dimming control is most commonly found in commercial applications. It works by varying a voltage from 0 to 10 VDC on dedicated dimming wires. The output of a power supply or light fixture is proportional to the voltage applied. Pulse-Width Modulation (PWM) Dimming: This dimming control adjusts output by rapidly turning the output on and off at a fixed frequency. The proportion of on-time to total time sets the dimming percentage. Potentiometer Dimming: Potentiometer dimming varies the output using a variable resistor, or potentiometer, to set the dimming level. |
Non-Dimmable |
|
Environmental Rating
Environmental Rating
|
Suitable for Damp Locations, Waterproof |
| Input Frequency Range | 47 - 63 Hz |
| Input Connection Type | Pigtail |
| Input Voltage | 120-240 VAC |
|
IP Rating
IP Rating
|
IP67 |
| Multi-Tap | No |
| Number of Outputs | 1 |
| Output Connection Type | Pigtail |
| Output Voltage | 36 VDC |
| Warranty | 2 Year |
| Part NO | Ambient Operating Temperature Range |
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact, energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else who may be involved confidence that the product is safe and will work well in their application. UL and ETL certifications relate to safety and installation and are the most common for power supplies. |
Output Current |
Output Power
Output Power
A power supply's power consumption is measured in watts and refers to the maximum amount of power it is capable of delivering. For best results, choose a power supply that offers a minimum of 20% wattage overhead for your application. Wattage overhead ensures that your project will function correctly, extends the life of the power supply, and offers greater design flexibility by allowing for project expansion. |
|---|---|---|---|---|
| LPV-100-36 | -25~+70 °C (-13~+158 °F) | Class II, UL Recognized | 2800 mA | 100 Watts |
| LPV-100-36(POWERCORD) | -25~+70 °C (-13~+158 °F) | Class II, UL Recognized | 2800 mA | 100 Watts |
| LPV-35-36 | -30~+65 °C (-22~+149 °F) | Class 2, Class II, UL Recognized | 1000 mA | 35 Watts |
| LPV-35-36(POWERCORD) | -30~+65 °C (-22~+149 °F) | Class 2, Class II, UL Recognized | 1000 mA | 35 Watts |
