120W Low-Voltage Landscape Lighting Transformer - DiodeDrive™ Series- Integrated Photocell and Timer

120W Low-Voltage Landscape Lighting Transformer - DiodeDrive® Series- Integrated Photocell and Timer - LVT-120W-12VAC

Part Number
LVT-120W-12VAC

Features

  • Compact design to blend into any space
  • Three operational modes: constant on, automatic dusk to dawn, timed OFF 1-9 hours after dusk
  • Digital controls for easy navigation
  • Input 120VAC, Output 12VAC
  • 120-watt
  • ETL Listed, 3 year warranty
View more details
In Stock
$45.99 ea.

Black Friday Sale: 15% Off Your Entire Purchase! When you use code BFCM22 at checkout. Details⇒

Overview

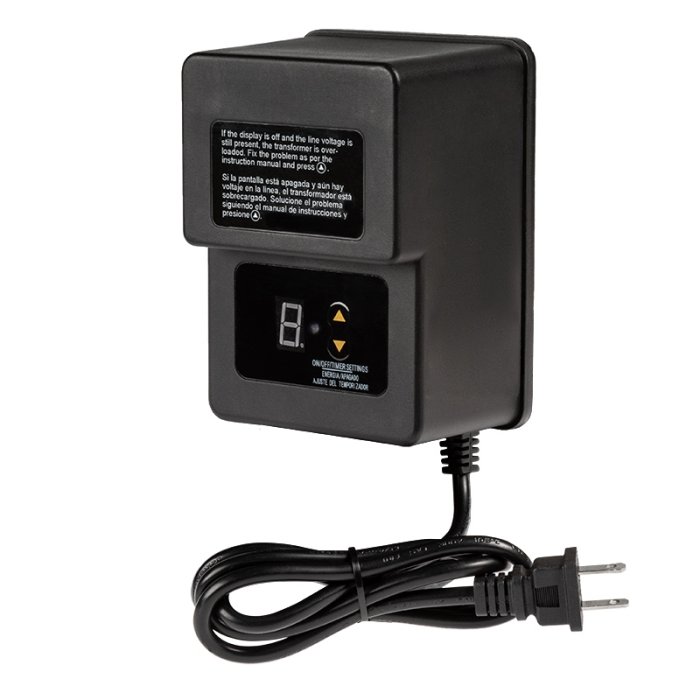

DiodeDrive® 120W Landscape Transformer provides safe and efficient operation of outdoor lighting. It’s simple design mounts on building exteriors. For streamlined performance, digital controls allow three different modes of operation. Select either constant ON, automatic dusk to dawn, or adjust timer to turn OFF 1-9 hours after dusk. Includes overload and short circuit safety features. Heavy duty plastic case is rated to resist corrosion. Includes input power cord and mounting hardware.
Product Details:
  • Three operational modes: constant on, automatic dusk to dawn, timed OFF 1-9 hours after dusk
  • Digital controls for easy navigation
  • Conduit entry points allow direct wall or junction box mounting
  • Input 120VAC, 1-15P
  • Output 12VAC, screw terminal
  • IP54 rated for wet conditions
  • ETL Listed
  • 3 year warranty
ETL Listed
ETL Listed
3 Years
3 Years
A product that bears an ETL-Certified label has been evaluated by a Nationally Recognized Testing Laboratory (NRTL) and meets national product safety standards. An ETL certification is accepted in the U.S. and in Canada.
Super Bright LEDs, Inc. offers a 3-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a product of equal value may be substituted or a gift card for the value of the product. Read More

Specifications

Timer Integrated Timer
Photocell Options Integrated Photocell
Ambient Operating Temperature Range -30~+40 °C (-22~+104 °F)
Certifications/Compliance ETL Listed, RoHS Compliant
Environmental Rating Suitable for Wet Locations, Weatherproof
Input Voltage Screw Terminals
IP Rating IP54
Output Current 10.0A (10000mA)
Output Voltage 12 VAC
Print Specifications
