Peterson LumenX LED Combination Tail Light With Grommet and Plug - 4 Function - 7 LEDs - 4" Round - 12V/24V
Part Number:
882K-7-MV
Manufacturer Part Number:
$38.99
ea.
Was
In Stock
Features
- Backup light is integrated in the stop/turn/tail light
- Waterproof
- 12-24 VDC
- DOT Compliant
- Lifetime Warranty
Related Products
Overview

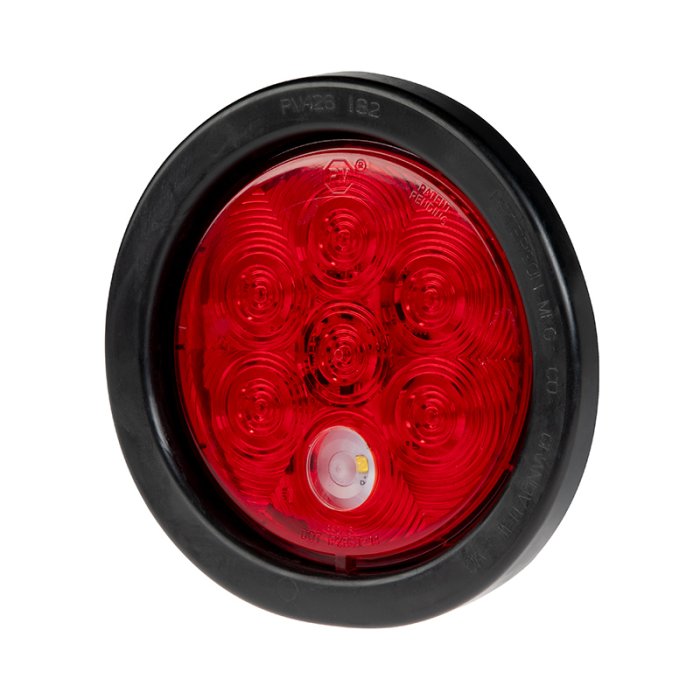

The Peterson LumenX 4" round LED combination tail light can be used as a brake, tail, turn, and marker light. The light features a cyclops-style design, integrating the backup light into the stop, turn, or tail light. The light has integrated voltage regulation for consistent light output. Recess mount using the included grommet and plug. Equipped with 7 LEDs. Connect using the 3-pin AMP connector and 1-pin AMP connector.
Product Details:
- Recess mounts with included grommet and plug
- Waterproof
- Made in the USA
- 12-24 VDC
- Meets FMVSS 108 requirements for automotive lighting
- Lifetime Warranty
Applications:
- Emergency Vehicles
- Motorcycles
- RVs and Motorhomes
- Semi-Trucks
- Trailers
- Trucks
Super Bright LEDs, Inc. warrants that products carrying a lifetime warranty will be free from defects in the material and workmanship for the lifetime of the product. If Super Bright LEDs verifies that the defect was not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product with the same product. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
The Department of Transportation (DOT) sets strict guidelines in respect to external vehicle lighting that must be followed in order for a light to be street legal. Vehicle fixtures—such as headlights and taillights—that have a DOT compliance mark are legal, safe, and considered to provide suitable illumination for street use when properly installed.
Specifications
| Ambient Operating Temperature | -30 to 50 °C (-22 to 122 °F) |
|---|---|
| Brand | Peterson |
| Certifications/Compliance | DOT Compliant |
|
Current Draw
Current Draw
The current draw of your lights is calculated using the amount of power your light needs (wattage) and system voltage using the following formula: Watts/Volts = amps or W/V = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED bulbs with the correct amperage ensures proper operation and prevents damage to your electrical system or the bulbs. See your vehicle owner's manual for amperage, wattage, and voltage information, or match the information on your existing bulbs. |
250 mA @ 24 VDC, 500 mA @ 12 VDC |
| Diameter | 4 in |
| DOT Standard | FMVSS 108 |
|
Environmental Rating
Environmental Rating
|
Waterproof |
|
FMVSS Code
FMVSS Code
|
I, R, S, T |
| Input Connection Type | 1-pin AMP connector, 3-pin AMP Connector |
| Input Voltage | 12-24 VDC |
|
IP Rating
IP Rating
|
IP67 |
| LED Color | Red / White |
| LED Quantity | 7 |
| Lens Color | Red |
| Mount Type | Flange |
| PC Rating | P2 |
| Product Materials | Polycarbonate |
| Series | LumenX |
| Warranty | Lifetime |
| Wattage | 6 Watts |
