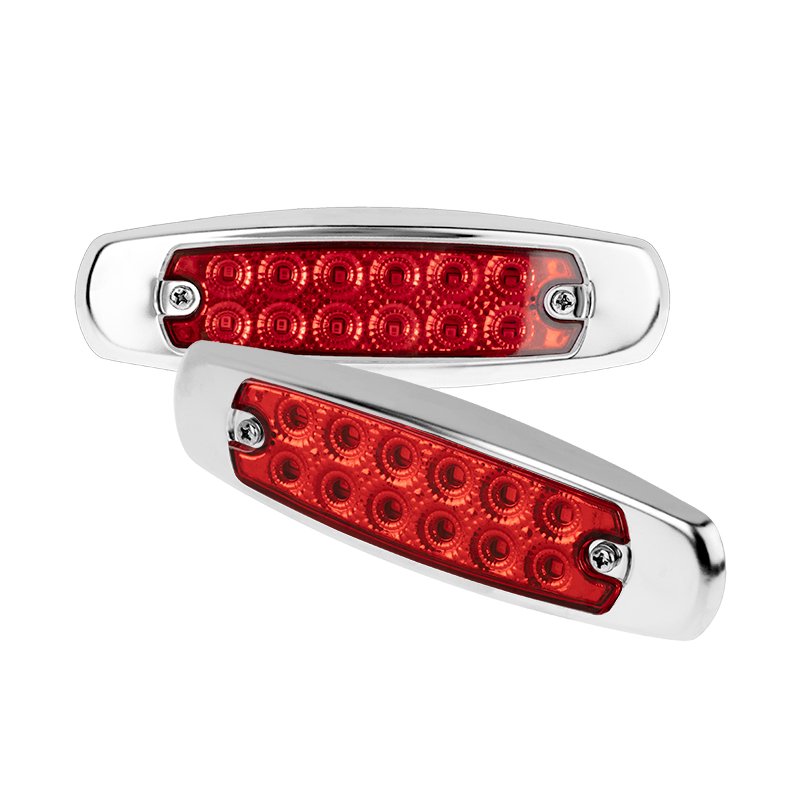

Name: Low-Profile LED Truck Clearance or Side Marker Lights - Peterbilt Style - 12-LED - Amber / Red - Pair
Brand: Super Bright LEDs
SKU: PBMC-x12
Price: 14.99 USD
Availability: InStock

Overview

Description

These low-profile LED truck clearance or side marker lights are Peterbilt-style rectangular LED vehicle lights that meet DOT FMVSS 108 requirements for use as side and clearance lights. The lights surface mount with included hardware with standard pigtail leads for wiring. Each light has 12 LEDs for optimal visibility and a protective chrome bezel. A sealed housing and lens give these lights an IP67 waterproof rating. Priced per pair and available in red and amber.

Product Details:

Polystyrene lens
IP67 Waterproof
Surface mount
12-24 VDC
Meets FMVSS 108 requirements for automotive lighting
Lifetime Warranty

The Department of Transportation (DOT) sets strict guidelines in respect to external vehicle lighting that must be followed in order for a light to be street legal. Vehicle fixtures—such as headlights and taillights—that have a DOT compliance mark are legal, safe, and considered to provide suitable illumination for street use when properly installed.

Super Bright LEDs, Inc. warrants that products carrying a lifetime warranty will be free from defects in the material and workmanship for the lifetime of the product. If Super Bright LEDs verifies that the defect was not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product with the same product. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Applications

Emergency Vehicle Lighting
Semi-Truck Light
Freightliner Light
Flatbed Truck Lights
Trailer Lights
Tow Truck Lights
Box Truck Lights
RV Lights
Campers
Show Truck Lights
Peterbilt Truck Lights

Specifications

Ambient Operating Temperature	-20~+65 °C (-4~+149 °F)
Beam Angle Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.	120°
Brand	Super Bright LEDs
Certifications/Compliance	DOT Compliant
Current Draw Current Draw is used to size fuses and wire for a circuit. Current draw is the amount of energy consumed by an LED or LEDs in an electrical circuit at a specific voltage, measured in amps (A) or milliamps (mA).	210 mA @ 24 VDC, 420 mA @ 12 VDC
DOT Standard	FMVSS 108
FMVSS Code Learn more about environmental rating	P
Input Connection Type	Pigtail
IP Rating Learn more about IP rating	IP67
LED Quantity	12 LEDs
Mount Type	Flange
Output Connection Type	Pigtail
PC Rated	No
Power Consumption	5 Watts
Product Materials	Polystyrene
Warranty	Lifetime

Print Specifications

Part NO	Finish	LED Color
PBMC-A12	Amber/Chrome	Amber
PBMC-R12	Red/Chrome	Red
