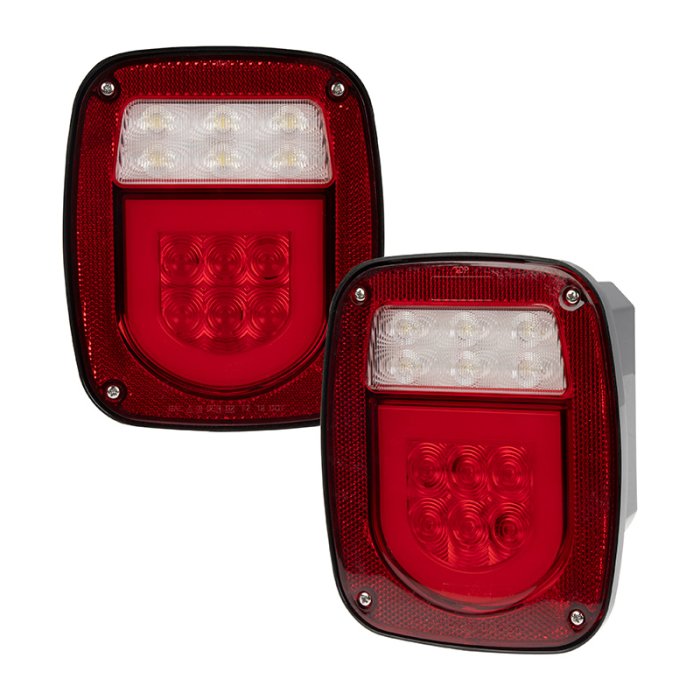

Optronics GloLight LED Combination Trailer Tail Light - 4 / 5 Function - Submersible - 36 / 39 LEDs - Passenger Side / Driver Side
Part Number:
STL161RxBP
Manufacturer Part Number:
Starting at
$54.99
ea.
Starting at
Was
Clearance
Features
- Distinctive GloLight design creates a solid panel of light
- Built-in back-light and reflex
- IP67 waterproof rating
- Hard wired with included ground wire
- Lifetime Warranty
Related Products
Overview
The LED GloLight combination trailer tail light by Optronics features a low-profile design for stop, turn, tail, back up, and license plate lighting applications. The light has a waterproof construction consisting of a removable acrylic lens and polycarbonate housing and functions as a reflex reflector. Easily upgrade incandescent lights on the driver's or passenger's side. The light has up to 39 LEDs and is hardwired with the included ground wire. FMVSS [SAE]: FMVSS:S2 T2 I6 A (2)R L.
Product Details:
- Driver side light includes 3-LED license lights
- Hardwired electrical connection with separate ground wire
- Stud mount
- 12 VDC
- Lifetime Warranty
Applications:
- Backup Lights
- Brake Lights
- Combination Tail Light
- Emergency Vehicles
- RV Lights
- Semi-Trucks
- Trailer Tail Lights
- Turn Signal Lights
Super Bright LEDs, Inc. warrants that products carrying a lifetime warranty will be free from defects in the material and workmanship for the lifetime of the product. If Super Bright LEDs verifies that the defect was not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product with the same product. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
The Department of Transportation (DOT) sets strict guidelines in respect to external vehicle lighting that must be followed in order for a light to be street legal. Vehicle fixtures—such as headlights and taillights—that have a DOT compliance mark are legal, safe, and considered to provide suitable illumination for street use when properly installed.
Specifications
| Ambient Operating Temperature | -30 to 50 °C (-22 to 122 °F) |
|---|---|
| Brand | Optronics |
| Certifications/Compliance | DOT Compliant |
|
Current Draw
Current Draw
The current draw of your lights is calculated using the amount of power your light needs (wattage) and system voltage using the following formula: Watts/Volts = amps or W/V = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED bulbs with the correct amperage ensures proper operation and prevents damage to your electrical system or the bulbs. See your vehicle owner's manual for amperage, wattage, and voltage information, or match the information on your existing bulbs. |
190 mA, 210 mA, 300 mA, 510 mA |
| DOT Standard | FMVSS 108 |
|
Environmental Rating
Environmental Rating
|
Waterproof |
|
FMVSS Code
FMVSS Code
|
A, I6, L, S2, T2, (2)R |
| Input Connection Type | Pigtail |
| Input Voltage | 12 VDC |
|
IP Rating
IP Rating
|
IP67 |
| LED Color | Red / White |
| LED Quantity | 39 |
| Lens Color | Red/Clear |
| Mount Type | Stud Mount |
| PC Rating | P2 |
| Product Materials | Acrylic, Polycarbonate |
| Series | GloLight |
| Warranty | Lifetime |
| Wattage | 6.1 Watts |
| Wire Gauge | 18 AWG |
