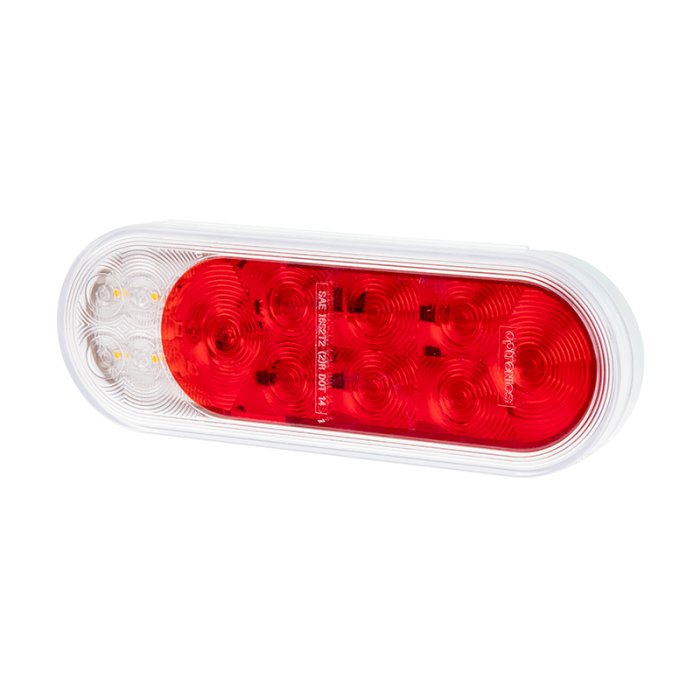

Optronics Fusion LED Combination Trailer Tail Light - 4 Function - Submersible - 16 LEDs - Oval - Red / Clear Lens
Part Number:
STL211XRBP
Manufacturer Part Number:
$29.99
ea.
Was
In Stock
Features
- The Fusion series integrates back up signal into your tail light
- IP67 waterproof rating
- DOT-compliant back up light built into stop/turn/tail light
- Lifetime Warranty
Frequently Bought Together
Total Price:
Loading...
Related Products
Overview
The 6" oval Optronics Fusion LED Combination Trailer Tail Light features waterproof construction for stop light, turn signal, tail light, and brake light applications. The light is constructed with durable polycarbonate and has an IP67 waterproof rating. The light is equipped with 16 LEDs. Connect using the PL-3 connection. Recessed mount with grommet (sold separately).
Product Details:
- Durable polycarbonate housing and lens
- IP67 waterproof rating
- Mounts with grommet (sold separately)
- 12 VDC
- Lifetime Warranty
Applications:
- Backup Lights
- Boat Trailer Tail Lights
- Brake Lights
- Combination Tail Light
- Emergency Vehicles
- RV Lights
- Semi-Trucks
- Trailer Tail Lights
- Turn Signal Lights
Super Bright LEDs, Inc. warrants that products carrying a lifetime warranty will be free from defects in the material and workmanship for the lifetime of the product. If Super Bright LEDs verifies that the defect was not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product with the same product. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
The Department of Transportation (DOT) sets strict guidelines in respect to external vehicle lighting that must be followed in order for a light to be street legal. Vehicle fixtures—such as headlights and taillights—that have a DOT compliance mark are legal, safe, and considered to provide suitable illumination for street use when properly installed.
Specifications
| Ambient Operating Temperature | -30 to 50 °C (-22 to 122 °F) |
|---|---|
| Brand | Optronics |
| Certifications/Compliance | DOT Compliant |
|
Current Draw
Current Draw
The current draw of your lights is calculated using the amount of power your light needs (wattage) and system voltage using the following formula: Watts/Volts = amps or W/V = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED bulbs with the correct amperage ensures proper operation and prevents damage to your electrical system or the bulbs. See your vehicle owner's manual for amperage, wattage, and voltage information, or match the information on your existing bulbs. |
20 mA, 250 mA, 380 mA, 620 mA |
| DOT Standard | FMVSS 108 |
|
Environmental Rating
Environmental Rating
|
Waterproof |
|
FMVSS Code
FMVSS Code
|
I6, S2, T2, (2)R |
| Input Connection Type | 3-Pin (PL-3) |
| Input Voltage | 12 VDC |
|
IP Rating
IP Rating
|
IP67 |
| LED Color | Red / White |
| LED Quantity | 16 |
| Lens Color | Red/Clear |
| Mount Type | Recessed Mount |
| PC Rating | P2 |
| Product Materials | Polycarbonate |
| Series | Fusion |
| Warranty | Lifetime |
| Wattage | 7.4 Watts |
