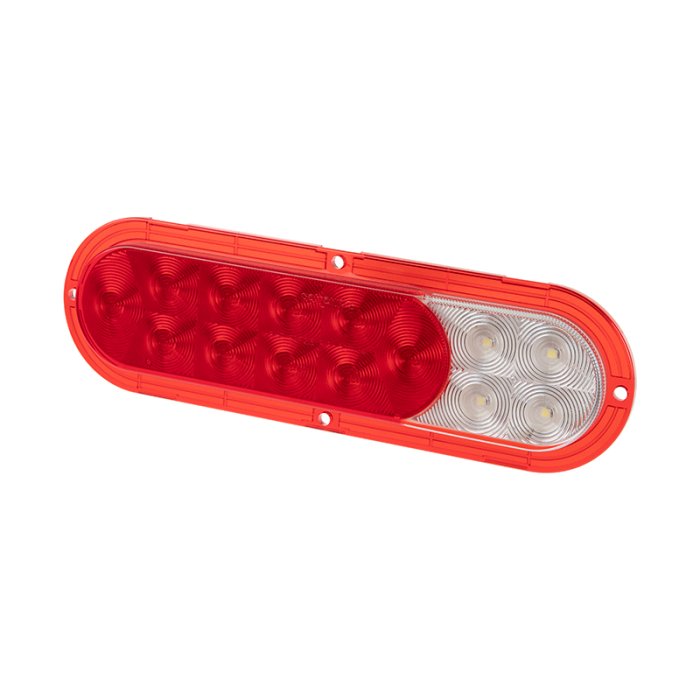

Optronics Fusion LED Combination Trailer Tail Light - 4 Function - Submersible - 14 LEDs - Oblong - Red / Clear Lens

Part Number:
STL68RBP
Manufacturer Part Number:

calcActive())">
$40.99
ea.
Was
In Stock
Features
- The Fusion series integrates back up signal into your tail light
- Low-profile design–only 1/2" thick
- IP67 waterproof rating
- Hardwire with included ground wire
- Lifetime Warranty
Loading recommendations...
Overview
The oblong LED Fusion combination trailer tail light by Optronics features waterproof construction for stop light, turn signal, tail light, and reverse light applications. The light is constructed with durable polycarbonate and has an IP67 waterproof rating. The light is equipped with 14 LEDs and is hardwired with the included ground wire. Surface mount with flange (sold separately).
Product Details:
- Durable polycarbonate housing and lens
- IP67 waterproof rating
- Surface mount on 9-11/16" centers with flange (sold separately)
- 12 VDC
- Lifetime Warranty
Applications:
- Backup Lights
- Boat Trailer Tail Lights
- Brake Lights
- Combination Tail Light
- Emergency Vehicles
- RV Lights
- Semi-Trucks
- Trailer Tail Lights
- Turn Signal Lights
Super Bright LEDs, Inc. warrants that products carrying a lifetime warranty will be free from defects in the material and workmanship for the lifetime of the product. If Super Bright LEDs verifies that the defect was not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product with the same product. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
The Department of Transportation (DOT) sets strict guidelines in respect to external vehicle lighting that must be followed in order for a light to be street legal. Vehicle fixtures—such as headlights and taillights—that have a DOT compliance mark are legal, safe, and considered to provide suitable illumination for street use when properly installed.
Specifications
Ambient Operating Temperature | -30 to 50 °C (-22 to 122 °F) |
---|---|
Brand | Optronics |
Certifications/Compliance | DOT Compliant |
Current Draw
Current Draw
The current draw of your lights is calculated using the amount of power your light needs (wattage) and system voltage using the following formula: Watts/Volts = amps or W/V = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED bulbs with the correct amperage ensures proper operation and prevents damage to your electrical system or the bulbs. See your vehicle owner's manual for amperage, wattage, and voltage information, or match the information on your existing bulbs. |
300 mA, 350 mA, 50 mA, 650 mA |
DOT Standard | FMVSS 108 |
Environmental Rating
Environmental Rating
![]() |
Waterproof |
FMVSS Code
FMVSS Code
![]() |
I6, S2, T2, (2)R |
Input Connection Type | Pigtail |
Input Voltage | 12 VDC |
IP Rating
IP Rating
![]() |
IP67 |
LED Color | Red / White |
LED Quantity | 14 |
Lens Color | Red/Clear |
Mount Type | Recessed Mount |
PC Rating | P2 |
Product Materials | Polycarbonate |
Series | Fusion |
Warranty | Lifetime |
Wattage | 7.8 Watts |
Wire Gauge | 18 AWG |
