Optronics Fusion LED Combination Tail Light Bar for Trailers Over 80" Wide - Submersible - Red and Clear Lens
Part Number:
STL264RBP
Manufacturer Part Number:
Discontinued
Similar Products Available Today
Features
- The Fusion series integrates back up signal into your tail light
- Back Up light built into light bar
- IP67 waterproof rating
- Hardwire with included ground wire
- DOT-compliant
- Lifetime Warranty
Ask About This Product
Get instant AI-powered answers
Try asking:
Most Popular Compatible Products
Overview

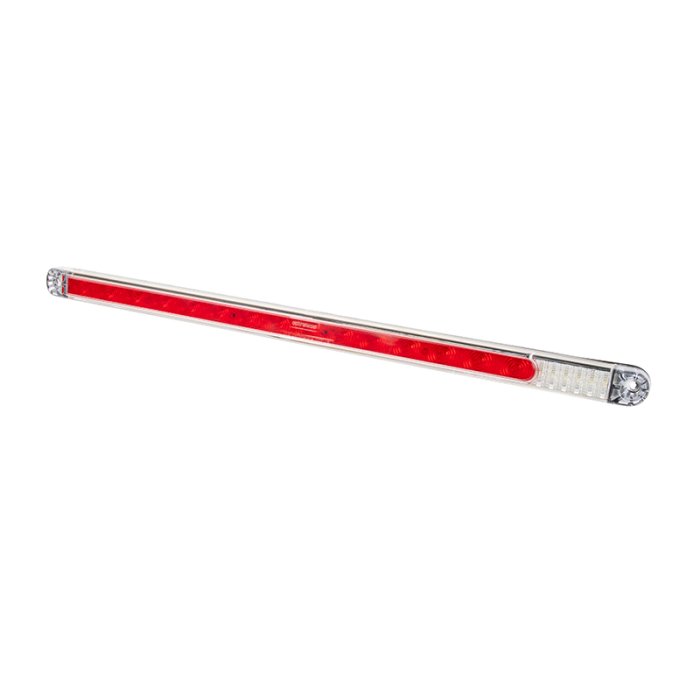

The Fusion LED Thinline combination tail light bar by Optronics features waterproof construction for stop, turn, tail, and reverse light applications on trailers. The light bar is constructed with durable polycarbonate and can easily be surface mounted. The light has 19 LEDs and is hardwired with the included ground wire.
Product Details:
- Durable polycarbonate housing and lens
- IP67 waterproof rating
- Surface mount- no cutout required
- 12 VDC
- Lifetime Warranty
Dimensional Drawings
Applications:
- Backup Lights
- Brake Lights
- Combination Tail Light
- Emergency Vehicles
- RV Lights
- Semi-Trucks
- Trailer Tail Lights
- Turn Signal Lights
Super Bright LEDs, Inc. warrants that products carrying a lifetime warranty will be free from defects in the material and workmanship for the lifetime of the product. If Super Bright LEDs verifies that the defect was not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product with the same product. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
The Department of Transportation (DOT) sets strict guidelines in respect to external vehicle lighting that must be followed in order for a light to be street legal. Vehicle fixtures—such as headlights and taillights—that have a DOT compliance mark are legal, safe, and considered to provide suitable illumination for street use when properly installed.
Ask About This Product
Get instant AI-powered answers
Try asking:
Products Mentioned
Press Enter to send, Shift+Enter for new line
Responses are AI-generated from product documentation. For confirmation or more information, contact Super Bright LEDs customer service.
Conversations are recorded for quality assurance. More information
Ask About This Product
Get instant AI-powered answers
Try asking:
Products Mentioned
Press Enter to send, Shift+Enter for new line
Responses are AI-generated from product documentation. For confirmation or more information, contact Super Bright LEDs customer service.
Conversations are recorded for quality assurance. More information
Ask About This Product
Get instant AI-powered answers
Try asking:
Specifications
| Ambient Operating Temperature | -30 to 50 °C (-22 to 122 °F) |
|---|---|
| Brand | Optronics |
| Certifications/Compliance | DOT Compliant |
|
Current Draw
Current Draw
The current draw of your lights is calculated using the amount of power your light needs (wattage) and system voltage using the following formula: Watts/Volts = amps or W/V = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED bulbs with the correct amperage ensures proper operation and prevents damage to your electrical system or the bulbs. See your vehicle owner's manual for amperage, wattage, and voltage information, or match the information on your existing bulbs. |
240 mA, 270 mA, 300 mA, 570 mA |
| DOT Standard | FMVSS 108 |
|
Environmental Rating
Environmental Rating
Suitable for Dry Locations This marking indicates that you can use the light or component in a location not normally subject to dampness. This may include locations exposed to temporary dampness, such as a building under construction, provided that ventilation is adequate to prevent moisture accumulation. Use these fixtures in living rooms, bedrooms, offices, hallways, and similar areas. The marking may be "SUITABLE FOR DAMP LOCATIONS" or "DRY LOCATIONS ONLY."Suitable for Damp Locations Fixtures marked “SUITABLE FOR DAMP LOCATIONS” or “SUITABLE FOR WET LOCATIONS” can be installed in damp locations. A damp location is an exterior or interior location regularly or occasionally subject to moisture condensation on or around electrical equipment. It includes partially protected places such as covered patios and porches. Damp locations include any regularly muggy or humid area, such as above a kitchen sink or stove, and appropriately vented bathrooms near the tub or shower.Suitable for Wet Locations Fixtures and components marked "SUITABLE FOR WET LOCATIONS" can be installed in wet or damp locations. A wet location is anywhere water or other liquids may drip, splash, or flow on or against electrical equipment. A light marked "SUITABLE FOR WET LOCATIONS" may have additional markings that tell where and at what height it can be safely mounted. Uncovered outdoor areas like decks, gazebos, walls, and typical landscape lighting sites all fall under the heading of wet locations. |
Waterproof |
|
FMVSS Code
FMVSS Code
 |
I6, S2, T2, (2)R |
| Input Connection Type | Pigtail |
| Input Voltage | 12 VDC |
|
IP Rating
IP Rating
 |
IP67 |
| LED Color | Red / White |
| LED Quantity | 19 |
| Lens Color | Red/Clear |
| Mount Type | Surface Mount |
| PC Rating | P2 |
| Product Materials | Polycarbonate |
| Series | 159087 |
| Warranty | Lifetime |
| Wattage | 6.8 Watts |
| Wire Gauge | 18 AWG |
