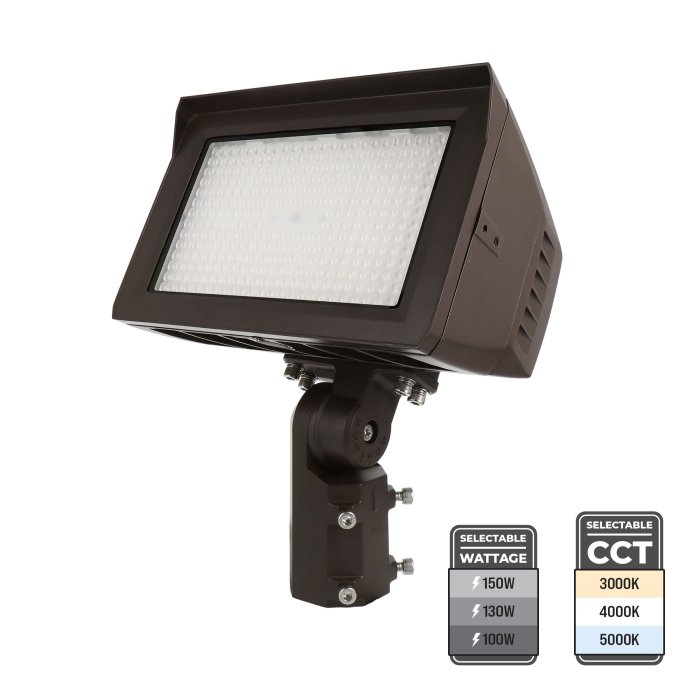

MaxLite Slim LED Flood Light - Selectable Beam Angle - Selectable Wattage and CCT - Photocell - Up to 21,540 Lumens
Part Number:
MSF150UA-WCSBKPC
Manufacturer Part Number:
$229.99
ea.
Was
In Stock
Features
- CCT selectable - 3000K/4000K/5000K
- Wattage selectable - 100/130/150
- Adjustable beam angle - 55°/75°/90°
- DLC 5.1 Premium
Overview
The MaxLite Slim Flood Light delivers high performance in a small and cost-effective package. All models are wattage and CCT selectable, allowing customers to choose from 3000K, 4000K, or 5000K color temperatures and 100W, 130W, or 150W light outputs. The integrated photocell has an on/off switch for increased energy savings and easy operation. The slim flood light beam angle can be adjusted from a narrow 55°, medium 75°, or wide 90° pattern, ensuring uniform light distribution in any application.
Product Details:
- Die-cast aluminum housing
- Bronze corrosion-resistant powder coating
- Tempered glass lens
- IP65 Waterproof
- Photocell with on/off switch
- Slipfitter mount included
- 5-year warranty
Documents
MSF Series Flood Lights Adjustable Beam (100–320 W) Specification Sheet
MSF150UA-WCS 100W 3000K 55 Degrees IES File Applications:
- Area Lighting
- Billboards
- Campus Lighting
- Car Dealerships
- High Bays
- Parking Lots
- Parks
- Street Lights
- Warehouses
This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.
This product has been certified by Underwriter Laboratories to their engineering and safety standards.
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Need help?
Use our Lighting Layout Tool to see how this product illuminates your space.
Specifications
| Ambient Operating Temperature | -40~+40 °C (-40~+104 °F) |
|---|---|
| Beam Angle | 55°,75°,90° (Selectable) |
| Brand | MaxLite |
|
CCT
CCT
|
3000K, 4000K, 5000K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
Certified by UL, DLC Premium |
|
CRI
CRI
|
80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
920 mA/1.2/1.3 A @ 120 VAC, 395/515/595 mA @ 277 VAC |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
0-10V |
| DLC Product ID | S-94P4LL |
| Efficacy | 155 lm/W |
|
Environmental Rating
Environmental Rating
|
Suitable for Wet Locations, Waterproof |
| Equivalency | 250 Watt Metal Halide, 400 Watt Metal Halide |
| Finish | Bronze |
| Input Connection Type | Pigtail |
| Integrated Surge Protection | 6 kV |
|
IP Rating
IP Rating
|
IP65 |
| LED Color | Selectable CCT |
| Rated Life (L70) | 100000 Hours |
| Lens Color | Clear |
| Lens Type | Tempered Glass |
| Lumens | 21540 Lumens |
| Microwave Motion Sensor | None |
| Mount Type | Knuckle Slipfitter Mount |
| Operating Voltage | 120-277 VAC |
|
Photocell
Photocell
What is a Photocell and How Does It Work?When an LED light is equipped with a photocell, the light will turn on and off automatically based on the available ambient light. Their unique functionality makes them ideal for outdoor area lighting specifically.Photocells are variable resistors that change the resistance in an electrical circuit depending on the amount of light present where they are mounted. Because of this, they must be mounted in exposed areas where they receive adequate light to function. Photocells, or photocontrols, come in a variety of shapes and sizes and can be integrated into a luminaire or be an added accessory depending on the light. Can a Photocell Be Bypassed?Some lights allow for a photocell to be bypassed as needed. When the photocell is bypassed, it allows for the luminaire to remain on constantly or be controlled by an existing switch or timer. Depending on the type of photocell and how it is installed in the fixture, it may be bypassable using a shorting cap, a slide or DIP switch, or by unplugging the photocell. Consult the user’s manual of the light to confirm which option(s) may be applicable and how to implement them safely. Always use caution and turn off supply power before working on wiring of any type.Shorting CapPhotocells on many commercial applications like parking lot and area lighting applications are mounted externally with a twist-lock socket or adapter. Swapping this for a shorting cap simply closes the circuit on your LED light fixture, which keeps your light in an always-on state. This allows it to be controlled externally as well if a central photocell or switch system is being utilized.DIP Switch or Slide SwitchWhile DIP switches and standard slide switches function differently in most cases, when integrated into the photocontrol system of a light they perform the same function. Switches like these are common on canopy and dusk-to-dawn barn lights. These types of switches allow you to toggle the photocell sensor on or off to fit your needs without any rewiring or replacing parts.Disconnect the WiringSome photocell designs, such as those commonly found in wall packs, allow the operator to simply unplug the photocell to allow the light to work in an always-on state or be controlled by an external switch. |
Integrated Photocell (Bypassable) |
| Power Factor | ≥0.9 |
| Product Materials | Aluminum Housing, Tempered Glass Lens |
| Product Weight | 10.4 lb (4.7 kg) |
| UL File Number | E361011 |
| Warranty | 5 Year |
| Wattage | 100 Watts, 130 Watts, 150 Watts |
| Wire Gauge | 18 AWG |
