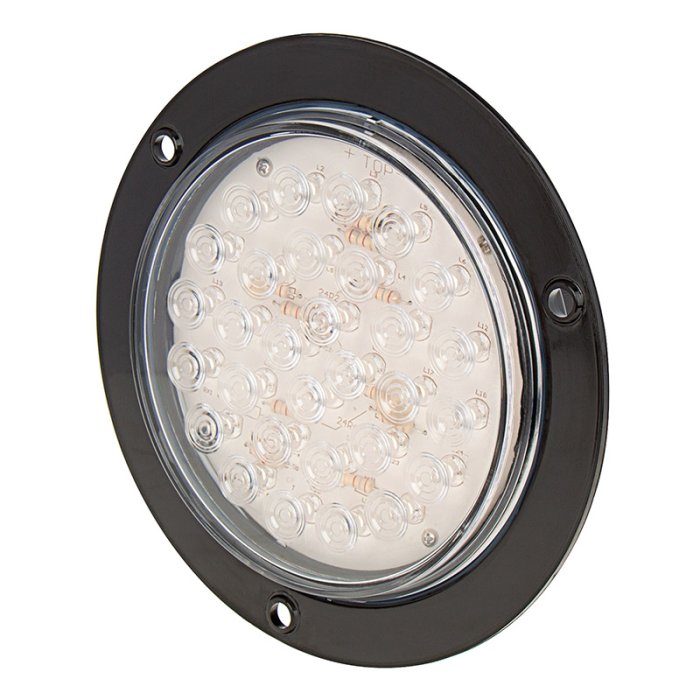

4" Round LED Trailer Backup Light with Flange - 30 LEDs - White
Part Number:
STF-W30
Manufacturer Part Number:
![Round LED Truck Trailer Light w/ Built-In Flange - 5-1/2" LED Reverse Light w/ 30 LEDs - 3-Pin Connector](https://www.superbrightleds.com/media/catalog/product/cache/658b5bae439743a0c5caf366a5f0df99/s/t/stf-w300.jpg "Round LED Truck Trailer Light w/ Built-In Flange - 5-1/2" LED Reverse Light w/ 30 LEDs - 3-Pin Connector")
$24.99
ea.
Was
In Stock
Features
- Round trailer light provides reverse light function
- DOT and CE compliant
- IP65-rated weatherproof sealed construction
- Accepts industry-standard 3-pin or 2-pin PL-3 plugs (sold separately)
- Lifetime Warranty
Frequently Bought Together
Total Price:
Loading...
Related Products
Overview
This 4” Round LED Trailer Backup Light meets DOT FMVSS 108 requirements for use as a reverse light. It boasts 30 LEDs that operate within a wide 9-14.8 VDC range and consume 90% less energy than incandescent lamps. Sonically sealed polycarbonate lens and weatherproof housing.
The light mounts flush with the built-in black PVC 3-hole mounting flange and is designed to accept industry-standard 3-pin PL-3 plugs (sold separately).
The light mounts flush with the built-in black PVC 3-hole mounting flange and is designed to accept industry-standard 3-pin PL-3 plugs (sold separately).
Product Details:
- Sealed polycarbonate lens
- IP65 rated
- 9-14.8 VDC range
- DOT and CE Compliant
- Lifetime Warranty
Applications:
- Box Trucks
- Campers
- Emergency Vehicles
- Flatbed Trucks
- Freightliners
- RV Lights
- Semi-Trucks
- Service Vehicles
- Tow Truck Lights
- Trailers
Super Bright LEDs, Inc. warrants that products carrying a lifetime warranty will be free from defects in the material and workmanship for the lifetime of the product. If Super Bright LEDs verifies that the defect was not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product with the same product. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.
Specifications
| Brand | Super Bright LEDs |
|---|---|
| Certifications/Compliance | CE |
|
Current Draw
Current Draw
The current draw of your lights is calculated using the amount of power your light needs (wattage) and system voltage using the following formula: Watts/Volts = amps or W/V = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED bulbs with the correct amperage ensures proper operation and prevents damage to your electrical system or the bulbs. See your vehicle owner's manual for amperage, wattage, and voltage information, or match the information on your existing bulbs. |
170 mA |
| Diameter | 4 in |
| Input Connection Type | 3-Pin (PL-3) |
| Input Voltage | 9-14.8 VDC |
|
IP Rating
IP Rating
|
IP65 |
| LED Color | White |
| LED Quantity | 30 |
| Lumens | 37 Lumens |
| Mount Type | Flange |
| PC Rating | P2 |
| Warranty | Lifetime |
