Name: LED DMX512 Decoder - 3 Channel - 8 A/CH - Address Digital Display - 12-24 VDC
Brand: Super Bright LEDs
SKU: DMX4-3CH-8A
Price: 19.99 USD
Availability: InStock

Overview

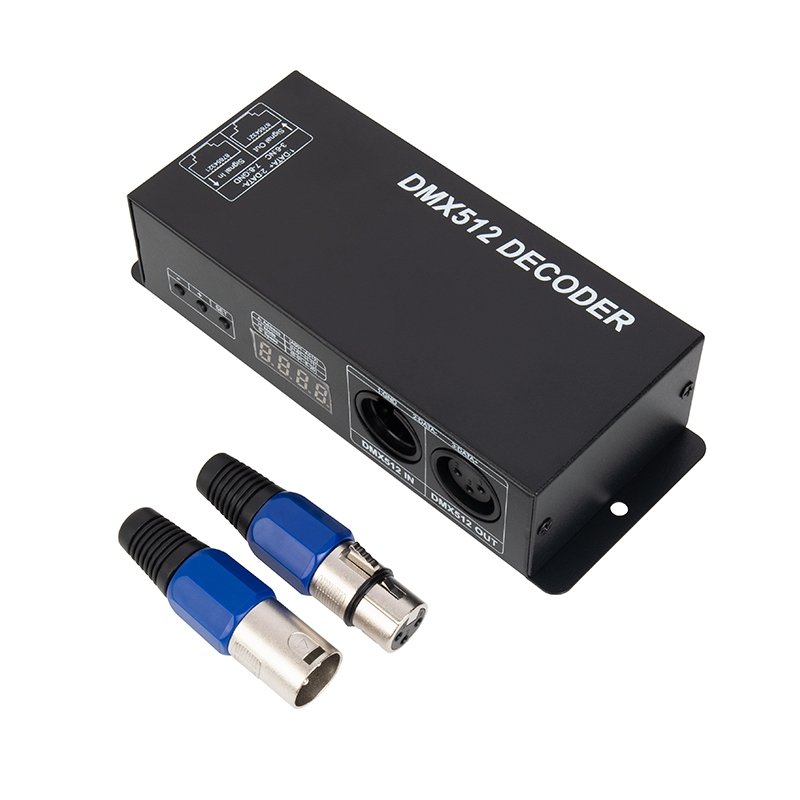

The DMX512 decoder can control up to 3 different constant voltage LED products or any one RGB light bar or strip. Decoder can run in standalone mode using the address digital display or under DMX512 digital control signals using an RJ45 or XLR3 input/output interface. Connect up to 8 amps per channel- 15 amps maximum for decoder. The decoder can control a maximum load of 180W using 12 VDC or 360W using 24 VDC. Includes one male and one female XLR3 connector.

Product Details:

RJ45 Input/Output
XLR3 Input/Output
12 VDC: 96W per channel, 180W total
24 VDC: 192W per channel, 360W total

Super Bright LEDs, Inc. offers a 2-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Specifications

Amps	15 Amps
Amps Per Channel	8 Amps/CH
Channels	3 Channels
Control Type	DMX512
DMX In/Out	RJ45, XLR3
Environmental Rating	Non-weatherproof
Input Connection Type	Screw Terminals
IP Rating	IP20
Material	Polycarbonate
Operating Temperature	-20~+60 °C (-4~+140 °F)
Power Consumption	180W @ 12 VDC, 360W @ 24 VDC
Voltage	12-24 VDC

Print Specifications
