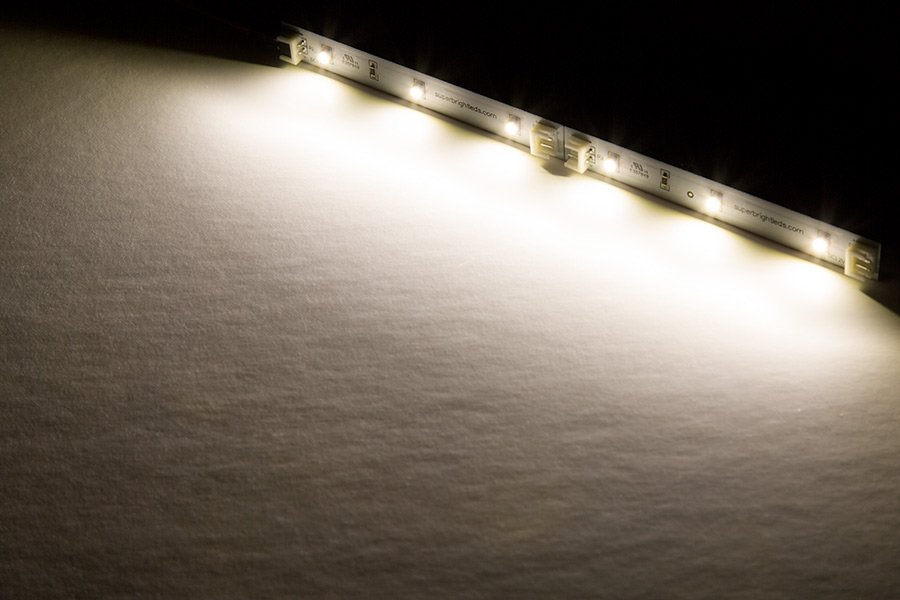

Name: Rigid Linear LED Light Bar - 7" - 48 Lumens
Brand: Super Bright LEDs
SKU: LB4-x6SMD
Price: 1.99 USD
Availability: InStock
Rating: 4.3 (4 reviews)

Overview

Description

Rigid linear LED light bars are an extremely versatile solution for a variety of lighting needs, such as cabinet lighting, under-cabinet lighting, cove lighting, task lighting, bookshelf lighting, showcase lighting, cupboard lighting, or other indoor applications where space is limited. This 7-3/16" light bar emits up to 48 lumens of natural white or warm white illumination. The non-weatherproof light fixture operates with in a 9-14.8 VDC range and can be cut into 3-LED segments. One interconnect jumper is included; easily join up to 70 fixtures together with optional interconnect jumpers (sold separately).

Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.

Products that have an International Solid-State Lighting Alliance (ISA) label are approved as quality, energy-efficient LED lights that help to create a sustainable society.

Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Applications

Sign Lighting
LED Backlights
Task Lighting
Accent Lighting
Off Grid Lighting
Display Cases
Trade Shows

Specifications

Beam Angle	120°
Comparable Wattage	45-50 Watt Incandescent
Current Draw	40 mA
Current Draw per Foot	68mA
Dimmable	Yes
Efficacy	96 lm/W
Environmental Rating	Non-weatherproof, Suitable for Dry Locations
Input Connection Type	LB4
IP Rating	IP20
LED Lifetime	10000 Hours
LED Quantity	6 LEDs
LED Type	High Power
LEDs per Segment	3
Length	7.3in (0.61ft)
Linkable	Yes
Max Run Max Run (or maximum run) is used to specify the total number of strips that can run in series without experiencing dimming due to voltage drop. When Max Run is reached, power wires for additional devices must be 'home run' directly back to the power source, starting a new run.	70
Power Consumption	1 Watt
Standards And Certifications Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here.	ISA Approved, UL Listed
Strip Width	11.75mm (0.46in)
UL File Number	E357849
Voltage	9-14.8 VDC
Wattage per Foot	0.8 W/ft (2.6 W/m)

Print Specifications

Part NO	CCT Value CCT Value	LED Color	Lumen	Lumen Per Foot	Lumen Per LED
LB4-NW6SMD	4000K	Natural 4000K	48 Lumens	82 lm/ft	8
LB4-WW6SMD	3000K	Warm 3000K	45 Lumens	77 lm/ft	7.5

Accessories & Power Supplies

All Accessories

Controllers

12V Power Supplies

Dimmers

Connectors

Mounting

Switches

Accessories Links

Accessory Category

Accessory Type:

$0.45 ea.

Interconnect Jumper for LB4 LED Light Bars - Interconnect Jumper Part Number: LB4-I05
In stock

5 inch interconnect jumper for connecting LB4 series light bars and segments together. Can be cut in half to make 2 power jumpers. 11.4cm(4.5in) length.
$1.99 ea.

LB4 series CPS Power Adapter Cable - Adapter CPS-Cable Part Number: CPS-LB4
In stock

LB4 adapter cable with 5.5mm barrel plug to connect CPS series power supplies to LB4 product. 2 foot length.

$29.99 ea.

3M-FTS Double-Sided Foam Tape Strip - Double-Sided Foam Tape Strip Part Number: 3M 4492
In stock

High performance 3M Double Coated Polyethylene Foam Tape Strips - adhesive on both sides for attaching light bars and other LED products to a wide variety of surfaces. 72 yard reel, which measures 1/4in wide x 216ft long.
$0.25 ea.

Mounting Track for LB4 LED Light Bars - Mounting Track Part Number: LB4-MC
In stock

Mounting track for LB4 series light bars that can be mounted by adhesive or the two screw holes spaced 0.9" apart. Screws not included. Tracks measure 1.25" wide x .89" long.
