LED Signal Tower Stack Lights - Adjustable Mount with 50mm Pole

Modular LED Signal Tower Stack Lights - 2.4" Diameter - Fixed Mount with 50mm Pole

Part Number


  • Interchange and customize configuration
  • Continuous and flashing light modes (65 FPM)
  • Continuous or pulse tones (85 dB)
  • DIP switch easily controls light and buzzer with out any rewiring
  • Diameter: 2.4in | Height Range: 6.6in - 15.39in
  • 2 year warranty
View more details
In Stock
Only %1 left

Starting at $45.95 ea.
Free Shipping
On orders $300 and up within the contiguous U.S.
Read More

Item does not qualify

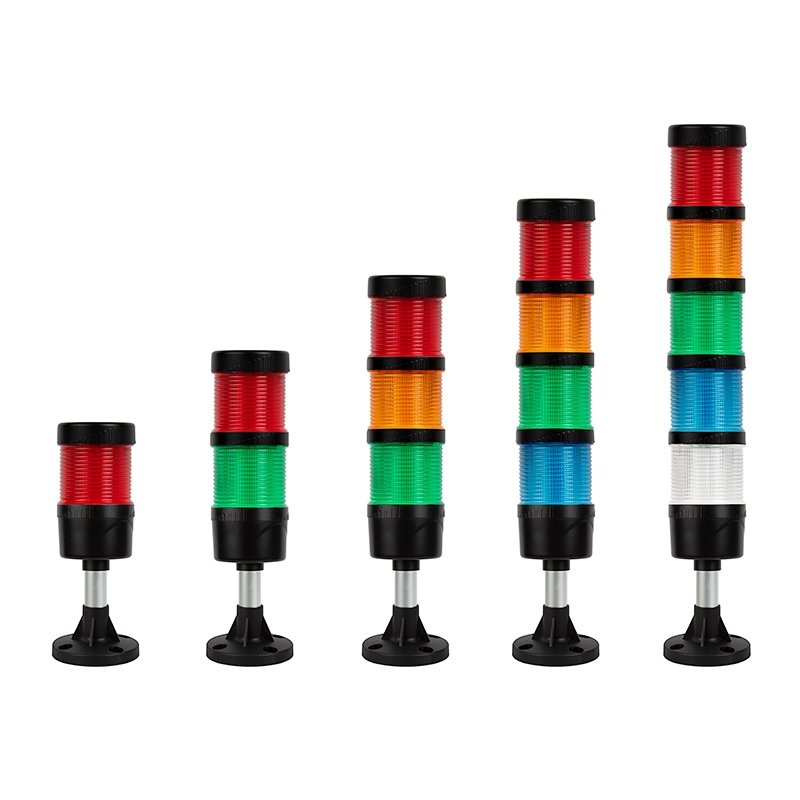

With twist-lock LED modules and an adjustable mount, the TBL series Signal Tower offers great versatility. Arrange and rearrange up to 5 colors with a simple wire plug, to track productivity in an assembly line or indicate status in a broadcast studio. Quality optics emit a 360° beam that can operate a continuous or flashing mode. The black body module contains alarm capabilities, for increased communication options in manufacturing and other workstations.
Assembly required
Product Details:
  • DIP switch controls light and buzzer options
  • Includes fixed mount with 50mm Pole
  • Includes pigtail connection
  • Includes matching black flanges between each module
  • Rated IP53 against dust and moisture
  • 50000 hours L70 lifespan
2 Years
2 Years
Super Bright LEDs, Inc. offers a 2-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More


Ambient Operating Temperature -20~+45 °C (-4~+113 °F)
Dimmable No
Environmental Rating Non-weatherproof
Finish Black
Input Connection Type 10 Pin Connector
IP Rating IP53
Rated Life (L70) 50000 Hours
Mount Type Fixed Flange Base
Product Materials ABS, Polycarbonate
Warranty 2 Year
Print Specifications
Swipe left to see additional specifications
Part NO LED Color Operating Voltage
TBL-R60-D120-PB-50 Red 120 VAC
TBL-R60-D24-PB-50 Red 24 VDC
TBL-RG60-D120-PB-50 Red/Green 120 VAC
TBL-RG60-D24-PB-50 Red/Green 24 VDC
TBL-RYG60-D120-PB-50 Red/Yellow/Green 120 VAC
TBL-RYG60-D24-PB-50 Red/Yellow/Green 24 VDC
TBL-RYGB60-D120-PB-50 Red/Green/Yellow/Blue 120 VAC
TBL-RYGB60-D24-PB-50 Red/Green/Yellow/Blue 24 VDC
TBL-RYGBW60-D120-PB-50 Red/Green/Yellow/Blue/White 120 VAC
TBL-RYGBW60-D24-PB-50 Red/Green/Yellow/Blue/White 24 VDC
