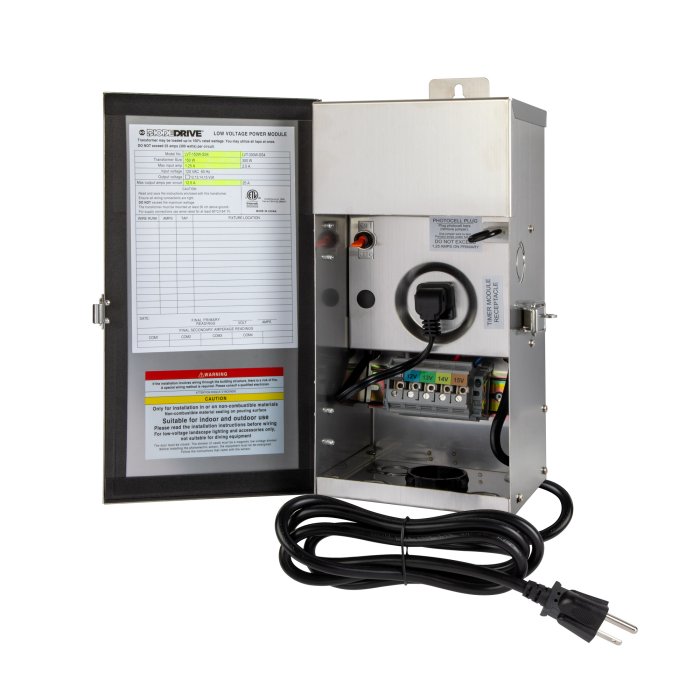

DiodeDrive 150W Low Voltage Stainless Steel Transformer - Multi-Tap 12V / 13V / 14V / 15V Output - Optional Photocell
Features
- Multi-tap for longer landscape runs without voltage drop
- Optional plug-and-play photocell for dusk-to-dawn operation
- Stainless steel housing protects against outdoor conditions
- Compatible with mechanical timer and a digital timer
- Fully encapsulated toroid core
- ETL Listed for indoor and outdoor applications
Overview
Product Details:
- Stainless steel transformer construction
- Overload and short circuit protection
- Input 120 VAC, Output 12V, 13V, 14V, and 15V AC
- Output current: 12.5 Amps total
- 1/2" knockouts - three on the bottom, one on the side
- Transformer is ETL Listed; Photocell is UL Listed
- 5-year warranty
LVT-xW-SSx User Manual
Specifications
| Ambient Operating Temperature Range | -45~+45 °C (-49~+113 °F) |
|---|---|
| Brand | DiodeDrive |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact, energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else who may be involved confidence that the product is safe and will work well in their application. UL and ETL certifications relate to safety and installation and are the most common for power supplies. |
ETL Listed |
| Dimmable | No |
|
Dimming Control
Dimming Control
TRIAC Dimming: This is the most commonly recognized dimming type, with TRIAC Dimmers found in most Home Centers and hardware stores. TRIAC (TRIode for Alternating Current) dimmers operate by modifying the voltage waveform, reducing the amount of power input to the device being controlled. Reducing the input power will result in a corresponding reduction in a power supply's output voltage/current or a decrease in the lumen output of a light fixture. TRIAC dimmers come in two variations: MLV and ELV.
0-10V Dimming: This type of dimming control is most commonly found in commercial applications. It works by varying a voltage from 0 to 10 VDC on dedicated dimming wires. The output of a power supply or light fixture is proportional to the voltage applied. Pulse-Width Modulation (PWM) Dimming: This dimming control adjusts output by rapidly turning the output on and off at a fixed frequency. The proportion of on-time to total time sets the dimming percentage. Potentiometer Dimming: Potentiometer dimming varies the output using a variable resistor, or potentiometer, to set the dimming level. |
Non-Dimmable |
|
Environmental Rating
Environmental Rating
|
Waterproof |
| Input Connection Type | Screw Terminal |
| Input Voltage | 120 VAC |
| Max Input Current | 1.25 A |
|
IP Rating
IP Rating
|
IP65 |
| Material | Stainless Steel |
| Max Output Current | 12.5 A |
| Multi-Tap | Yes |
|
Output Power
Output Power
A power supply's power consumption is measured in watts and refers to the maximum amount of power it is capable of delivering. For best results, choose a power supply that offers a minimum of 20% wattage overhead for your application. Wattage overhead ensures that your project will function correctly, extends the life of the power supply, and offers greater design flexibility by allowing for project expansion. |
150 Watts |
| Output Voltage | 12/13/14/15 VAC |
| Product Weight | 13.0 lb (5.9 kg) |
| Timer | Optional |
| Warranty | 5 Year |
| Part NO | Photocell Options |
|---|---|
| LVT-150W-SS4 | No Photocell |
| LVT-150W-SS4-PC | Includes Photocell |
