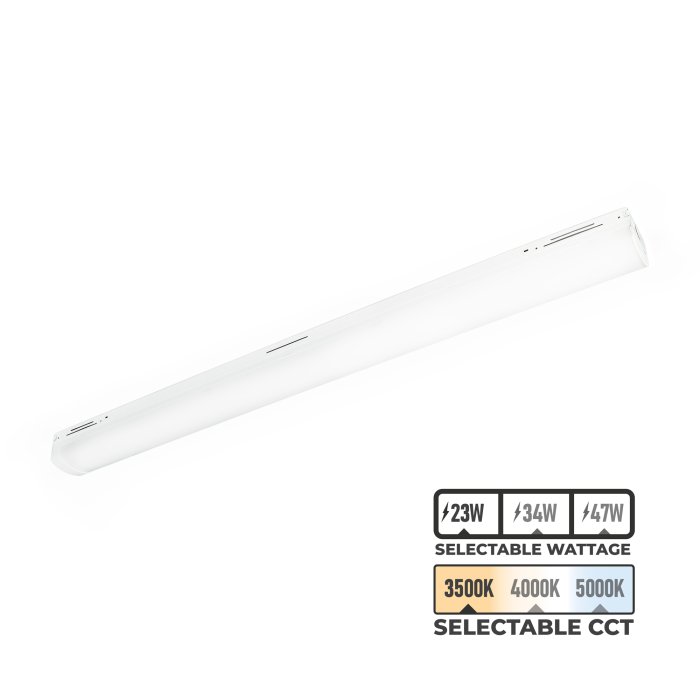

MaxLite 4ft Linear Strip GEN 3 - Control Ready - Selectable Wattage - Selectable CCT - Up To 6,580 Lumens - 23W / 34W / 47W - 3500K / 4000K / 5000K
Part Number:
LS3-4U23WCSCR
Manufacturer Part Number:
$76.99
ea.
Was
In Stock
Features
- Controls Ready – can be paired with cMax controls nodes
- Selectable CCT and Wattage for custom light output
- 0-10V dimming capabilities
Overview
This LS Series Linear Strip (LS3 Series) by Maxlite features field-selectable wattage, field-selectable CCT, and field-installable controls. The 4' fixture provides nine combinations of color temperatures, wattages, and optional c-Max controls. Ideal for contractors, one product can replace 9 different SKUs, decreasing excess stock. Maxlite's Controls Ready (CR) fixtures have quick and easy in-field installation when paired with an optional Controls Node. The LS3 Series can be installed in a variety of commercial, industrial, retail, and residential application needs, including storage/utility, workshop, task, or general area lighting.Â
Product Details:
- Steel sheet metal housing and PMMA lens
- 0-10V dimming
- Equivalent to a fixture using three 32W 4-foot T8 tubes
- Surface or suspension mount
- 120-277 VAC
- Certified by UL
- DLC 5.1 Premium or Standard (based on application)
- 10-year standard warranty with labor allowance
Warranty Limitations: Product must be rated for application per the Product Data Sheet (PDS); operated ≤16 hrs; in ambient temperatures -4°F to 77°F. The product has a warranty of five years if ambient operating temperatures fall outside the -4°F to 77°F range. Up to $25/unit; registration is required. Additional coverage may be available for purchase; contact MaxLite. Excludes EM/MS versions; component warranty applies.
LS3-4U23WCSCR Specification Sheet
LS3-4U23WCSCR IES Files Applications:
- Commercial Buildings
- Corridors
- Distribution Centers
- Gas Stations
- Industrial Facilities
- Municipal Facilities
- Offices
- Restaurants
- Retail Shops
- Storage & Utility Closets
- Storage Facilities
This product has been certified by Underwriter Laboratories to their engineering and safety standards.
Products with a Federal Communications Commission (FCC) label meet all requirements and rules set forth by the FCC and won't cause interference with other electronic devices. According to FCC's website, "The Federal Communications Commission regulates interstate and international communications by radio, television, wire, satellite and cable in all 50 states, the District of Columbia and U.S. territories." Products that generate radio frequency (RF) energy, such as RF remote controls and certain LED light bulbs, are tested to ensure that they are within the FCC's guidelines and limits and do not cause harmful interference.
Super Bright LEDs, Inc. offers a 10-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Specifications
| Ambient Operating Temperature | -20~+50 °C (-4~+122 °F) |
|---|---|
| Beam Angle | 110° |
| Brand | MaxLite |
|
CCT
CCT
|
3500K, 4000K, 5000K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
Certified by UL, FCC |
|
CRI
CRI
|
80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
192/283/392 mA @ 120 VAC, 83/123/170 mA @ 277 VAC |
| Dimensions | 4ft |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
0-10V |
| Efficacy | 155 lm/W |
|
Environmental Rating
Environmental Rating
|
Non-weatherproof, Suitable for Damp Locations |
| Equivalency | 3-lamp 32 W T8 Tubes |
| Finish | White |
| Input Connection Type | Pigtail |
|
IP Rating
IP Rating
|
IP20 |
| LED Color | Warm White, Natural White, Cool White, Selectable CCT |
| Rated Life (L70) | 100000 Hours |
| Length | 48 in. (4 ft) |
| Lens Color | Frosted |
| Lens Type | PMMA |
| Linkable | No |
| Lumens | 3565 Lumens, 5032 Lumens, 6580 Lumens |
| Microwave Motion Sensor | Optional |
| Operating Voltage | 120-277 VAC |
| Power Factor | ≥0.9 |
| Product Materials | PMMA Lens, Steel Housing |
| Product Weight | 4.7 lb (2.1 kg) |
| UL File Number | E361011 |
| Warranty | 10 Year |
| Wattage | 23 Watts, 34 Watts, 47 Watts |
