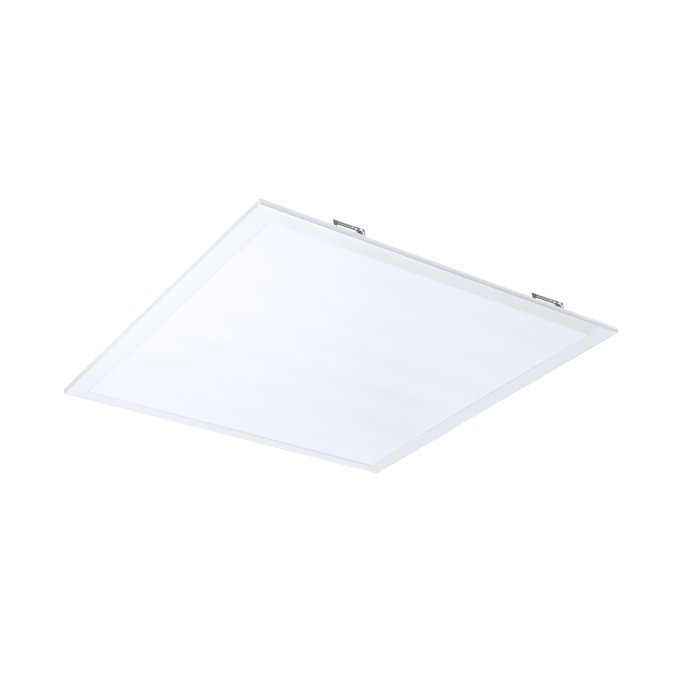

2'x2' LED Backlit Panel Light - 35W - Tunable CCT - Up to 4,375 Lumens - Dimmable
Part Number:
LPDBL-TWR22-35-x
Manufacturer Part Number:
$50.39
ea.
SAVE 20%
Was
$62.99
ea.
Was
Similar Products Available Today
Features
- Fine-tunable CCT: 3000K-5000K
- Wireless 2.4 GHz operation within 30 meters
- Backlit panel design and frosted lens for uniform light distribution
- Easy drop ceiling, hanging, or surface mount installation
- High efficacy of 125 lm/W, replacing a 2-lamp 32-watt T8 tube fixture
- Control multiple lights with one remote or wall switch
- DLC 5.1 Premium
Ask About This Product
Get instant AI-powered answers
Try asking:
Most Popular Compatible Products
Overview
The 2'x2' LED Backlit Panel Light features tunable white selections with wireless operation by remote, wall switch, or both. A single remote or wall switch can control individual lights or groups of lights, eliminating the need for multiple controllers. This dimmable fixture produces a 120° beam with up to 4,375 lumens, while its backlit panel design and frosted polycarbonate lens ensure uniform, hotspot-free light distribution. The white aluminum frame's safety tabs enable secure installation into a standard T-grid drop ceiling. The optional Surface Mount Kit and hanging kit (sold separately) provide additional installation solutions for a variety of applications.
Note: A compatible remote or wall switch is required for CCT and dimming adjustment.
Note: A compatible remote or wall switch is required for CCT and dimming adjustment.
Product Details:
- Steel housing with white aluminum frame
- Frosted polycarbonate lens
- IP20, suitable for damp locations
- 0-10V wireless dimming
- 120-277 VAC
- Surge protection: L-N: 1 kV, L/N-PE: 2 kV
- Certified by UL
- 5-year warranty
- DLC 5.1 Premium
Documents
LPDBL User Manual
LPDBL-TWR22-35 40K IES File Dimensional Drawings
Applications:
- Drop Ceilings
- Educational Facilities
- Hospitality
- Hospitals
- Offices
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
This product has been certified by Underwriter Laboratories to their engineering and safety standards.
Products with a Federal Communications Commission (FCC) label meet all requirements and rules set forth by the FCC and won't cause interference with other electronic devices. According to FCC's website, "The Federal Communications Commission regulates interstate and international communications by radio, television, wire, satellite and cable in all 50 states, the District of Columbia and U.S. territories." Products that generate radio frequency (RF) energy, such as RF remote controls and certain LED light bulbs, are tested to ensure that they are within the FCC's guidelines and limits and do not cause harmful interference.
This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.
Tunable White
Tunable White bulbs and strips allow users to adjust the color temperature of the light output, ranging from warm to cool white, to suit different settings and preferences. This adjustability is achieved by mixing different proportions of white LEDs with varying color temperatures within a single fixture.
Ask About This Product
Get instant AI-powered answers
Try asking:
Products Mentioned
Press Enter to send, Shift+Enter for new line
Responses are AI-generated from product documentation. For confirmation or more information, contact Super Bright LEDs customer service.
Conversations are recorded for quality assurance. More information
Ask About This Product
Get instant AI-powered answers
Try asking:
Products Mentioned
Press Enter to send, Shift+Enter for new line
Responses are AI-generated from product documentation. For confirmation or more information, contact Super Bright LEDs customer service.
Conversations are recorded for quality assurance. More information
Ask About This Product
Get instant AI-powered answers
Try asking:
Specifications
| Ambient Operating Temperature | -20 to 40 °C (-4 to 104 °F) |
|---|---|
| Beam Angle | 120° |
| Brand | Super Bright LEDs |
|
CCT
CCT
 |
Tunable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
Certified by UL, DLC Premium, FCC |
|
CRI
CRI
 |
80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
140 mA @ 277 VAC, 320 mA @ 120 VAC |
| Dimensions | 2ft x 2ft |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
0-10V, Remote Controlled |
| Efficacy | 125 lm/W |
|
Environmental Rating
Environmental Rating
Suitable for Dry Locations This marking indicates that you can use the light or component in a location not normally subject to dampness. This may include locations exposed to temporary dampness, such as a building under construction, provided that ventilation is adequate to prevent moisture accumulation. Use these fixtures in living rooms, bedrooms, offices, hallways, and similar areas. The marking may be "SUITABLE FOR DAMP LOCATIONS" or "DRY LOCATIONS ONLY."Suitable for Damp Locations Fixtures marked “SUITABLE FOR DAMP LOCATIONS” or “SUITABLE FOR WET LOCATIONS” can be installed in damp locations. A damp location is an exterior or interior location regularly or occasionally subject to moisture condensation on or around electrical equipment. It includes partially protected places such as covered patios and porches. Damp locations include any regularly muggy or humid area, such as above a kitchen sink or stove, and appropriately vented bathrooms near the tub or shower.Suitable for Wet Locations Fixtures and components marked "SUITABLE FOR WET LOCATIONS" can be installed in wet or damp locations. A wet location is anywhere water or other liquids may drip, splash, or flow on or against electrical equipment. A light marked "SUITABLE FOR WET LOCATIONS" may have additional markings that tell where and at what height it can be safely mounted. Uncovered outdoor areas like decks, gazebos, walls, and typical landscape lighting sites all fall under the heading of wet locations. |
Non-weatherproof, Suitable for Damp Locations |
| Equivalency | 2-lamp 32W T8 Tubes |
| Finish | White |
| Input Connection Type | Pigtail |
| Integrated Surge Protection | 1 kV (L-N), 2 kV (L/N-PE) |
|
IP Rating
IP Rating
 |
IP20 |
| LED Color | Warm White, Natural White, Cool White, Tunable White |
| Rated Life (L70) | 50000 Hours |
| Lumens | 4375 Lumens |
| Mount Type | Drop Ceiling |
| Operating Voltage | 120-277 VAC |
| Product Materials | Aluminum Frame, Polycarbonate Lens, Steel Housing |
| Product Weight | 4.3 lb (2.0 kg) |
| UL File Number | E469515 |
| Warranty | 5 Year |
| Wattage | 35 Watts |
