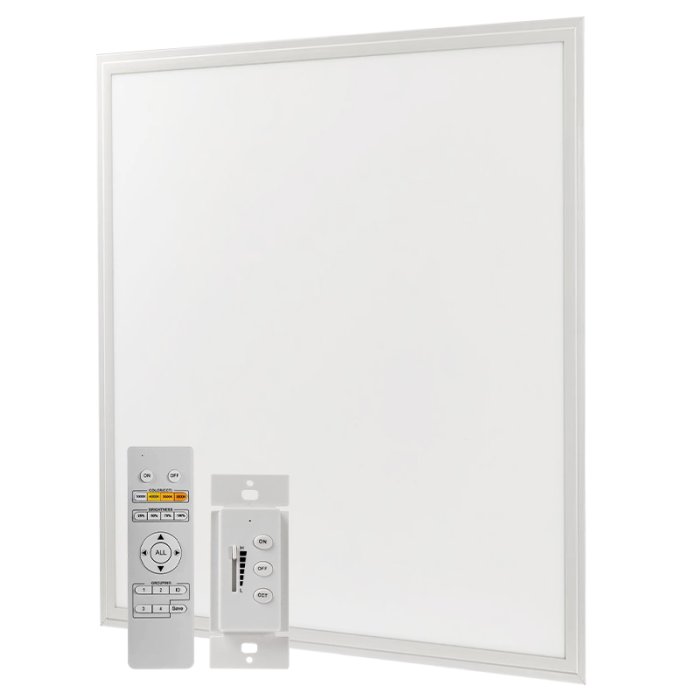

Name: 2'x2' LED Even-Glow® Tunable White LED Light Panel - 40W LED Panel Light Fixture - 4,300 Lumens - Dimmable
Brand: Super Bright LEDs
SKU: LPD-TWR22-40-x
Price: 79.98 USD
Availability: InStock
Rating: 4.8 (11 reviews)

Overview

Description

The 2'x2' surface-mount LED light panel is a perfect replacement for T8 fixtures. Even-Glow® technology creates a uniform distribution of light while the optical diffuser eliminates any visible hotspots. For color temperature control, use a compatible remote or wall controller. Choose between only using the compatible remote or wall control, or using both simultaneously to control these panels. Additionally, one remote and/or wall controller can control multiple panels at one time, which eliminates the need to purchase more than one of each. Use the optional surface mount kit to install on drywall ceilings or to wall mount the light panel. Install the panel light in new construction or upgrade existing fluorescent lighting.

Product Details:

Hadware included for drop ceiling mount
Optional surface mount kit sold separately
Dimmable 0-10V with optional remote or wall dimmer
100-277 VAC input
Certified by UL
5-year warranty

This product has been certified by Underwriter Laboratories to their engineering and safety standards.

Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Specifications

Ambient Operating Temperature	-20~+45 °C (-4~+113 °F)
Beam Angle	120°
Brand	Super Bright LEDs
Certifications/Compliance Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here.	Certified by UL
CRI	80+
Current Draw	330 mA
Dimensions	2ft x 2ft
Dimmable	Yes
Dimming Type TRIAC Dimming: Triode for alternating current (TRIAC) dimming is used to control high-voltage dimmable power supplies such as Magnitude Dimmable Power Supplies. These dimmable power supplies work by varying the power on the AC input side of the power supply by means of a TRIAC dimmer. This change in power on the AC input side will vary the voltage on the DC output side and control the intensity of the LEDs. TRIAC dimmers are common hardware store and household dimmers, which include brand names such as Lutron and Leviton. Pulse-Width Modulation Dimming: Pulse-width modulation (PWM) dimming can be used to control dimmable power supplies such as Mean Well HLG Series and Mean Well LPF Series. This type of dimming control adjusts the output current based on the duty cycle. As the duty cycle increases, current will increase and the LEDs will be brighter. Conversely, if the duty cycle decreases, the current will decrease and the LEDs will be dimmer. Pulse-width modulation for these drivers is based on a 10V signal level with a frequency between 100Hz~3KHz. The MCBRF-4A or MLD-5A are compatible for this application. Resistive Dimming: Resistive dimming can be used to control dimmable power supplies such as Mean Well HLG Series. The resistance can be fixed or variable. If a fixed level of dimming is required, a simple resistor is all that is needed to dim the LEDs to a particular level. If a varying dimmable level is desired, a potentiometer can serve this purpose. By changing the resistance value of the potentiometer, the output current of the power supply changes, and the LED intensity changes. Controlling a single power supply will require a 100K ohm potentiometer for 100% intensity (100K ohm) to approximately 10% intensity (10K ohm) based on where the wiper is positioned. 1-10V Dimming: 1-10V dimming can be used to control dimmable power supplies such as 12V Mean Well HLG-40~240 Series or 24V Mean Well HLG-40~240 Series. This type of dimming control is an older style for compatible dimmable power supplies and is being replaced with 0-10V dimmer control. 1-10V dimming control works by varying the voltage from 1-10 VDC. A 10-volt signal on the dimming wire will allow for maximum current to flow to the LEDs for maximum intensity. A 1-volt signal on the dimming wire allows 10% of the current to flow from the power supply, which generates approximately 10% of the maximum intensity for the LEDs. 0-10V Dimming: 0-10V dimming can be used to control dimmable power supplies such as 12V Mean Well HLG-600 Series or 24V Mean Well HLG-600 Series. This type of dimming control is the most popular and newest style for compatible dimmable power supplies. 0-10V dimming control works by varying the voltage from 0-10 VDC. A 10-volt signal on the dimming wire will allow for maximum current to flow to the LEDs for maximum intensity. A 0.6-volt signal on the dimming wires allows 6% of the current to flow from the power supply dimming the LEDs to approximately 6% of full intensity. 0-10V dimmers can be found here.	0-10V , Remote
Efficacy	108 lm/W
Environmental Rating	Non-weatherproof, Suitable for Damp Locations
Equivalency	2-lamp 32W T8 Tubes
Frame	White Aluminum
Input Connection Type	Pigtail
IP Rating	IP20
LED Color	Cool White, Natural White, Warm White, Selectable CCT
Intensity	4300 Lumens
Mount Type	Drop Ceiling
Operating Voltage	120-277 VAC
Power Consumption	40 Watts
Product Materials	Aluminum
Rated Life (L70)	50000 Hours
Shipping Exclusions and Details Shipping exclusions apply to some products, making them ineligible for free shipping. Any order with a combined weight of over 150 pounds or containing an excluded item will be excluded from free shipping automatically. One or more exclusions may apply to the same product as well. Exclusions per item may include, but are not limited to, the following: • Any package with any two dimensions of the package over 30 inches. • Any package with a single side of the package over 42.3 inches. • Any package with a total combined length of the longest side added to 2 times the second and third longest sides over 130 inches. (L + 2H + 2W) • Any package with a weight over 50 pounds.	Excluded From Free Shipping
UL File Number	E469515
Warranty	5 Year

Print Specifications

Accessories & Power Supplies

All Accessories

Wiring

Emergency Drivers

Mounting

Remotes

Switches

Accessories Links

Accessory Category

Accessory Type:

$7.99 ea.

Power Cord for Power Supplies - Power Cord for Power Supplies Part Number: _POWERCORD
In stock

Standard grounded power cord for plugging power supplies into standard 115VAC receptacle. 18 gauge, SJT type 3 conductor, 6 foot length.
$0.09 ea.

22-16 AWG Grey 3M Twist-On Wire Connector Part Number: WN-2216
In stock

Use these 3M 22-16 AWG grey wire connector for closed-end connections and secure splices. The UL-Listed twist-on wire connectors tighten with out ratcheting and feature a deep skirt to prevent bare wire from being exposed.
$8.99 ea.

LED Surge Protector - 5kA Max Capacity - 120-277 VAC - QR-SPD07-10 Part Number: QR-SPD07-10
In stock

In the event of a voltage surge or electrical failure, LED Surge Protector is an added defense for indoor or outdoor LED fixtures. Take advantage of the already safe, long lifespan of LEDs with this additional accessory. It provides a nominal discharge current of 5kA, and a maximum discharge current of 10kA for 120-277V drivers.
$0.59 per Foot

SJT Cable - Black Jacketed 18 Gauge Three Conductor Power Wire - 18 AWG Power Wire Part Number: WP18-35J
In stock

Parallel bonded three conductor 18 gauge 3x18 stranded power wire for installations. This standard SJT cable is ideal for high voltage applications. Price per foot.
$5.99 ea.

515PV Straight Blade Plug - 515PV Part Number: 515PV
In stock

This 3-prong straight blade plug (515PV) is ideal for creating a grounded plug-in option for lights that use 18-AWG to 12-AWG wire. The 15-amp (max), 125-volt (max) plug is constructed of durable PVC, and its backwire clamps are designed to fit tightly around 3-conductor stripped wire.

$22.99 ea.

2x2 Surface Mount Kit for Panels - LP-22-SMK Part Number: LP-22-SMK
In stock

Use this 2x2 surface mount kit to easily surface mount your 2x2 panel.
$9.99 ea.

Hanging Kit for LED Panel Lights - Suspension Mount - LP-HK Part Number: LP-HK
In stock

Hanging Kit includes a pair of adjustable 3-1/4' stainless steel braided cables, four swivel snap hooks, and mounting hardware. It attaches to the safety T-clips on the back of LED Panels to hang from standard hard ceilings, as well as exposed or unfinished ceilings.

$9.99 ea.

Remote Control for Tunable White LED Panel Lights - LPD-TWHR Part Number: LPD-TWHR
In stock

Use this remote to control your 2' x 4' and 2' x 2' Tunable White LED Panel Lights. The remote features buttons for direct color temperature and brightness (25%, 50%, 75%, and 100%) selection, and you can use the remote's top buttons for more customized brightness and color.

$9.99 ea.

Wireless Wall Switch for Tunable White LED Panel Lights - LPD-TWWR Part Number: LPD-TWWR
In stock

Use this wall switch for your tunable white LED panel lights. Easily control brightness and color temperature with this wall switch that simply mounts to the wall in place of a regular light switch.
