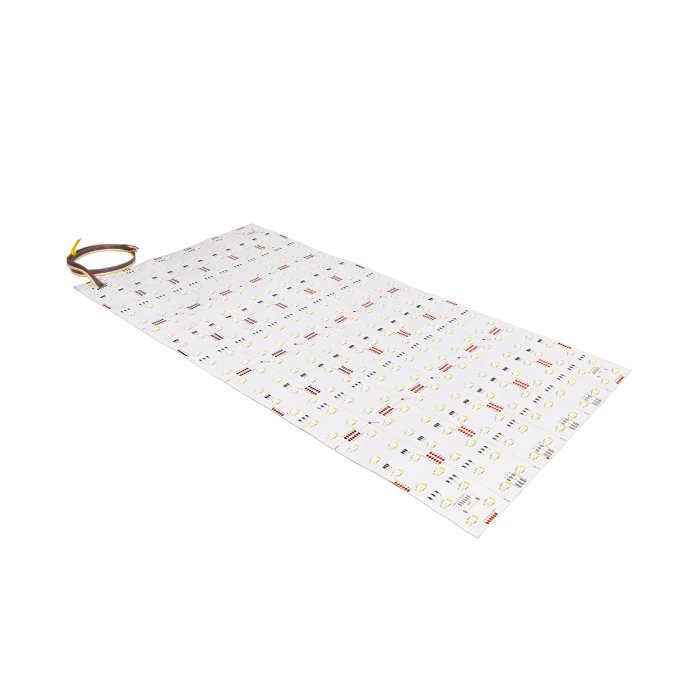

24V Flexible LED Light Sheet - 24” x 12” - IP20 - RGB+CCT - 2700K-6500K
Part Number:
LLS-G90-AC36A-50C02-24V
Manufacturer Part Number:
$179.99
ea.
Was
Out of Stock
Backorder Available via Quote
Features
- RGB and tunable white (2700K-6500K) with color-changing and dimming capabilities
- High 90+ CRI enhances color vibrancy and accuracy
- Flexible and customizable design adapts to various lighting needs
Frequently Bought Together
Total Price:
Loading...
Related Products
Overview
The LLS Series Flexible RGB+Tunable CCT LED Light Sheet is a versatile solution for creating unique lighting displays in channel letters, displays, and sign lighting. Each sheet features 864 high-density LEDs for bright, uniform illumination, offering dynamic RGB color-changing, tunable white (2700K–6500K), and dimming capabilities. Each 24” x 12” flexible sheet is divided into 24 segments, each measuring 6” x 2” and containing 36 LEDs providing a high 90+ CRI. The light sheet can be tailored to fit irregular shapes and wrap around corners for seamless integration. Installation is made easy with a 3M™ adhesive backing or screw mounting at designated points for secure placement.
Please refer to the specification sheet for cutting recommendations. Using only the pre-marked lines when cutting the sheet is essential to maintaining electrical contact.
Please refer to the specification sheet for cutting recommendations. Using only the pre-marked lines when cutting the sheet is essential to maintaining electrical contact.
Product Details:
- PWM Dimmable
- 120° beam angle
- Max run with Class 2 wiring: 2 Sheets
- Enclosure rated: Min. 1.18" spacing from LEDs to Diffuser
- 19” pigtail connection
- 24 VDC
LLS-G90-AC36A-50C02-24V Specification Sheet Applications:
- Backlighting
- Billboards
- Channel Letters
- Displays
- Photography Lighting
- Retail Shops
- Showcases
- Sign Lighting
- Translucent Materials
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
Specifications
| Ambient Operating Temperature | -20 to 45 °C (-4 to 113 °F) |
|---|---|
| Certifications/Compliance | UL Listed |
|
Color Temperature
Color Temperature
Correlated Color Temperature is the hue, or tint of white to expect from a light source and is measured in kelvin. Lower numbers give off a warmer white that is closer to candle light, and is good for relaxed and cozy spaces. Higher numbers give off a cooler white light that will appear more blueish. While values to the middle of the spectrum give off a more neutral or natural white light that is similar to daylight. |
Tunable CCT |
| CRI | 90+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
2.08 A |
| Dimensions | 24in x 12in |
| Dimmable | Yes |
| Dimmer Type | PWM |
| Efficacy | 116 lm/W |
| Enclosed Fixture Rated | Yes |
|
Environmental Rating
Environmental Rating
|
Non-weatherproof, Suitable for Dry Locations |
| Finish | White |
| Input Connection Type | Pigtail |
|
IP Rating
IP Rating
|
IP20 |
|
LED Beam Angle
LED Beam Angle
Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.
|
120° |
| LED Color | RGB+Tunable CCT |
| LED Type | 2835 SMD, 5050 SMD |
| LEDs per Segment | 36 |
| LED Lifetime | 50000 Hours |
|
Max Run (Class 2)
Max Run (Class 2)
The Max Run of an LED strip is dependent on two things, voltage and density. 24 volt strips in most instances will give you a longer run than a 12 volt strip. However the LED density of the strip will have an effect on the maximum run. If your install needs to extend beyond a strips Max Run additional power feeds can be run back to your power supply.
|
2 Sheets |
|
Operating Voltage
Operating Voltage
LED Strip Light Voltages – What You Need to KnowChoosing the correct voltage for your LED tape lights ensures optimal performance, safety, and ease of installation. Here’s a quick guide to help you decide:
12 Volt ACCommon in landscape lighting setups, 12 VAC strips work with standard low-voltage AC transformers and are best suited for fixed outdoor applications such as landscape, hardscape, and deck lighting projects.
12 Volt DCThese strip lights are a go-to choice for smaller projects and mobile applications like RVs, boats, and vehicles. They are easy to work with, highly flexible, and perfect for short runs up to ~16 ft.
24 Volt DCIdeal for residential and commercial projects, 24 VDC strips are becoming the new industry standard. They offer longer run lengths (up to ~32 ft) with reduced voltage drop and increased efficiency.
36 Volt DCOffering extended runs with consistent brightness and reduced power loss across longer distances, 36 VDC strips are well suited for medium to large-scale installations.
48 Volt DCThese strips deliver optimal performance and the longest runs (40+ ft) of DC strip lights. Their ultra-low current draw minimizes heat and allows for thinner, more efficient wiring.
120 Volt ACThese high-voltage strips offer a plug-and-play strip lighting solution compatible with standard household wall outlets. They operate free from external drivers, simplifying project design and installation. They offer the longest max run (50–150+ ft) without a noticeable voltage drop. They are best suited for large areas, architectural lighting, and outdoor use. |
24 VDC |
| Segment Size | 6 in. x 2 in. (152.4 mm x 50.8 mm) |
| Wattage | 50 Watts |
