24V LED Light Sheet - 18.9” x 9.5” - IP20 - XH Pin Connection - 20mm Segments - 3000K / 4000K / 5000K
Part Number:
LLS-AxK80-C1A-30A01-24V (XH)
Manufacturer Part Number:
Starting at
$79.99
ea.
Starting at
Was
In Stock
Features
- Customizable sheet of LEDs to fit complex shapes and signage
- On-board XH connections for plug-and-play use
- 1.18" enclosure rating for low clearance spaces
- Use the 3M™ adhesive backing for easy installation
Frequently Bought Together
Total Price:
Loading...
Related Products
Overview

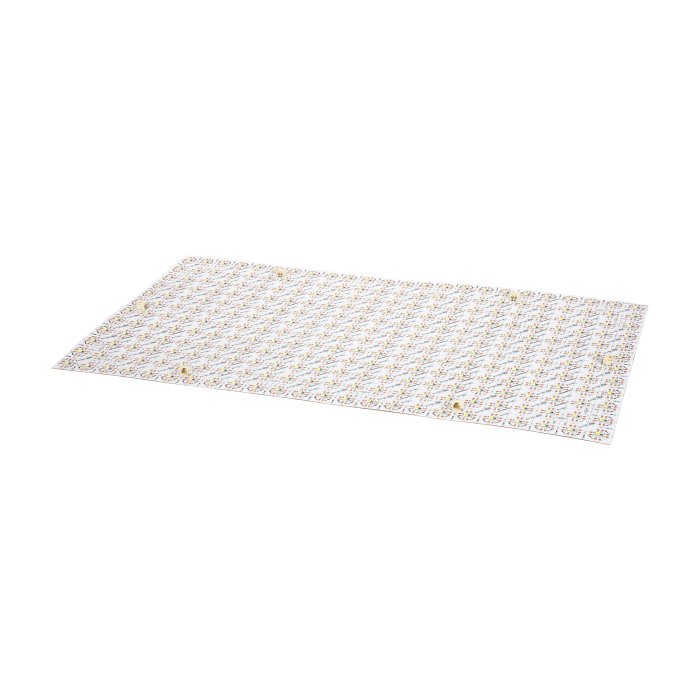

Trim and cut the 24V LED light sheet to fit unique shapes or wrap corners. This flexible sheet contains 24 columns x 12 rows of segments that can fit any shape by cutting along the horizontal, vertical, or diagonal lines. The segments have cut lines along the board to shape the light sheet to the application, ideal for signs or backlighting. On-board XH connectors eliminate soldering and simplify installation. To connect multiple light sheets, use the included interconnect cable. To install, use the 3M™ adhesive backing, or fasten it with screws at the indicated spots.
Product Details:
- Segment size: 0.79" x 0.79"- 288 segments per sheet
- Max Run with Class 2 wiring: 3 sheets
- Input connection: 2-pin XH connector
- Includes one 0.5m pigtail connector and one 8cm interconnect
- 1.18" (30mm) enclosure rating
- PWM dimmable
- 24 VDC
- UL Listed
- 5-year warranty
Documents
LLS Specification Sheet
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Specifications
| Ambient Operating Temperature | -20 to 45 °C (-4 to 113 °F) |
|---|---|
| Certifications/Compliance | UL Listed |
| CRI | 80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
1.25 A |
| Dimensions | 18.9in x 9.5in |
| Dimmable | Yes |
| Dimmer Type | PWM |
| Enclosed Fixture Rated | Yes |
| Finish | White |
| Input Connection Type | Pigtail, XH 2-Pin Connector |
|
IP Rating
IP Rating
|
IP20 |
|
LED Beam Angle
LED Beam Angle
Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.
|
120° |
| LED Type | 2835 SMD |
| LEDs per Segment | 1 |
| LED Lifetime | 50000 Hours |
|
Max Run (Class 2)
Max Run (Class 2)
The Max Run of an LED strip is dependent on two things, voltage and density. 24 volt strips in most instances will give you a longer run than a 12 volt strip. However the LED density of the strip will have an effect on the maximum run. If your install needs to extend beyond a strips Max Run additional power feeds can be run back to your power supply.
|
3 Sheets |
|
Operating Voltage
Operating Voltage
LED Strip Light Voltages – What You Need to KnowChoosing the correct voltage for your LED tape lights ensures optimal performance, safety, and ease of installation. Here’s a quick guide to help you decide:
12 Volt ACCommon in landscape lighting setups, 12 VAC strips work with standard low-voltage AC transformers and are best suited for fixed outdoor applications such as landscape, hardscape, and deck lighting projects.
12 Volt DCThese strip lights are a go-to choice for smaller projects and mobile applications like RVs, boats, and vehicles. They are easy to work with, highly flexible, and perfect for short runs up to ~16 ft.
24 Volt DCIdeal for residential and commercial projects, 24 VDC strips are becoming the new industry standard. They offer longer run lengths (up to ~32 ft) with reduced voltage drop and increased efficiency.
36 Volt DCOffering extended runs with consistent brightness and reduced power loss across longer distances, 36 VDC strips are well suited for medium to large-scale installations.
48 Volt DCThese strips deliver optimal performance and the longest runs (40+ ft) of DC strip lights. Their ultra-low current draw minimizes heat and allows for thinner, more efficient wiring.
120 Volt ACThese high-voltage strips offer a plug-and-play strip lighting solution compatible with standard household wall outlets. They operate free from external drivers, simplifying project design and installation. They offer the longest max run (50–150+ ft) without a noticeable voltage drop. They are best suited for large areas, architectural lighting, and outdoor use. |
24 VDC |
| Output Connection Type | XH 2-Pin Connector |
| Segment Size | 0.79 in. x 0.79 in. (20 mm x 20 mm) |
| Wattage | 30 Watts |
| Part NO |
Color Temperature
Color Temperature
Correlated Color Temperature is the hue, or tint of white to expect from a light source and is measured in kelvin. Lower numbers give off a warmer white that is closer to candle light, and is good for relaxed and cozy spaces. Higher numbers give off a cooler white light that will appear more blueish. While values to the middle of the spectrum give off a more neutral or natural white light that is similar to daylight. |
Efficacy |
Environmental Rating
Environmental Rating
|
LED Color |
|---|---|---|---|---|
| LLS-A30K80-C1A-30A01-24V (XH) | 3000K | 88 lm/W | Non-weatherproof | Warm 3000K |
| LLS-A40K80-C1A-30A01-24V (XH) | 4000K | 92 lm/W | Non-weatherproof, Suitable for Dry Locations | Natural 4000K |
| LLS-A50K80-C1A-30A01-24V (XH) | 5000K | 92 lm/W | Non-weatherproof, Suitable for Dry Locations | Cool 5000K |
