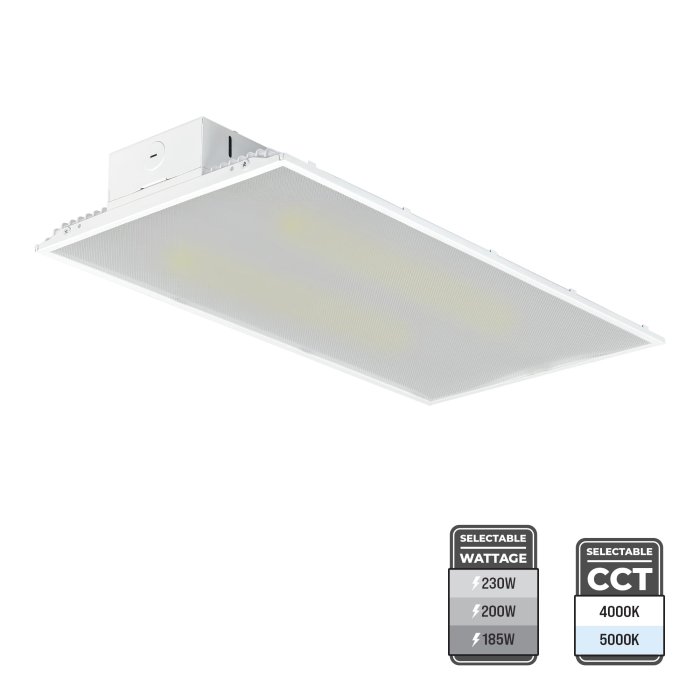

230W Max LED 1.5ft Linear High Bay - Selectable Wattage - Up to 750W MH Equivalent - Up to 34,500 Lumens - 4000K / 5000K
Part Number:
LHBDP4-SW2B-SP230
Manufacturer Part Number:
$122.99
ea.
Was
In Stock
Features
- Field Selectable Wattage: 185W, 200W, 230W
- Field Selectable CCT: 4000K, 5000K
- Up to 34,500 lumens in a compact design
- High efficacy of 150 lm/W
- Includes hanging kit with V-hooks and chain for suspension mounting
- DLC 5.1 Premium
Related Products
Overview
The 230W Max LED 1.64ft Linear High Bay has switches covered by a plastic plug on the back of the fixture used to select the wattage (185W, 200W, or 230W) and CCT (4000K, 5000K) during installation. It is constructed of die-cast aluminum for better heat dissipation. With its L70 lifespan, users can expect the LEDs to produce 70% of its original brightness for more than 100,000 hours. It delivers up to 34,500 lumens, is equivalent to a 750W metal halide, and has a high efficacy of 150 lm/W. Each fixture includes a hanging kit with optional pendant or surface mount kits available. Ensuring reliable performance while reducing energy costs, this linear high bay is ideal for warehouses, retail stores, and gymnasiums.
Product Details:
- 120-277 VAC
- White die-cast aluminum housing
- Polycarbonate lens
- L70 Lifespan for more than 100,000 hours of use
- 0-10V Dimming
- DLC 5.1 Premium
- 5-year warranty
Documents
LHBDP4 Specification Sheet
LHBDP4-SW2B-SP230 40K 230W IES File Applications:
- Auditoriums
- Cafeterias
- Commercial Buildings
- Distribution Centers
- Grocery Stores
- Gymnasiums
- Manufacturing Plants
- Retail Applications
- Warehouses
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.
Specifications
| Ambient Operating Temperature | -40 to 55 °C (-40 to 131 °F) |
|---|---|
| Beam Angle | 90° |
| Brand | Super Bright LEDs |
|
CCT
CCT
|
4000K, 5000K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
DLC Premium, UL Listed |
|
CRI
CRI
|
80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
2.1 A @ 120 VAC, 920 mA @ 277 VAC |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
0-10V |
| Efficacy | 150 lm/W |
| Equivalency | 750 Watt Metal Halide |
| Finish | White |
| Input Connection Type | Pigtail |
| Integrated Surge Protection | 6 kV |
|
IP Rating
IP Rating
|
IP20 |
| LED Color | Selectable CCT |
| Rated Life (L70) | 100000 Hours |
| Length | 19.7 in. |
| Lumens | 27750 Lumens, 30000 Lumens, 34500 Lumens |
| Operating Voltage | 120-277 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Aluminum Housing, Polycarbonate Lens |
| Product Weight | 6.9 lb (3.1 kg) |
| UL File Number | E366643 |
| Warranty | 5 Year |
| Wattage | 185 Watts, 200 Watts, 230 Watts |
| Wire Gauge | 18 AWG |
