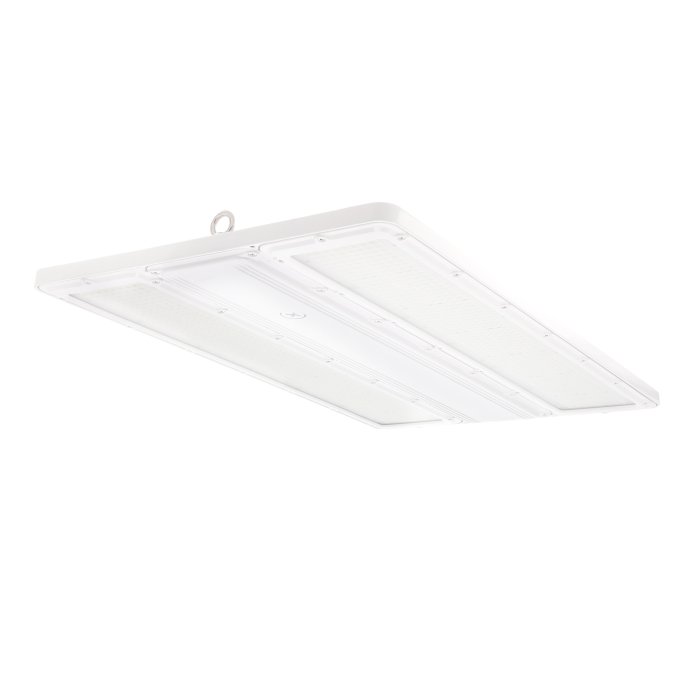

300W Max 2ft High-Temperature Linear High Bay - NSF Certified - Up to 1000W MH Equivalent - Selectable CCT and Wattage - Up to 49,000 Lumens
Part Number:
LHBDH-SW3C300S-BML1WH
Manufacturer Part Number:
$352.99
ea.
Was
In Stock
Features
- High ambient operating temperature
- Tested and Certified to comply with NSF/ANSI Standard 2
- IP69K rating for high-pressure washdowns
- Field Selectable CCT: 3500K, 4000K, or 5000K
- Field Selectable Wattage: 240W, 270W, or 300W
Frequently Bought Together
Total Price:
Loading...
Related Products
NSF Certified
These NSF certified fixtures are IP69K rated and offer outstanding durability in clean, high-demand environments. Perfect for food processing, industrial settings, and washdown areas.
High Temp Rated
Designed to perform in extreme conditions, these linear high bay lights are built for durability and efficiency in environments with temperatures up to 65°C. They deliver consistent, high-quality illumination without compromising performance.
Selectable Wattage and CCT
Customize the light output to fit your needs with selectable wattage and CCT. Use the integrated switches to choose between 3 different wattages and color temperatures.
Overview
The 300W Max, 2ft High-Temperature Linear High Bay is certified and designed to meet strict sanitation standards. The high bay is ideal for food processing plants, high-temperature environments, beverage preparation facilities, commercial kitchens, and agriculture processing. It has a powder-coated, corrosion-resistant aluminum exterior that reduces water and debris buildup for easy cleaning. The IP69K waterproof-rated housing withstands 1,500 psi high-pressure, high-temperature washdowns necessary for strict sanitary applications. Selector switches under a removable plug on the top of the fixture allow the user to pick from three wattage output options and three color temperatures.
Easily hang the lightweight fixture with the included suspension mounting kit or use the optional U-shaped surface mount bracket. The light fixture features a sensor-ready port for an optional motion sensor to maximize energy savings with daylight and motion detection.
Easily hang the lightweight fixture with the included suspension mounting kit or use the optional U-shaped surface mount bracket. The light fixture features a sensor-ready port for an optional motion sensor to maximize energy savings with daylight and motion detection.
Product Details:
- Corrosion-resistant powder-coated aluminum housing
- Suspension mount included, surface mount U-bracket sold separately
- Increased energy savings with optional motion sensor
- 400W / 750W / 1000W MH Equivalent
- 0-10V Dimming
- 120-347 VAC
- NSF Std. 2 Certified, Certified by UL
- 5-year warranty
- Operating temperature:
- With battery backup: -40 to 65°C (-40 to 149°F)
- Without battery backup: 0 to 60°C (32 to 140°F)
LHBDH Specification Sheet
LHBDH-SW3C300S-BML1WH IES File Applications:
- Agricultural Processing Facilities
- Cold & Freezer Storage
- Factories
- Food Processing Plants
- Foundries
- High Temperature Environments
- Industrial Kitchens
- Manufacturing Plants
- Meat Processing
- Packaging Facilities
- Pharmaceutical Facilities
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
This product has been certified by Underwriter Laboratories to their engineering and safety standards.
The DesignLights Consortium® (DLC®) partners with energy-efficiency groups and utility companies to establish a set of standards for commercial LED light fixtures. The product is tested and must meet quality, energy-efficiency, and performance requirements to be added to the DLC's Qualified Products List. For more information, click here. To view all of our DLC® listed products, click here
Specifications
| Ambient Operating Temperature | -40 to 65 °C (-40 to 149 °F) |
|---|---|
| Beam Angle | 90° x 90° |
| Brand | Super Bright LEDs |
|
CCT
CCT
 |
3500K, 4000K, 5000K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
Certified by UL, DLC, NSF Std. 2 |
|
CRI
CRI
 |
80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
2.0/2.2/2.5 A @ 120 VAC, 690/775/860 mA @ 347 VAC |
| Dimmable | Yes |
| DLC Product ID | S-MG08NY |
| Efficacy | 163 lm/W |
| Equivalency | 1000 Watt Metal Halide |
| Finish | White |
| Input Connection Type | Pigtail |
| Integrated Surge Protection | 6 kV (L-N), 6 kV (L/N-PE) |
|
IP Rating
IP Rating
 |
IP69K |
| LED Color | Warm White, Natural White, Cool White, Selectable CCT |
| Rated Life (L70) | 50000 Hours |
| Length | 24 in. (2 ft) |
| Lumens | 24500 Lumens, 36750 Lumens, 49000 Lumens |
| Microwave Motion Sensor | Optional |
| Operating Voltage | 120-347 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Aluminum Housing |
| Product Weight | 19.3 lb (8.8 kg) |
| UL File Number | E366643 |
| Warranty | 5 Year |
| Wattage | Selectable Wattage, 240 Watts, 270 Watts, 300 Watts |
| Wire Gauge | 18 AWG |
