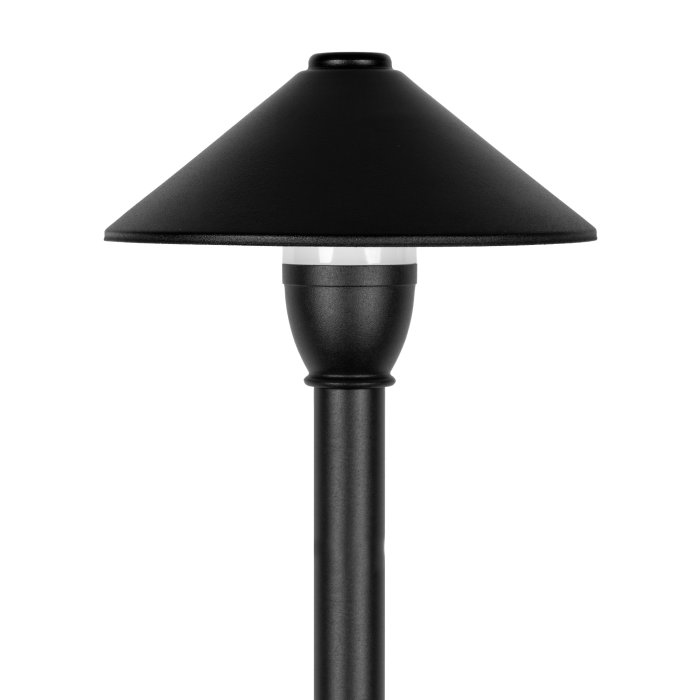

12V Landscape LED Path Light - 6" Flat-Top Cone Shade - Selectable CCT - 15" Stem - Black Aluminum - 2700K / 3000K / 3500K / 4000K / 5000K - Single / 6-Pack
Part Number:
LFA-P07-5CCT-BL-x
Manufacturer Part Number:
Starting at
$24.99
ea.
Starting at
Was
Features
- 5-in-1 selectable CCTs
- 15" stem with 6" diameter flat-top cone shade
- Frosted polycarbonate lens delivers evenly diffused light
- Corrosion-resistant aluminum construction with black finish
Frequently Bought Together
Total Price:
Loading...
Related Products
Overview
The versatile 12V Landscape LED Path Light offers five selectable color temperatures (2700K, 3000K, 3500K, 4000K, and 5000K) for customized outdoor lighting. The 6" diameter flat-top cone shade with a frosted lens directs diffused light downward, providing ideal visibility for outdoor walkways, pathways, driveways, and gardens. These corrosion-resistant, waterproof lights include a 6.5" mounting stake and are available in single packs and six-packs.
Product Details:
- Black aluminum construction with flat-top cone shade
- Frosted polycarbonate lens delivers evenly diffused light
- IP65 waterproof
- 6.5" mounting stake
- 12-24V AC/DC
Documents
LFA-P07-5CCT-BL User Manual
Applications:
- Driveways
- Gardens
- Landscape Lighting
- Pathways
- Patios
- Walkways
Super Bright LEDs, Inc. offers a 3-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Specifications
| Ambient Operating Temperature | -20 to 40 °C (-4 to 104 °F) |
|---|---|
|
Beam Angle
Beam Angle
Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.
|
360° x 180° |
|
CCT
CCT
|
2700K, 3000K, 3500K, 4000K, 5000K, Selectable CCT |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
275 mA @ 12 VDC, 135 mA @ 24 VAC |
| Dimmable | No |
| Finish | Black |
| Height | 19 in |
| Input Connection Type | Pigtail |
|
IP Rating
IP Rating
|
IP65 |
| LED Color | Warm White, Natural White, Cool White, Selectable CCT |
| LED Lifetime | 40000 Hours |
| Lens Color | Frosted |
| Lumens | 150 Lumens |
| Mount Type | Mounting Stake |
| Operating Voltage | 12-24V AC/DC |
| Product Materials | Aluminum Housing, Polycarbonate Lens |
| Warranty | 3 Year |
| Wattage | 3 Watts |
| Wire Gauge | 20 AWG |
| Wire Length | 43 in. (3.58 ft) |
