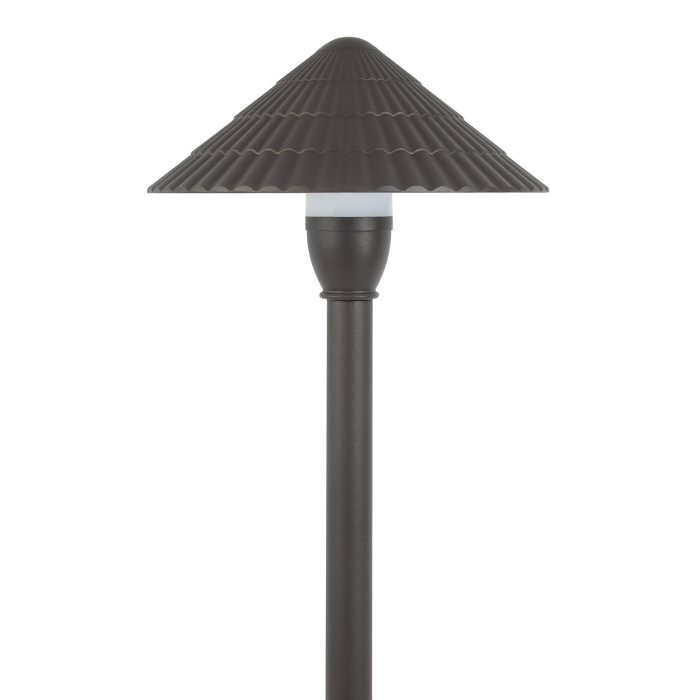

12V Landscape LED Path Light - 7.5" Shingle Cone Shade - Bronze Aluminum - 2700K / 3000K / 4000K
Part Number:
LFA-P02-xKBR
Manufacturer Part Number:
Starting at
$17.99
ea.
SAVE 10%
Was
$19.99
ea.
Starting at
Was
| Quantity | |
|---|---|
In Stock
Features
- Decorative shingle cone shade with a matte bronze finish
- Waterproof die-cast aluminum construction
- Corrosion-resistant for outdoor use
- Maintenance-free integrated LEDs
- Frosted lens - 100 lumens of diffused path lighting
- 14.25" path light includes a 6.5" aluminum ground stake
Overview
The 12V landscape LED path light features a decorative shingle cone shade, a matte bronze finish, and corrosion-resistant construction. The durable cast aluminum fixture has integrated LEDs and a frosted polycarbonate lens for diffused illumination. An IP65 waterproof design protects internal components from the elements. Attach the lens and reflective cone shade to the post and secure the durable aluminum ground stake for installation. The landscape path light is ideal for outdoor walkways, pathways, driveways, and garden lighting.
Product Details:
- Bronze coated cast aluminum with frosted polycarbonate lens
- IP65 waterproof rated
- 180° beam angle, 100 lumens
- Aluminum mounting stake included
- 12–24 VDC, 12 VAC
Documents
LFA-P0x-x User Manual
Super Bright LEDs, Inc. offers a 3-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Specifications
| Ambient Operating Temperature | -20~+40 °C (-4~+104 °F) |
|---|---|
|
Beam Angle
Beam Angle
Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.
|
360° x 180° |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
210 mA @ 12 VDC, 285 mA @ 12 VAC |
| Dimmable | No |
| Finish | Bronze |
| Height | 14.25in (361.9mm) |
|
IP Rating
IP Rating
|
IP65 |
| LED Lifetime | 40000 Hours |
| Lens Color | Frosted |
| Lumens | 100 Lumens |
| Mount Type | Mounting Stake |
| Operating Voltage | 12 VAC, 12-24 VDC |
| Wattage | 2.5 Watts |
| Product Materials | Aluminum Housing, Aluminum Mounting Stake, Polycarbonate Lens |
| Warranty | 3 Year |
| Wire Gauge | 20 AWG |
| Wire Length | 4.9 ft (1.5 m) |
| Part NO |
CCT
CCT
|
LED Color |
|---|---|---|
| LFA-P02-27KBR | 2700K | Warm White |
| LFA-P02-30KBR | 3000K | Warm White |
| LFA-P02-40KBR | 4000K | Natural White |
