Discontinued
We have discontinued this product permanently. Please find suggested replacement products from below section.

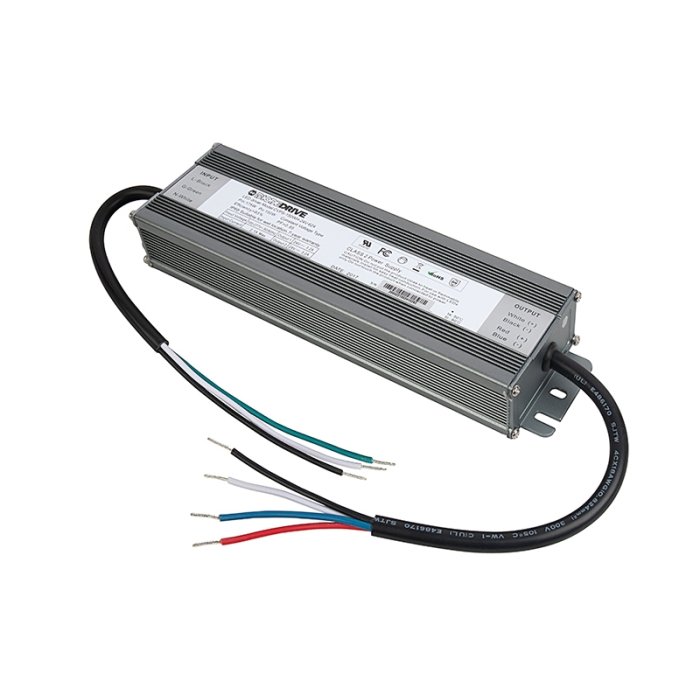

LED Switching Power Supply - DiodeDrive® Series - 60W-240W Enclosed Power Supply - 24V - 150 Watt - 24 Volt


Loading recommendations...
Overview
- Sign Lighting
- Stage & Theaters
- Strip Lights
Class 2
Class 2 power supplies must meet the National Electric Code (NEC) and Underwriters Laboratories (UL 1310) standards for wiring requirements and power limitations of AC/DC power supplies to minimize shock or fire risks. All Class 2 power supplies must meet the NEC overcurrent protection and wiring sizing regulations. They must be constructed with ‘In-Wall’ rated wiring for permanent installation inside walls or floors, where they may be surrounded by insulation. These wiring requirements help prevent cracking or melting of the wire, which could cause a fire hazard. These power supplies must have a maximum power capacity of 100 VA and cannot exceed a 30 VAC or 60 VDC output, minimizing the risk of electric shock or overheating from excessive currents.
Specifications
Ambient Operating Temperature Range | -40 to 50 °C (-40 to 122 °F) |
---|---|
Brand | DiodeDrive |
Built-in PFC Function | No |
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact, energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else who may be involved confidence that the product is safe and will work well in their application. UL and ETL certifications relate to safety and installation and are the most common for power supplies. |
CE, Class 2, UL Recognized |
Dimmable | No |
Environmental Rating
Environmental Rating
![]() |
Suitable for Wet Locations, Waterproof |
Input Frequency Range | 50 - 60 Hz |
Input Connection Type | Pigtail |
Input Voltage | 100-277 VAC |
IP Rating
IP Rating
![]() |
IP68 |
Number of Outputs | 2 |
Output Connection Type | Pigtail |
Output Current | 6240 mA |
Output Voltage | 24 VDC |
Product Weight | 2.2 lb (1.0 kg) |
Warranty | 7 Year |
