Discontinued
We have discontinued this product permanently. Please find suggested replacement products from below section.

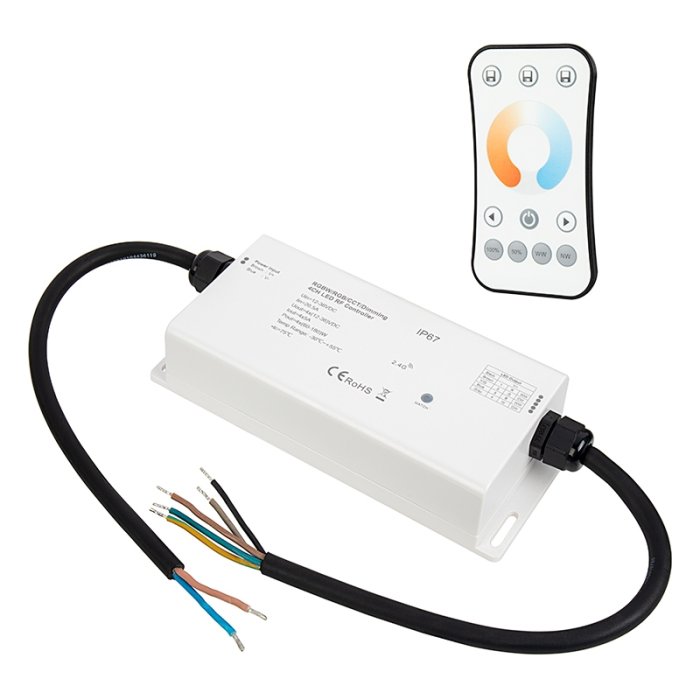

Waterproof 4 Channel Receiver with Tunable White RF Remote - 5 Amps/Channel - DS-CO4-CCT
Part Number:
DS-CO4-CCT
Manufacturer Part Number:
View Similar Products
Features
- 4 channel constant voltage receiver with tunable white RF remote
- IP67 waterproof - fully enclosed plastic case
- Remote controls Tunable White LEDs
- Pair additional remotes to single receiver (must pair any remote for initial use)
- Output power 4 x 180-watts
- 12–36 VDC
- 5 year warranty
Related Products
Overview
DS series Receiver is a constant voltage controller that allows up to 4 channels. Fully enclosed plastic housing is rated IP67 for wet conditions and outdoor application. Easily pairs with remote to adjust Tunable White LEDs to desired color temperature.

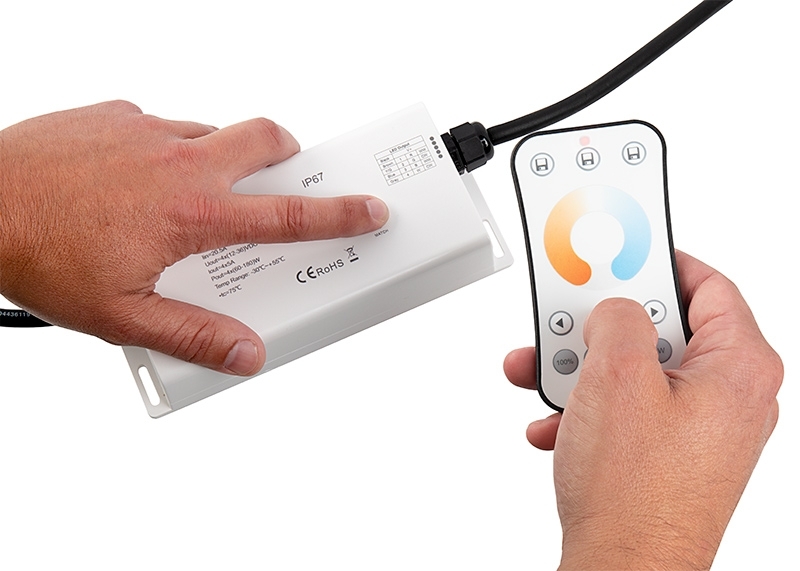

Remotes must be paired as part of the installation process and do not come pre-paired. Please see manual for details.
Remotes must be paired as part of the installation process and do not come pre-paired. Please see manual for details.
Product Details:
- Input Voltage Range: 12–36 VDC
- Max Input Current: 20.5 A
- Max. Output Current: 5 A per channel (20 A total)
- Output power 4 x 180-watts
- PWM Frequency 500Hz
- Transmission Range: 98ft
- Repeats signal to another receiver with in 98ft
- 4096 levels for smooth 0-100% dimming
- Protects against overheat, overload, and short circuit
Documents
DS-CO4 Specification Sheet Applications:
- Light Bars
- Panel Lights
- Strip Lights
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.
Specifications
| Ambient Operating Temperature | -30 to 55 °C (-22 to 131 °F) |
|---|---|
| Amps Per Channel | 5 Amps/CH |
| Battery Type | 125050 |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application.The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here. |
CE |
| Control Type | Handheld (RF) Remote |
| Input Connection Type | Pigtail |
| Input Voltage | 12-36 VDC |
|
IP Rating
IP Rating
|
IP67 |
| Max Input Current | 20.5 A |
| Max Wattage | 4 Watts |
| Number of Channels | 4 Channels |
| Output Current Draw per Channel | 20 A (5 A x 4 channels*) |
| Output Voltage | 12-36 VDC |
| Remote Range | Up to 98.4 ft (30 m) |
| Warranty | 5 Year |
