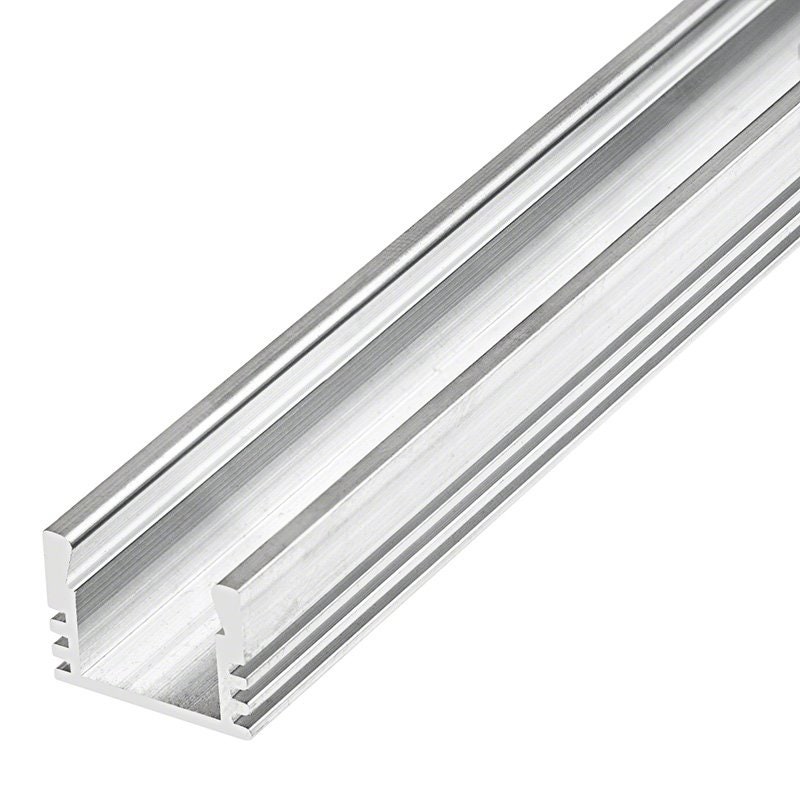

Name: PDS4-ALU Aluminum Channel - Surface - For Strips Up To 11mm - Silver - 1m
Brand: Super Bright LEDs
SKU: B1718ANODA_1
Price: 12.99 USD
Availability: InStock
Rating: 4 (5 reviews)

Overview

Description

The KLUS® PDS4-ALU Aluminum Channel series provides a professional surface mount housing for LED strip lights up to 11mm wide. The extruded aluminum channel works as a surface or recessed mount. Available with a clear lens for optimal brightness or a frosted lens for smooth "line of light" illumination with no visible hot spots (with high-density LED strips). Install with 3M-FTS double-sided tape or mounting brackets for added security. Use optional accessories to seal the channel to a waterproof rating for wet areas. Available lengths of 3.3ft (1m) or 6.6ft (2m) in anodized silver, black, white, or non-anodized silver.

See the similar PDS-NK aluminum channel

See our selection of LED strip lights

Product Details:

Extruded aluminum
Available with or without lens
Surface or recessed mount
4-year warranty

Super Bright LEDs, Inc. offers a 4-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Applications

Cabinets
Kitchen Lighting
Walkways and Pathways
Shower Lights
Task Lighting
Bookshelf Lighting
Under-Cabinets
Gardens
Bathroom Lighting
Garage Lighting
Stairs
Workbench
Workshop Lighting

Specifications

Brand	KLUS
Compatible Strip Width	11mm (0.43in)
Channel Type	Surface
Warranty	4 Year

Print Specifications

Part NO	Finish	Length	Lens	Product Materials	Shipping Exclusions and Details
B1718ANODA_1	Silver Anodized	3.3ft (1m)	Not Included	Aluminum
B1718ANODA_1-C	Silver Anodized	3.3ft (1m)	Clear	Aluminum
B1718ANODA_1-F	Silver Anodized	3.3ft (1m)	Frosted	Aluminum
B1718ANODA_2	Silver Anodized	6.6ft (2m)	Not Included	Aluminum	Excluded From Free Shipping
B1718ANODA_2-C	Silver Anodized	6.6ft (2m)	Clear	Aluminum	Excluded From Free Shipping
B1718ANODA_2-F	Silver Anodized	6.6ft (2m)	Frosted	Aluminum	Excluded From Free Shipping
B1718K7_1	Black Anodized	3.3ft (1m)	Not Included	Aluminum
B1718K7_1-C	Black Anodized	3.3ft (1m)	Clear	Aluminum
B1718K7_1-F	Black Anodized	3.3ft (1m)	Frosted	Aluminum
B1718K7_2	Black Anodized	6.6ft (2m)	Not Included	Aluminum	Excluded From Free Shipping
B1718K7_2-C	Black Anodized	6.6ft (2m)	Clear	Aluminum	Excluded From Free Shipping
B1718K7_2-F	Black Anodized	6.6ft (2m)	Frosted	Aluminum	Excluded From Free Shipping
B1718L9010_1	White	3.3ft (1m)	Not Included	Aluminum
B1718L9010_1-C	White	3.3ft (1m)	Clear	Aluminum
B1718L9010_1-F	White	3.3ft (1m)	Frosted	Aluminum
B1718L9010_2	White	6.6ft (2m)	Not Included	Aluminum	Excluded From Free Shipping
B1718L9010_2-C	White	6.6ft (2m)	Clear	Aluminum	Excluded From Free Shipping
B1718L9010_2-F	White	6.6ft (2m)	Frosted	Aluminum	Excluded From Free Shipping
B1718NA_1	Silver Non-Anodized	3.3ft (1m)	Not Included
B1718NA_1-C	Silver Non-Anodized	3.3ft (1m)	Clear
B1718NA_1-F	Silver Non-Anodized	3.3ft (1m)	Frosted
B1718NA_2	Silver Non-Anodized	6.6ft (2m)	Not Included	Aluminum	Excluded From Free Shipping
B1718NA_2-C	Silver Non-Anodized	6.6ft (2m)	Clear	Aluminum	Excluded From Free Shipping
B1718NA_2-F	Silver Non-Anodized	6.6ft (2m)	Frosted	Aluminum	Excluded From Free Shipping

Accessories & Power Supplies

All Accessories

Mounting

Installation Supplies

Lenses

Switches

End Caps

Accessories Links

Accessory Category

Accessory Type:

$3.99 ea.
PDS-STN-90D Mounting Bracket for Aluminum Channels Part Number: 24367
In stock
Use the KLUS® PDS-STN-90D mounting bracket for Aluminum Channels to surface mount LED strip light fixtures. The durable and weather-resistant stainless steel bracket allows easy installation and de-installation of lighting fixtures by snapping in and out. This right-angle bracket is attached to the surface with properly selected screws (not included). The fixture's position in the bracket is adjustable after surface installation.

Compatible KLUS Channels:
- KLUS PDS4-ALU
- REGULOR
- TAMI
- TAPO

$0.35 ea.

3M-FTP Double-Sided Foam Pad - Double-Sided Foam Pad Part Number: 3M-FTP
In stock

High performance 3M Closed-Cell Acrylic Foam Tape Pads - adhesive on both sides for attaching light bars and other LED products to a wide variety of surfaces. Measures 1.25 x 0.625in, 0.088in thick.
$2.99 ea.

PDS-STN Mounting Bracket - Mounting Clip Part Number: 24190
In stock

Mounting clip for LED profile housings. Zinc plated steel and has one 5.4mm (0.21 in) diameter hole for screw mounting.
$1.49 ea.

WFLS-GL1OZ 1 oz. Waterproof Sealant Tube - Light Strip Glue Part Number: WFLS-GL1OZ
In stock

One ounce of waterproof sealant for our silicone light strip tubing and end caps.
$4.99 ea.

3M Adhesion Promoter - Single Pack Part Number: 06396
In stock

3M Adhesion Promoter 06396 is a liquid primer specifically formulated for automotive applications that enhances adhesion of 3M Acrylic Foam Tapes for interior and exterior trim applications. The sponge applicator packet is easy to use and makes an ideal choice for LED strip light and aluminum extrusion installations.
$29.99 ea.

3M-FTS Double-Sided Foam Tape Strip - Double-Sided Foam Tape Strip Part Number: 3M 4492
In stock

High performance 3M Double Coated Polyethylene Foam Tape Strips - adhesive on both sides for attaching light bars and other LED products to a wide variety of surfaces. 72 yard reel, which measures 1/4in wide x 216ft long.

$46.99 ea.

12~24V MICRO Switch with Power Wire Part Number: 1491-x
In stock

MICRO SWITCH for LED aluminum profiles housings. Usage of MICRO SWITCH in PDS4-ALU, PDS-O, 45-ALU, and PDS4-K series profile housing requires MICRO SWITCH Base(00035) and compatible end caps. Includes 1.5m power wire. Price for each.
$42.99 ea.

Klus 1576 - 12~24V MICRO Switch - MICRO SWITCH Part Number: 1576
In stock

$2.99 ea.

PDS4-ALU End Cap Black - 24066 Part Number: 24066
In stock

Use these black end caps with frosted or clear lenses on your PDS-4-ALU black LED channels. Price for each.
$2.99 ea.

PDS-4-ALU-MW End Cap with Hole - Surface/Flush Mount Wire Hole Part Number: 00027
In stock

Use these gray end caps with frosted or clear lenses on your PDS-4-ALU LED channels. Each end cap has a hole for wiring. Compatible with MICRO SWITCH (1576). Price for each.
$2.99 ea.

PDS-4-ALU-MW End Cap - 00026 Part Number: 00026
In stock

Use these gray end caps with frosted or clear lenses on your PDS-4-ALU LED channels. Compatible with MICRO SWITCH (1576). Price for each.
$1.99 ea.

PDS-4-ALU End Cap White - 20002 Part Number: 20002
In stock

Use these white end caps with frosted or clear lenses on your PDS-4-ALU white LED channels. Price for each.
$1.99 ea.

PDS-4-OTW End Cap White with Hole - 21002 Part Number: 21002
In stock

Use these white end caps with frosted or clear lenses on your PDS-4-ALU white LED channels. Each end cap has a hole for wiring. Price for each.
