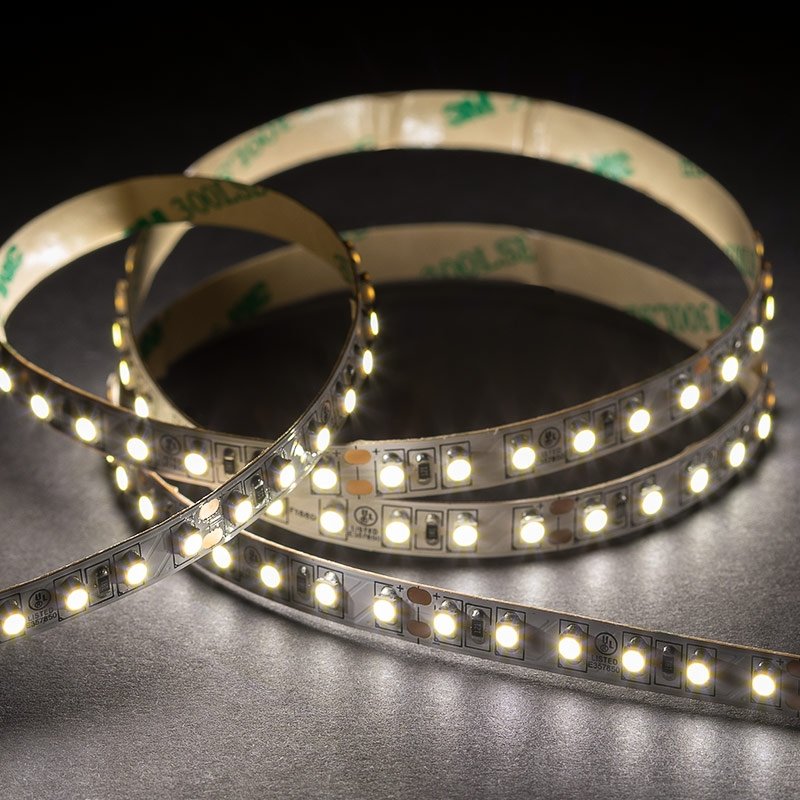

3528 Single-Color LED Strip Light - Custom Length Tape Light - 24V - IP20 - 250 lm/ft

Custom Length Single Color LED Strip Light - Eco Series Tape Light - 24V - IP20 - 250 lm/ft - Natural White 4000K - Custom Length

Name: Custom Length Single Color LED Strip Light - Eco Series Tape Light - 24V - IP20 - 250 lm/ft - Natural White 4000K - Custom Length
Brand: Super Bright LEDs
SKU: STN-A40K80-B6A-08C1M-24V
Price: 13.99 USD
Availability: OutOfStock
Rating: 5 (7 reviews)

Part Number

STN-A40K80-B6A-08C1M-24V

Features

24V For longer continuous runs - Up to 32'
Can be cut every 2"
3M™ Adhesive backing
Lifetime warranty
0-100% dimmable
See accessories for controllers, power supplies, connectors, and channels

View more details

Free Shipping

On orders $300 and up within the contiguous U.S.
Read More

Item does not qualify

Add to Wish List

Custom length strips cannot be returned or exchanged.
Also available in 5m and 30m reels

Skip to the end of the images gallery

9 photos

Skip to the beginning of the images gallery

Overview

Description

Eco Series LED strip light operates on 24 VDC and can be used in longer runs than 12V strips. It emits up to 250 lumens of warm white, natural white, cool white, blue, green, red, yellow, pink, or amber light per foot. The high-density LED tape light can be easily cut into separate 6-LED segments and installed with its peel-and-stick 3M™ adhesive backing. Minimum custom length is 3.28'. Run the strip back to power every 32' to avoid excessive voltage drop. This strip light is covered by a lifetime warranty. It's great for cabinets, under-cabinet lighting, coves, bookshelves, or other indoor applications where space is limited.

Custom-length strip sections are cut from a larger reel and will not have wire leads. Soldering or the use of solderless connectors (sold separately) is required. See accessories for compatible connectors.

Applications

Accent Lighting
Backlighting
Bias Lighting
Cove Lighting
Display Cases
Off Grid Lighting
Retail Shops
Sign Lighting
Task Lighting
Trade Shows
Under-Cabinets

In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.

Super Bright LEDs, Inc. warrants that products carrying a lifetime warranty will be free from defects in the material and workmanship for the lifetime of the product. If Super Bright LEDs verifies that the defect was not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product with the same product. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More

Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.

LED Strip Lights FAQs

What is the difference between 12V and 24V strip lights?

Most LED strips are extremely similar despite differences in voltage. They look the same and are capable of similar light output. Despite this, there are some key differences between voltages which affect use for various applications. 12-volt DC strips can be connected directly to a vehicle's 12-volt DC electrical system. Higher voltage strips (e.g. 24 VDC, 36 VDC, or 48 VDC) on the other hand allow for longer runs and higher densities of LEDs over their 12-volt counterparts. 120 VAC strips offer incredibly long max runs and the ability to power from a standard wall outlet. For the maximum run of a strip see max run in the specification table. Read More »

How long of a run can I make my strip?

The max run of an LED strip is dependent on two primary things—voltage and density.

Higher voltage strips will generally give you a longer run than comparable lower voltage strips (e.g. 24 VDC would have a longer max run than 12 VDC with the same type of strip and density). Similarly, lower density strips have the potential for longer runs than high density strips.

So essentially, max run can be lengthened by choosing a higher voltage and/or lower density version of a strip, but a higher voltage could also provide a similar max run at an increased density where brightness or 'line of light' are more of a concern. If an install needs to extend beyond a strips max run, additional power feeds can also be run back to the power supply from other points in the run.

Please refer to the max run spec listed in the specification table of each product information page for specific information about each strip. Read More »

What is color temperature? Which one is best?

Graphic showing light output color temperature range

Correlated Color Temperature is the hue, or tint of white to expect from a light source and is measured in kelvin. Lower numbers give off a warmer white that is closer to candle light, and is good for relaxed and cozy spaces. Higher numbers give off a cooler white light that will appear more blueish. While values to the middle of the spectrum give off a more neutral or natural white light that is similar to daylight. Natural and cool white are considered ideal for task lighting.

Read More About: Lumens vs CCT vs CRI »

How bright is the strip? What are lumens and how many do I need?

Lumens are the measure of how bright an LED strip will be when in use. The higher the lumen rating, the brighter the strip will be. Higher lumen strips are usually better for under cabinet and task lighting. Lower lumen strips are typically used for accent lighting applications.

Read More About: Lumens vs CCT vs CRI »

What accessories do I need?

The only thing you need for certain to power a strip light is a power supply. We offer accessories used for installation, such as connectors and aluminum mounting channels. As well as others that add functionality such as such as dimmers, switches, and remote controls. Complete kits are also offered which include everything you need to get started.

12 Volt Power Supplies

24 Volt Power Supplies

Strip Connectors

Controllers

Housings

Installation Supplies

LED Strip Light Power Supply Calculator

Calculate the minimum power supply capacity needed for your installation. Minimum wattage is calculated as estimated wattage / 0.80 to give you the 20% wattage overhead necessary to improve power supply longevity.

Outdoor?

Yes No

Length (in feet) Voltage Wattage (per foot)

Calculate

Minimum Power Supply Wattage:
xx watts.

Shop Indoor Power Supplies

We've pre-filtered compatible power supplies for you based on voltage and weatherproofing requirements. Double check your wattage selection based on the calculation above before adding to cart. Many of our power supplies are offered in multiple wattages.

Specifications

Ambient Operating Temperature	-20~+45 °C (-4~+113 °F)
Brightness	250 lm/ft (820 lm/m)
Certifications/Compliance	CE, UL Listed
Current Draw Current Draw is used to size fuses and wire for an electrical circuit. Current draw is the amount of energy consumed by an LED or LEDs in an electrical circuit at a specific voltage, measured in amps (A) or milliamps (mA).	1.7 A
Current Draw per Foot Current Draw Per Foot is used to size power supplies, normally converted to watts per foot. This is equated using total wattage divided by number of linear feet. Current draw per foot is the amount of current consumed by an LED or LEDs in an electrical circuit per linear foot at a specific voltage, measured in milliamps (mA) or watts (W).	104mA
Dimmable	Yes
Efficacy	120 lm/W
Environmental Rating Learn more about environmental rating	Non-weatherproof, Suitable for Dry Locations
Finish	White
IP Rating	IP20
LED Beam Angle Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.	120°
LED Density	36 LEDs/ft
LED Type	3528 SMD
LEDs per Segment	6
Light Length	Custom Length
Max Run (Class 2) The Max Run of an LED strip is dependent on two things, voltage and density. 24 volt strips in most instances will give you a longer run than a 12 volt strip. However the LED density of the strip will have an effect on the maximum run. If your install needs to extend beyond a strips Max Run additional power feeds can be run back to your power supply.	Up to 29.5ft (9m)
Minimum Cut Length	50mm (1.97in)
Operating Voltage	24 VDC
Power Consumption	41 Watts
Rated Life (L70)	50000 Hours
Series	Eco
Strip Width	8mm (0.31in)
Wattage per Foot	2.5 W/ft (8.2 W/m)
Wire Length	1.7 ft (51.8 cm)

Print Specifications

Part NO	CCT Value CCT Value	Color/CCT Color/CCT Correlated Color Temperature is the hue, or tint of white to expect from a light source and is measured in kelvin. Lower numbers give off a warmer white that is closer to candle light, and is good for relaxed and cozy spaces. Higher numbers give off a cooler white light that will appear more blueish. While values to the middle of the spectrum give off a more neutral or natural white light that is similar to daylight. Natural and cool white are considered ideal for task lighting.	CRI
STN-A30K80-B6A-08C1M-24V	3000K	Warm 3000K	80+
STN-A40K80-B6A-08C1M-24V	4000K	Natural 4000K	80+
STN-A50K80-B6A-08C1M-24V	5000K	Cool 5000K	80+
STN-A65K80-B6A-08C1M-24V	6500K	Cool 6500K	80+
STN-BAMB-B6A-08C1M-24V		Amber
STN-BBLU-B6A-08C1M-24V		Blue
STN-BGRE-B6A-08C1M-24V		Green
STN-BPIN-B6A-08C1M-24V		Pink
STN-BRED-B6A-08C1M-24V		Red
STN-BYEL-B6A-08C1M-24V		Yellow
