Name: 5m White COB LED Strip Light - COB Series LED Tape Light - High CRI - 12V / 24V - IP20
Brand: Super Bright LEDs
SKU: COB-IP20-90CRI-5m
Price: 99.99 USD
Availability: InStock
Rating: 4.9 (11 reviews)

Overview

Description

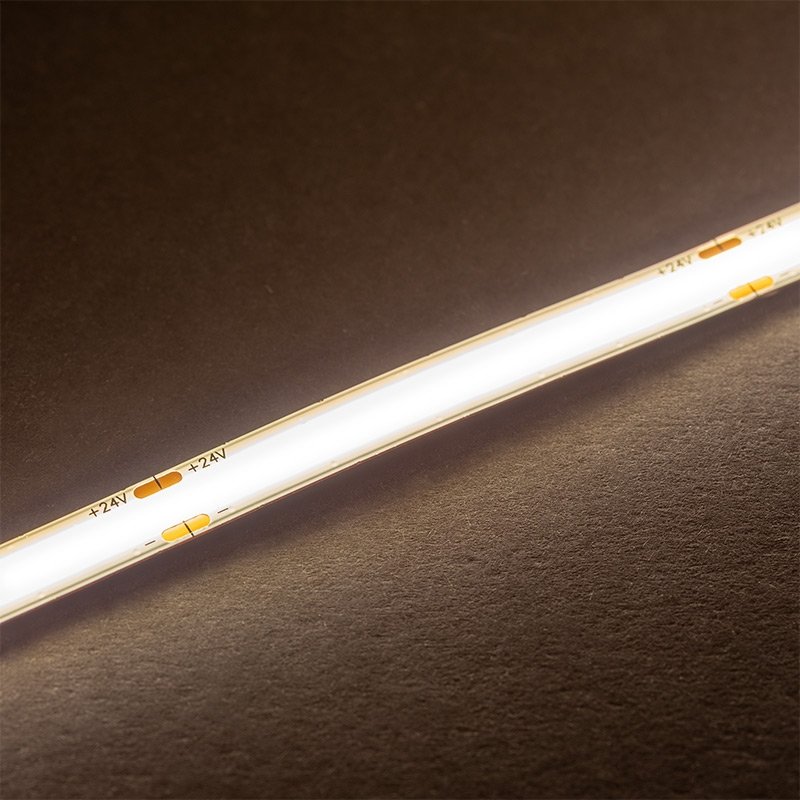

The COB Series LED strip light creates a smooth, seamless line of light. The superior design will not show visible dots or hot spots, making it ideal illumination for reflective surfaces such as granite countertops and tile floors. It eliminates the need for a lens cover and is also suitable for narrow applications like jewelry cases and backlighting. Chip-on-board technology produces high-quality light while mitigating heat buildup and improving strip flexibility. With high 90+ CRI, this tape light is a solution for places where quality color rendering is needed, such as display cases and kitchen counters. Measuring only 8mm, the strip light is fully dimmable, cuttable in 1.41" segments, and 3M™ adhesive-backed.

Product Details:

180° beam angle
Max Run: 16.4ft (5m) at 12V, 24.6ft (7.5m) at 24V
Strip Width: 8mm
0-100% dimmable
Connection: pigtail
IP20 rated for dry conditions
UL Listed
5-year warranty

Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.

Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Applications

Toe Kicks
Countertop Lighting
Task Lighting
Art Gallery
Coves
Under-Cabinets
Display Cases
Trade Shows

LED Strip Lights FAQs

What is the difference between 12V and 24V strip lights?

Most LED strips are extremely similar despite differences in voltage. They look the same and are capable of similar light output. Despite this, there are some key differences between voltages which affect use for various applications. 12-volt DC strips can be connected directly to a vehicle's 12-volt DC electrical system. Higher voltage strips (e.g. 24 VDC, 36 VDC, or 48 VDC) on the other hand allow for longer runs and higher densities of LEDs over their 12-volt counterparts. 120 VAC strips offer incredibly long max runs and the ability to power from a standard wall outlet. For the maximum run of a strip see max run in the specification table. Read More »

How long of a run can I make my strip?

The max run of an LED strip is dependent on two primary things—voltage and density.

Higher voltage strips will generally give you a longer run than comparable lower voltage strips (e.g. 24 VDC would have a longer max run than 12 VDC with the same type of strip and density). Similarly, lower density strips have the potential for longer runs than high density strips.

So essentially, max run can be lengthened by choosing a higher voltage and/or lower density version of a strip, but a higher voltage could also provide a similar max run at an increased density where brightness or 'line of light' are more of a concern. If an install needs to extend beyond a strips max run, additional power feeds can also be run back to the power supply from other points in the run.

Please refer to the max run spec listed in the specification table of each product information page for specific information about each strip. Read More »

What is color temperature? Which one is best?

Graphic showing light output color temperature range

Correlated Color Temperature is the hue, or tint of white to expect from a light source and is measured in kelvin. Lower numbers give off a warmer white that is closer to candle light, and is good for relaxed and cozy spaces. Higher numbers give off a cooler white light that will appear more blueish. While values to the middle of the spectrum give off a more neutral or natural white light that is similar to daylight. Natural and cool white are considered ideal for task lighting.

Read More About: Lumens vs CCT vs CRI »

How bright is the strip? What are lumens and how many do I need?

Lumens are the measure of how bright an LED strip will be when in use. The higher the lumen rating, the brighter the strip will be. Higher lumen strips are usually better for under cabinet and task lighting. Lower lumen strips are typically used for accent lighting applications.

Read More About: Lumens vs CCT vs CRI »

What accessories do I need?

The only thing you need for certain to power a strip light is a power supply. We offer accessories used for installation, such as connectors and aluminum mounting channels. As well as others that add functionality such as such as dimmers, switches, and remote controls. Complete kits are also offered which include everything you need to get started.

12 Volt Power Supplies

24 Volt Power Supplies

Strip Connectors

Controllers

Housings

Installation Supplies

LED Strip Light Power Supply Calculator

Calculate the minimum power supply capacity needed for your installation. Minimum wattage is calculated as estimated wattage / 0.80 to give you the 20% wattage overhead necessary to improve power supply longevity.

Outdoor?

Yes No

Length (in feet) Voltage Wattage (per foot)

Calculate

Minimum Power Supply Wattage:
xx watts.

Shop Indoor Power Supplies

We've pre-filtered compatible power supplies for you based on voltage and weatherproofing requirements. Double check your wattage selection based on the calculation above before adding to cart. Many of our power supplies are offered in multiple wattages.

Specifications

Certifications/Compliance	UL Listed
CRI	90+
Dimmable	Yes
Environmental Rating Learn more about environmental rating	Non-weatherproof, Suitable for Dry Locations
Finish	White
IP Rating	IP20
LED Beam Angle Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.	180°
LED Type	COB (chip-on-board)
Length	16.4ft (5m)
Rated Life (L70)	30000 Hours
Series	COB
Strip Width	8mm (0.31in)
Wire Length	508mm (20in)

Print Specifications

Part NO	Ambient Operating Temperature	Brightness	CCT Value CCT Value	Color Temperature Color Temperature Correlated Color Temperature is the hue, or tint of white to expect from a light source and is measured in kelvin. Lower numbers give off a warmer white that is closer to candle light, and is good for relaxed and cozy spaces. Higher numbers give off a cooler white light that will appear more blueish. While values to the middle of the spectrum give off a more neutral or natural white light that is similar to daylight. Natural and cool white are considered ideal for task lighting.	Current Draw Current Draw Current Draw is used to size fuses and wire for an electrical circuit. Current draw is the amount of energy consumed by an LED or LEDs in an electrical circuit at a specific voltage, measured in amps (A) or milliamps (mA).	Current Draw per Foot Current Draw per Foot Current Draw Per Foot is used to size power supplies, normally converted to watts per foot. This is equated using total wattage divided by number of linear feet. Current draw per foot is the amount of current consumed by an LED or LEDs in an electrical circuit per linear foot at a specific voltage, measured in milliamps (mA) or watts (W).	Efficacy	LED Density	LEDs per Segment	Max Run (Class 2) Max Run (Class 2) The Max Run of an LED strip is dependent on two things, voltage and density. 24 volt strips in most instances will give you a longer run than a 12 volt strip. However the LED density of the strip will have an effect on the maximum run. If your install needs to extend beyond a strips Max Run additional power feeds can be run back to your power supply.	Minimum Cut Length	Operating Voltage	Power Consumption	Wattage per Foot
STN-A22K90-O18A-08P5M-12V	-25~+40 °C (-13~+104 °F)	138 lm/ft	2200K	Warm 2200K	3.8 A	229mA	50 lm/W	154 LEDs/ft	18	Up to 16.4ft (5m)	35.7mm (1.41in)	12 VDC	45 Watts	2.8 W/ft (9 W/m)
STN-A22K90-O32-08L5M-24V	-20~+40 °C (-4~+104 °F)	216 lm/ft (710 lm/m)	2200K	Warm 2200K	2.1 A	127mA	71 lm/W	156 LEDs/ft	32	Up to 24.6ft (7.5m)	62.5mm (2.46in)	24 VDC	50 Watts	3.1 W/ft (10.2 W/m)
STN-A27K90-O18A-08P5M-12V	-25~+40 °C (-13~+104 °F)	168 lm/ft (552 lm/m)	2700K	Warm 2700K	3.8 A	229mA	61 lm/W	154 LEDs/ft	18	Up to 16.4ft (5m)	35.7mm (1.41in)	12 VDC	45 Watts	2.8 W/ft (9 W/m)
STN-A27K90-O32-08L5M-24V	-25~+40 °C (-13~+104 °F)	238 lm/ft (780 lm/m)	2700K	Warm 2700K	2.1 A	127mA	78 lm/W	156 LEDs/ft	32	Up to 24.6ft (7.5m)	62.5mm (2.46in)	24 VDC	50 Watts	3.1 W/ft (10.2 W/m)
STN-A30K90-O18A-08P5M-12V	-25~+40 °C (-13~+104 °F)	178 lm/ft	3000K	Warm 3000K	3.8 A	229mA	65 lm/W	154 LEDs/ft	18	Up to 16.4ft (5m)	35.7mm (1.41in)	12 VDC	45 Watts	2.8 W/ft (9 W/m)
STN-A30K90-O32-08L5M-24V	-20~+40 °C (-4~+104 °F)	277 lm/ft (910 lm/m)	3000K	Warm 3000K	2.1 A	127mA	91 lm/W	156 LEDs/ft	32	Up to 24.6ft (7.5m)	62.5mm (2.46in)	24 VDC	50 Watts	3.1 W/ft (10.2 W/m)
STN-A40K90-O18A-08P5M-12V	-25~+40 °C (-13~+104 °F)	206 lm/ft	4000K	Natural 4000K	3.8 A	229mA	75 lm/W	154 LEDs/ft	18	Up to 16.4ft (5m)	35.7mm (1.41in)	12 VDC	45 Watts	2.8 W/ft (9 W/m)
STN-A40K90-O32-08L5M-24V	-20~+40 °C (-4~+104 °F)	302 lm/ft (990 lm/m)	4000K	Natural 4000K	2.1 A	127mA	99 lm/W	156 LEDs/ft	32	Up to 24.6ft (7.5m)	62.5mm (2.46in)	24 VDC	50 Watts	3.1 W/ft (10.2 W/m)
STN-A50K90-O18A-08P5M-12V	-25~+40 °C (-13~+104 °F)	220 lm/ft (722 lm/m)	5000K	Cool 5000K	3.8 A	229mA	80 lm/W	154 LEDs/ft	18	Up to 16.4ft (5m)	35.7mm (1.41in)	12 VDC	45 Watts	2.8 W/ft (9 W/m)
STN-A50K90-O32-08L5M-24V	-20~+40 °C (-4~+104 °F)	329 lm/ft (1080 lm/m)	5000K	Cool 5000K	2.1 A	127mA	108 lm/W	156 LEDs/ft	32	Up to 24.6ft (7.5m)	62.5mm (2.46in)	24 VDC	50 Watts	3.1 W/ft (10.2 W/m)
STN-A65K90-O18A-08P5M-12V	-25~+40 °C (-13~+104 °F)	220 lm/ft (722 lm/m)	6500K	Cool 6500K	3.8 A	229mA	80 lm/W	154 LEDs/ft	18	Up to 16.4ft (5m)	35.7mm (1.41in)	12 VDC	45 Watts	2.8 W/ft (9 W/m)
STN-A65K90-O32-08L5M-24V	-20~+40 °C (-4~+104 °F)	351 lm/ft (1150 lm/m)	6500K	Cool 6500K	2.1 A	127mA	115 lm/W	156 LEDs/ft	32	Up to 24.6ft (7.5m)	62.5mm (2.46in)	24 VDC	50 Watts	3.1 W/ft (10.2 W/m)
