Discontinued
We have discontinued this product permanently. Please find suggested replacement products from below section.

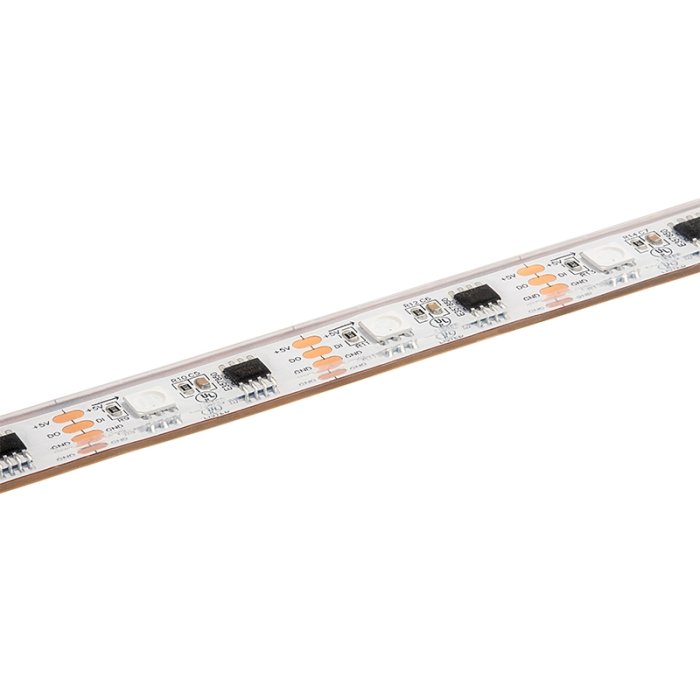

3m Digital RGB LED Strip Light - Single Addressable Color-Chasing LED Tape Light - 5V - IP67 - RGB
Part Number:
STW-PCRGB-A1E-10A3M-5V
Manufacturer Part Number:
Discontinued
Features
- 5050 RGB LEDs - individually addressable with integrated WS2811 IC chips
- Single chip color chasing capabilities with compatible controller
- Use Magic-LED Bluetooth Controller (sold separately) and app to control 200 unique chase patterns
- IP67 water resistant
- 3m total length | 90 total LEDs
- 5 VDC
Overview
DreamColor series Digital RGB Strip Light has WS2811 IC chip technology to individually address each RGB LED. Use the compatible Magic-LED Bluetooth Controller (sold separately) and Magic-LED app to operate from the convenience of a smartphone. Select from thousands of solid colors and 200 color changing modes. Customize brightness, sequence length, and chase speed. This tape light requires 5V power, is cuttable every LED, and has 3M™ adhesive backing for quick mounting. Water resistant construction allows strip to be applied to a wide range of applications such as stage and concert venues, architectural features, landscapes, and more.
Magic-LED Bluetooth Controller requires Magic-LED app and compatible Bluetooth equipped device with at least iOS 8.0 or Android 4.4 installed. Magic-LED app compatible with both Apple and Android smartphones.
Magic-LED Bluetooth Controller requires Magic-LED app and compatible Bluetooth equipped device with at least iOS 8.0 or Android 4.4 installed. Magic-LED app compatible with both Apple and Android smartphones.
Product Details:
- Available in IP20 non-waterproof version
- 5 VDC input
- Max run: 9.8ft (3m)
- 1 LED/segment
- Cuttable segment length: 1.31in
- Density: 9 LEDs/ft
- Strip width: 10mm
- 0-100% dimmable
- IP67 rated for wet conditions
- 36000 hours L70 lifespan
- UL Listed
- 5 year warranty
STx-PCRGB-A1x-10A3M-5V Specification Sheet Applications:
- Car Washes
- Landscape Lighting
- Light Design
- Light Shows
- Outdoor Signs and Advertisements
- Sign Lighting
- Venues
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Specifications
| Ambient Operating Temperature | -20~+45 °C (-4~+113 °F) |
|---|---|
| Certifications/Compliance | CE, UL Listed |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
4.3 A |
| Dimmable | Yes |
|
Environmental Rating
Environmental Rating
|
Suitable for Wet Locations, Waterproof |
| Input Connection Type | Pigtail |
|
IP Rating
IP Rating
|
IP67 |
|
LED Beam Angle
LED Beam Angle
Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.
|
120° |
| LED Color | Color Chasing RGB |
| LED Density | 9 LEDs/ft |
| LED Type | 5050 SMD |
| LEDs per Segment | 1 |
| Length | 9.8 ft (3 m) |
| LED Lifetime | 36000 Hours |
|
Max Run (Class 2)
Max Run (Class 2)
The Max Run of an LED strip is dependent on two things, voltage and density. 24 volt strips in most instances will give you a longer run than a 12 volt strip. However the LED density of the strip will have an effect on the maximum run. If your install needs to extend beyond a strips Max Run additional power feeds can be run back to your power supply.
|
Up to 9.8ft (3m) |
| Minimum Cut Length | 33.3mm (1.31in) |
| Operating Voltage | 5 VDC |
| Series | DreamColor |
| Strip Width | 10mm (0.39in) |
| Wattage | 21.6 Watts |
| Wattage per Foot | 2.2 W/ft |
