Name: 5m White LED Strip Light - Eco Series Tape Light - Dual Row - 24V - IP20
Brand: Super Bright LEDs
SKU: EC-IP20-80CRI-5m-DualRow
Price: 109.99 USD
Availability: InStock
Rating: 4.9 (11 reviews)

Overview

Description

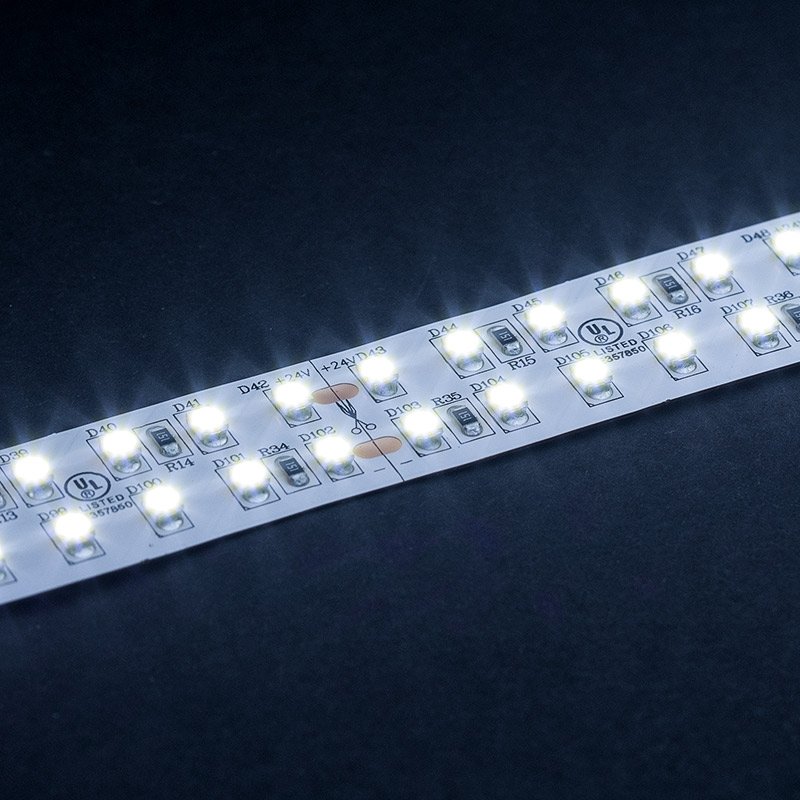

Featuring an 80+ CRI rating, this flexible LED strip light use two rows of powerful LEDs to outshine its competitors. Peel-and-stick 3M™ adhesive backing enables fast, easy mounting. Backed by a lifetime warranty.

Product Details:

Dependable, industry-standard 3528 SMD LEDs
80+ CRI rating ensures vibrant, natural-looking color tones
73 LEDs/ft
24 VDC input
Maximum run of 10m
Strip width measures 20mm
Lifetime exceeds 50000 hours
CE certified and UL listed
Lifetime warranty

Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.

In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.

Super Bright LEDs, Inc. warrants that products carrying a lifetime warranty will be free from defects in the material and workmanship for the lifetime of the product. If Super Bright LEDs verifies that the defect was not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product with the same product. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Read More

Applications

LED Backlights
Accent Lighting
Off Grid Lighting
Coves
Under-Cabinets
Bias Lighting
Display Cases
Trade Shows

LED Strip Lights FAQs

What is the difference between 12V and 24V strip lights?

Most LED strips are extremely similar despite differences in voltage. They look the same and are capable of similar light output. Despite this, there are some key differences between voltages which affect use for various applications. 12-volt DC strips can be connected directly to a vehicle's 12-volt DC electrical system. Higher voltage strips (e.g. 24 VDC, 36 VDC, or 48 VDC) on the other hand allow for longer runs and higher densities of LEDs over their 12-volt counterparts. 120 VAC strips offer incredibly long max runs and the ability to power from a standard wall outlet. For the maximum run of a strip see max run in the specification table. Read More »

How long of a run can I make my strip?

The max run of an LED strip is dependent on two primary things—voltage and density.

Higher voltage strips will generally give you a longer run than comparable lower voltage strips (e.g. 24 VDC would have a longer max run than 12 VDC with the same type of strip and density). Similarly, lower density strips have the potential for longer runs than high density strips.

So essentially, max run can be lengthened by choosing a higher voltage and/or lower density version of a strip, but a higher voltage could also provide a similar max run at an increased density where brightness or 'line of light' are more of a concern. If an install needs to extend beyond a strips max run, additional power feeds can also be run back to the power supply from other points in the run.

Please refer to the max run spec listed in the specification table of each product information page for specific information about each strip. Read More »

What is color temperature? Which one is best?

Graphic showing light output color temperature range

Correlated Color Temperature is the hue, or tint of white to expect from a light source and is measured in kelvin. Lower numbers give off a warmer white that is closer to candle light, and is good for relaxed and cozy spaces. Higher numbers give off a cooler white light that will appear more blueish. While values to the middle of the spectrum give off a more neutral or natural white light that is similar to daylight. Natural and cool white are considered ideal for task lighting.

Read More About: Lumens vs CCT vs CRI »

How bright is the strip? What are lumens and how many do I need?

Lumens are the measure of how bright an LED strip will be when in use. The higher the lumen rating, the brighter the strip will be. Higher lumen strips are usually better for under cabinet and task lighting. Lower lumen strips are typically used for accent lighting applications.

Read More About: Lumens vs CCT vs CRI »

What accessories do I need?

The only thing you need for certain to power a strip light is a power supply. We offer accessories used for installation, such as connectors and aluminum mounting channels. As well as others that add functionality such as such as dimmers, switches, and remote controls. Complete kits are also offered which include everything you need to get started.

12 Volt Power Supplies

24 Volt Power Supplies

Strip Connectors

Controllers

Housings

Installation Supplies

LED Strip Light Power Supply Calculator

Calculate the minimum power supply capacity needed for your installation. Minimum wattage is calculated as estimated wattage / 0.80 to give you the 20% wattage overhead necessary to improve power supply longevity.

Outdoor?

Yes No

Length (in feet) Voltage Wattage (per foot)

Calculate

Minimum Power Supply Wattage:
xx watts.

Shop Indoor Power Supplies

We've pre-filtered compatible power supplies for you based on voltage and weatherproofing requirements. Double check your wattage selection based on the calculation above before adding to cart. Many of our power supplies are offered in multiple wattages.

Specifications

Ambient Operating Temperature	-20~+45 °C (-4~+113 °F)
Brightness	520 lm/ft (1706 lm/m)
Certifications/Compliance	CE, UL Listed
CRI	80+
Current Draw Current Draw is used to size fuses and wire for an electrical circuit. Current draw is the amount of energy consumed by an LED or LEDs in an electrical circuit at a specific voltage, measured in amps (A) or milliamps (mA).	4 A
Current Draw per Foot Current Draw Per Foot is used to size power supplies, normally converted to watts per foot. This is equated using total wattage divided by number of linear feet. Current draw per foot is the amount of current consumed by an LED or LEDs in an electrical circuit per linear foot at a specific voltage, measured in milliamps (mA) or watts (W).	242mA
Dimmable	Yes
Efficacy	90 lm/W
Environmental Rating Learn more about environmental rating	Non-weatherproof, Suitable for Dry Locations
Finish	White
IP Rating	IP20
LED Beam Angle Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.	120°
LED Density	73 LEDs/ft
LED Type	3528 SMD
LEDs per Segment	12
Length	16.4ft (5m)
Max Run (Class 2) The Max Run of an LED strip is dependent on two things, voltage and density. 24 volt strips in most instances will give you a longer run than a 12 volt strip. However the LED density of the strip will have an effect on the maximum run. If your install needs to extend beyond a strips Max Run additional power feeds can be run back to your power supply.	Up to 16.4ft (5m)
Minimum Cut Length	50mm (1.97in)
Operating Voltage	24 VDC
Power Consumption	95 Watts
Rated Life (L70)	50000 Hours
Series	Eco
Strip Width	20mm (0.79in)
Wattage per Foot	5.8 W/ft (19 W/m)
Wire Length	508mm (20in)

Print Specifications

Part NO	CCT Value CCT Value	Color Temperature Color Temperature Correlated Color Temperature is the hue, or tint of white to expect from a light source and is measured in kelvin. Lower numbers give off a warmer white that is closer to candle light, and is good for relaxed and cozy spaces. Higher numbers give off a cooler white light that will appear more blueish. While values to the middle of the spectrum give off a more neutral or natural white light that is similar to daylight. Natural and cool white are considered ideal for task lighting.
STN-A30K80-B12A-20D5M-24V	3000K	Warm 3000K
STN-A40K80-B12A-20D5M-24V	4000K	Natural 4000K
STN-A50K80-B12A-20D5M-24V	5000K	Cool 5000K
STN-A65K80-B12A-20D5M-24V	6500K	Cool 6500K

Accessories & Power Supplies

All Accessories

Controllers

24V Power Supplies

Channels

Installation Supplies

Connectors

12V Power Supplies

Accessories Links

Accessory Category

Accessory Type:

$4.99 ea.

3M Adhesion Promoter - Single Pack Part Number: 06396
In stock

3M Adhesion Promoter 06396 is a liquid primer specifically formulated for automotive applications that enhances adhesion of 3M Acrylic Foam Tapes for interior and exterior trim applications. The sponge applicator packet is easy to use and makes an ideal choice for LED strip light and aluminum extrusion installations.

$1.99 ea.

CPS-x2ST Standard Barrel Connector to Screw Terminal Adapter Part Number: CPS-x2ST
In stock

CPS-x2ST standard 5.5mm male or female barrel connector to screw terminal adapter. CPS-F2ST adapter allows products with pigtail power connections to be powered by CPS series power supplies.
$1.49 ea.

CPS-PT Pigtail CPS Power Adapter Cable - Pigtail Wire CPS-Cable Part Number: CPS-PT
In stock

Pigtail wire leads power adapter cable for compact power supplies. Allows products with power wires to connect with 5.5mm barrel connector. 63.5cm(25in) length.

$159.99 ea.

Diode LED® - SWITCHEX® LED Driver and Dimmer Switch - 24V - 60W / 100W Part Number: DI-24V-SE-x
In stock

The SWITCHEX LED Driver and Dimmer Switch by Diode LED combines an in-wall dimmer switch with a power supply, simplifying installation and eliminating issues with incompatible drivers and switches. The integrated unit installs into standard recessed switch boxes and converts standard 120 VAC power into low-voltage 24 VDC, controlling various low-voltage LED strip lights and fixtures. Control the dimming capabilities using the slider, adjusting between 100% - 5%. The SWITCHEX includes three interchangeable face plates in glossy white, glossy light almond, and glossy brown to match the existing switches (trim plate not included).
