Discontinued
We have discontinued this product permanently. Please find suggested replacement products from below section.

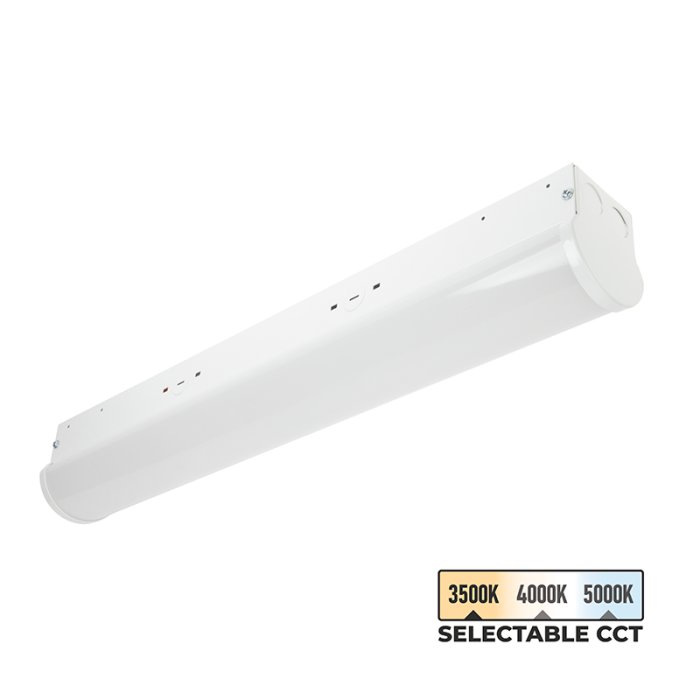

TCP 20W LED General Purpose Strip Light Fixture - 2' Selectable CCT Fixture - 2,600 Lumens - 3500K / 4000K / 5000K REPLACED BY PRODUCT: GPS2UZDSW2CCT
Part Number:
TCPGPS2UZDA8CCT
Manufacturer Part Number:
Discontinued
Features
- Selectable CCT: 3500K, 4000K, and 5000K
- Replaces a fixture using two 17W fluorescent T8 tubes
- Visually appealing slim, low-profile design
- Easy surface mounts onto housing of existing fluorescent strip fixture
- Smooth, continuous 0-10V dimming
Related Products
Overview
TCP’s 20W LED General Purpose Strip Light Fixture is designed to easily replace a fixture with two 17W T8 fluorescent lamps and ballast in an existing fluorescent strip fixture. These LED strip lights significantly reduce energy consumption compared to the existing fluorescent systems and the long 50,000-hour rated life significantly decreases maintenance labor, and material costs over time. The selectable CCT design allows you to customize the fixture per application. TCPGPS2UZDA8CCT incorporates a ribbed, frosted white diffuser lens to minimize glare while delivering uniform light.
Product Details:
- White aluminum housing with a frosted polycarbonate lens
- IP44 damp-location rated
- 0-10V smooth dimming
- Surface mounts to existing strip fixture housing
- 120-277 VAC
- Certified by UL
- DLC 5.1 Standard
- 5-year warranty
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
The DesignLights Consortium® (DLC®) partners with energy-efficiency groups and utility companies to establish a set of standards for commercial LED light fixtures. The product is tested and must meet quality, energy-efficiency, and performance requirements to be added to the DLC's Qualified Products List. For more information, click here. To view all of our DLC® listed products, click here
Specifications
| Ambient Operating Temperature | -20 to 50 °C (-4 to 122 °F) |
|---|---|
| Beam Angle | 120° |
| Brand | TCP |
|
CCT
CCT
|
3500K, 4000K, 5000K |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
Certified by UL, DLC |
|
CRI
CRI
|
80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
170 mA @ 120 VAC, 72 mA @ 277 VAC |
| Dimmable | Yes |
| DLC Product ID | PTTOSX4L |
| Efficacy | 130 lm/W |
|
Environmental Rating
Environmental Rating
|
Non-weatherproof, Suitable for Damp Locations |
| Equivalency | 2-lamp 17W T8 Tubes |
| Finish | White |
| Input Connection Type | Pigtail |
|
IP Rating
IP Rating
|
IP44 |
| LED Color | Warm White, Natural White, Cool White, Selectable CCT |
| Rated Life (L70) | 50000 Hours |
| Length | 24 in. (2 ft) |
| Lens Color | Frosted |
| Lens Type | Polycarbonate |
| Linkable | No |
| Lumens | 2600 Lumens |
| Microwave Motion Sensor | None |
| Operating Voltage | 120-277 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Polycarbonate Lens, Steel Housing |
| Product Weight | 2.9 lb (1.3 kg) |
| UL File Number | E328542 |
| Warranty | 5 Year |
| Wattage | 20 Watts |
