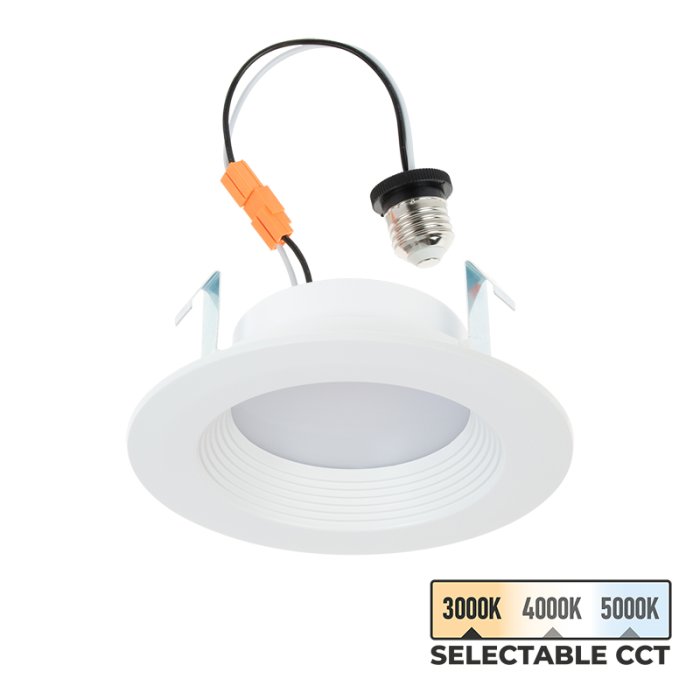

TCP LED 4" Beveled Retrofit CCT Selectable Downlight - 10.5W - Dimmable - E26 Adapter - Up To 700 Lumens
Part Number:
LEDDR4BVCCT2
Manufacturer Part Number:
$10.99
ea.
Was
| Quantity | |
|---|---|
Out of Stock
Backorder Available
Features
- Slim low-profile design
- Field-selectable CCT: 3000K, 4000K, and 5000K
- Easily install into existing recessed can lights
- TRIAC Dimmable
- IC Rated for direct insulation contact
- Energy Star Certified
Overview
TCP’s LED Beveled Retrofit CCT Selectable Downlights are the perfect choice for remodeling or new construction projects. The slim, energy-efficient design is easy to install and offers a rated lifetime of 50,000 hours. Easily install the downlights into existing recessed can housings using the spring clips. The field-selectable CCT allows you to select the color temperature that best suits your needs.
Product Details:
- White, frosted lens for uniform light distribution
- Rated for damp or dry locations
- TRIAC Dimmable
- 120 VAC
- Energy Star Certified
- UL Listed
- 5-year warranty
Documents
xDRxBVCCT2 Specification Sheet Applications:
- Drop Ceilings
- Hospitality
- New Construction
- Offices
- Remodeling
- Residential Downlights
- Retail Shops
- Retrofit Lighting
The Environmental Protection Agency's (EPA) ENERGY STAR program was designed to set a standard for energy efficiency, to reduce pollutants and greenhouse gas, and to help consumers make educated product purchasing decisions. Products with an ENERGY STAR label are tested in EPA-recognized laboratories and meet ENERGY STAR product specification requirements. They are designed to reduce energy costs and serve their purpose without a lack of efficacy and features.
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. UL tests specific properties of product samples to ensure that they adhere to applicable UL requirements, Standards for Safety, and other national and international organization's standards.
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Recognized label ensures that a product component, such as a power supply or LED light strip, has been tested and verified as safe to use in a UL-Listed product. UL-Listed product samples are tested by UL and meet their Standards for Safety requirements.
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Specifications
| Beam Angle | 100° |
|---|---|
| Brand | TCP |
| Can Size | 4 inch |
|
CCT
CCT
|
3000K, 4000K, 5000K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
Energy Star, UL Classified, UL Recognized |
|
CRI
CRI
|
80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
88 mA |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
TRIAC |
| Efficacy | 67 lm/W |
|
Environmental Rating
Environmental Rating
|
Non-weatherproof, Suitable for Damp Locations |
| Equivalency | 60 Watt Incandescent |
| Finish | White |
| Input Connection Type | E26 (Medium Base) |
| IC Rated | Yes |
|
IP Rating
IP Rating
|
IP20 |
| LED Color | Warm White, Natural White, Cool White, Selectable CCT |
| Rated Life (L70) | 50000 Hours |
| Lumens | 670 Lumens, 680 Lumens, 700 Lumens |
| Operating Voltage | 120 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Plastic, Steel |
| Warranty | 5 Year |
| Wattage | 10.5 Watts |
