Discontinued
We have discontinued this product permanently. Please find suggested replacement products from below section.

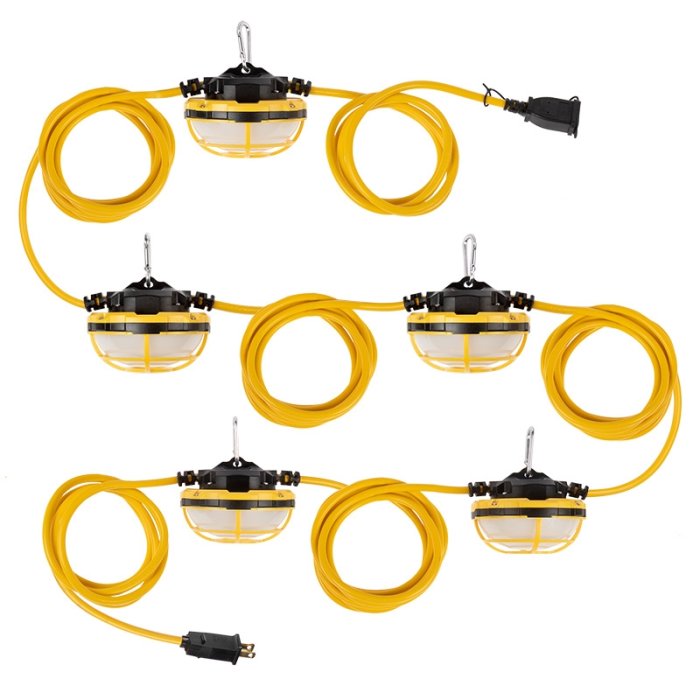

65W LED Temporary Jobsite String Lights - 50' Run - Linkable - 7,150 Lumens Total
Part Number:
TC-TSL-13W-50K-5
Manufacturer Part Number:
Discontinued
Features
- 5 x 13W low profile integrated LED light heads
- 10' light head spacing, 50' total string length
- IP65 Rating - Weather-resistant
- Daisy chain up to 6 strings for a total of 300'
- 1,430 lumens per light (7,150 lumens total)
- 120 VAC
Related Products
Overview
The 65W LED Jobsite String Lights are designed for quick and temporary illumination for any job such as construction sites, emergency scenes and any other large scale working areas. Commercial grade and IP65 weather-resistant construction, with an integrated protective cage that can with stand the impacts and vibrations found on any demanding job site. Quick hang with included carabiners on each light head. Suitable for indoor and outdoor use with 5 lamps strung around a 50 ft cord and may link up to 6 sets.
Product Details:
- High impact resistant polycarbonate housing and cage
- Frosted polycarbonate lens diffuses harsh glares
- Aluminum carabiner hook on each light for quick-hang mounting
- 18/2 SJTW cable, fused 2-prong NEMA 1-15 plug and connector ends
- ETL Listed
- 5 year warranty
TC-TSL-13W-50K-5 User Manual Applications:
- Construction Sites
- Docks
- Hands Free Lighting
- Portable Work Lights
- Temporary Job Site Lighting
- Work Lights
- Workshops
- Workspaces
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Specifications
| Beam Angle | 120° |
|---|---|
| Brand | Super Bright LEDs |
|
CCT
CCT
Correlated Color Temperature (CCT) can be defined as the color of white light a light source is emitting. CCT is measured in Kelvin (K). The different color temperatures along the Kelvin scale correlate with different shades of white light, all of which impact how an individual perceives the space. LED lights are typically grouped into 3 different color temperatures: warm white, natural white, and cool white. Warm white gives off a yellow shade of light, natural light closely resembles the color of light given off from the sun, and cool light has a slightly blue tint to it. |
5000K |
|
Current Draw
Current Draw
The current draw of your lights is calculated using the amount of power your light needs (wattage) and system voltage using the following formula: Watts/Volts = amps or W/V = amps.
An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to1 A. Choosing LED bulbs with the correct amperage ensures proper operation and prevents damage to your electrical system or the bulbs. See your vehicle owner's manual for amperage, wattage, and voltage information, or match the information on your existing bulbs. |
540 mA |
| Dimmable | No |
|
Environmental Rating
Environmental Rating
|
Suitable for Wet Locations, Waterproof |
| Finish | Yellow |
| Input Connection Type | 1-15P Plug |
|
IP Rating
IP Rating
|
IP65 |
| LED Color | Cool 5000K |
| LED Lifetime | 50000 Hours |
| Lumens | 7150 Lumens |
| Material | Polycarbonate |
|
Max Run
Max Run
Max Run (or maximum run) is used to specify the total number of strips that can run in series without experiencing dimming due to voltage drop. When Max Run is reached, power wires for additional devices must be 'home run' directly back to the power source, starting a new run.
|
6 sets |
| Operating Temperature | -20 to 45 °C (-4 to 113 °F) |
| Wattage | 65 Watts |
| Power Factor | ≥0.9 |
| Product Weight | 4.4 lb (2.0 kg) |
|
Standards And Certifications
Standards And Certifications
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application.The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here. |
ETL Listed |
| Voltage | 120 VAC |
| Warranty | 5 Year |
| Wire Length | 57.6 in. (4.8 ft) |
