60W Smart LED Flood Light Fixture - MiLight / MiBoxer RGB+Tunable White - 120V - 6900 Lumens
Part Number:
FL-RGBCCT-60W-120V-x
Manufacturer Part Number:
Starting at
$174.99
ea.
Starting at
Was
Features
- Able to produce full spectrum of colors and white (2200K-6500K)
- Choose to pair with RF Remote or Wifi Hub for convenient wireless control
- Compatible with MiLight / MiBoxer series
- 9 unique dynamic patterns to select with optional controller
- Produces up to 6900 lumens
- 120 VAC
Frequently Bought Together
Total Price:
Loading...
Overview

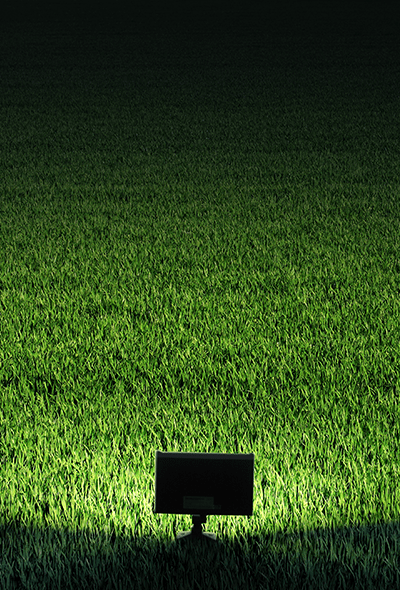

This LED Flood Light has wireless control options to bring convenient, tunable light to outdoor landscapes and venues. With a wide 120° beam angle, integrated RGB+Tunable White LEDs create the full spectrum of colors and whites. Select from the many dynamic patterns and single color choices, adjust brightness, chase speed, and more. Control with a compatible RF remote or pair with the MiBoxer WiFi Hub and app to control from a smart device. The durable build will withstand extreme weather conditions and commercial applications, while the sleek design will compliment event spaces or other decorative environments.
Product Details:
- Black aluminum body, tempered glass lens
- Integrated heat sink for thermal management
- Includes adjustable yoke mount with ground spike
- Electrical connection: 3-prong plug with 5ft (1.5m) cable
- 120° beam angle
- 0-100% dimmable with optional RF Remote or WiFi Controller
- Receiving range: 98.4ft (30m)
- Rated IP65
Documents
FL-RGBCCT Specification Sheet
Super Bright LEDs, Inc. offers a 3-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Products with a Federal Communications Commission (FCC) label meet all requirements and rules set forth by the FCC and won't cause interference with other electronic devices. According to FCC's website, "The Federal Communications Commission regulates interstate and international communications by radio, television, wire, satellite and cable in all 50 states, the District of Columbia and U.S. territories." Products that generate radio frequency (RF) energy, such as RF remote controls and certain LED light bulbs, are tested to ensure that they are within the FCC's guidelines and limits and do not cause harmful interference.
In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.
Specifications
| Ambient Operating Temperature | -20 to 60 °C (-4 to 140 °F) |
|---|---|
| Beam Angle | 120° |
|
CCT
CCT
|
Tunable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
CE, FCC |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
500 mA @ 120 VAC |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
Remote Controlled , Smart App Controlled |
|
Distribution Type
Distribution Type
|
NEMA 7x7 |
| Equivalency | 100 Watt Metal Halide |
| Finish | Black |
| Input Connection Type | 5-15P Plug |
|
IP Rating
IP Rating
|
IP65 |
| LED Color | RGB+Tunable White |
| Rated Life (L70) | 50000 Hours |
| Lens Type | Glass |
| Lumens | 6900 Lumens |
| Mount Type | Yoke Bracket |
| Operating Voltage | 120 VAC |
|
Photocell
Photocell
What is a Photocell and How Does It Work?When an LED light is equipped with a photocell, the light will turn on and off automatically based on the available ambient light. Their unique functionality makes them ideal for outdoor area lighting specifically.Photocells are variable resistors that change the resistance in an electrical circuit depending on the amount of light present where they are mounted. Because of this, they must be mounted in exposed areas where they receive adequate light to function. Photocells, or photocontrols, come in a variety of shapes and sizes and can be integrated into a luminaire or be an added accessory depending on the light. Can a Photocell Be Bypassed?Some lights allow for a photocell to be bypassed as needed. When the photocell is bypassed, it allows for the luminaire to remain on constantly or be controlled by an existing switch or timer. Depending on the type of photocell and how it is installed in the fixture, it may be bypassable using a shorting cap, a slide or DIP switch, or by unplugging the photocell. Consult the user’s manual of the light to confirm which option(s) may be applicable and how to implement them safely. Always use caution and turn off supply power before working on wiring of any type.Shorting CapPhotocells on many commercial applications like parking lot and area lighting applications are mounted externally with a twist-lock socket or adapter. Swapping this for a shorting cap simply closes the circuit on your LED light fixture, which keeps your light in an always-on state. This allows it to be controlled externally as well if a central photocell or switch system is being utilized.DIP Switch or Slide SwitchWhile DIP switches and standard slide switches function differently in most cases, when integrated into the photocontrol system of a light they perform the same function. Switches like these are common on canopy and dusk-to-dawn barn lights. These types of switches allow you to toggle the photocell sensor on or off to fit your needs without any rewiring or replacing parts.Disconnect the WiringSome photocell designs, such as those commonly found in wall packs, allow the operator to simply unplug the photocell to allow the light to work in an always-on state or be controlled by an external switch. |
No Photocell |
| Product Materials | Aluminum Housing |
| Warranty | 3 Year |
| Wattage | 60 Watts |
| Wire Length | 56.4 in. (4.7 ft) |
| Part NO | Smart Home Ecosystem |
|---|---|
| FL-RGBCCT-60W-120V | |
| FL-RGBCCT-60W-120V-RGBCCT-MZ8-RF | |
| FL-RGBCCT-60W-120V-WIFI-CON2 | Amazon Alexa, Google Home |
