LED Hideaway Strobe Lights - Mini Emergency Vehicle LED Warning Lights with Built-In Controller - Surface Mount

LED Hideaway Strobe Lights - Mini Emergency Vehicle LED Warning Lights with Built-In Controller - Surface Mount

Part Number
MSTRB
Clearance

Starting at $34.99 ea.

Black Friday Sale: 15% Off Your Entire Purchase! When you use code BFCM22 at checkout. Details⇒

Overview

Lifetime warranty on all emergency vehicle and strobe LED lights. Hideaway LED Strobe lights provide warning protection for fire, rescue, police, ambulance, or construction vehicles requiring powerful discrete or even hidden warning lights. Installs easily in headlight or taillight housings. Internal controller has 37 strobe patterns. Black painted aluminum housing with convex lens and fully potted circuit board to resist water and corrosion. 10~30 VDC. 7" power wires. Surface or through-hole mountable using 2 screw holes 1.26" apart. Available in Red, Purple, Amber, Green, Blue, or White LEDs with 360 or 180 degree beam pattern. Dimensions: 4.039cm(1.59") diameter x 3.112cm(1.23") height.
Lifetime
Lifetime
Super Bright LEDs, Inc. warrants that products carrying a lifetime warranty will be free from defects in the material and workmanship for the lifetime of the product. If Super Bright LEDs verifies that the defect was not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product with the same product. In the case the exact product is no longer available, a product of equal value may be substituted or a gift card for the value of the product. Read More

Applications

  • Funeral Lights
  • Safety Lighting
  • Emergency Vehicle Lighting
  • LED Emergency Lights
  • Utility Vehicles
  • Warning Lights
  • Hazard Lights
  • Waste Removal Vehicles
  • Roadside Assistance Vehicles
  • Wreckering & Utility Vehicles Lights
  • Construction Vehicles
  • Public Safety Vehicles
  • Farm Equipment Lighting

Similar LED Strobe Modules

  Current Product LED Hideaway Strobe Lights - Mini Emergency Vehicle LED Warning Lights with Built-In Controller - Surface Mount
Color Options
Amber
Blue
Green
Purple
Red
White
Amber
White
Amber
Amber/White
Green
Green/White
Red/Blue
White
Amber
Amber/Blue
Amber/Green
Amber/Red
Amber/White
Blue
Blue/White
Green
Green/White
Red
Red/Blue
Red/White
White
Amber
Amber/White
Red
Red/Blue
White
Amber
Amber/White
Green
Green/White
Red/Blue
White
Beam Angle
, 180°
120°
30°
120°
120°
30°
IP Rating
IP67
IP67
IP67
IP65
IP67
IP67
Shape
Round
Rectangular
Rectangular
Rectangular
Round
Rectangular
Volts
10~30 VDC
10~30 VDC
12~24 VDC
12~24 VDC
12~24 VDC
12-24 VDC
Price
$34.99 - $54.99 ea.
$22.99 ea.
$29.99 ea.
$26.99 ea.
$25.99 ea.
$32.99 ea.


Specifications

IP Rating IP67
Mount Type Surface
PC Rated No
Standards And Certifications RoHS Compliant
Volts 10~30 VDC
Wire Length 7in(17.8cm)
Print Specifications
Swipe left to see additional specifications
Part NO Current Draw
MSTRB-180-A 0.08A (80mA)
MSTRB-180-B 0.68A (680mA)
MSTRB-180-G 0.68A (680mA)
MSTRB-180-P 0.68A (680mA)
MSTRB-180-R 0.68A (680mA)
MSTRB-180-W 0.68A (680mA)
MSTRB-360-A 0.1A (100mA)
MSTRB-360-B 0.68A (680mA)
MSTRB-360-G 0.68A (680mA)
MSTRB-360-P 0.68A (680mA)
MSTRB-360-R 0.1A (100mA)
MSTRB-360-W 0.12A (120mA)

 Installation & Product Information for LED Hideaway Strobe Lights

MSTRB Mounting Options:

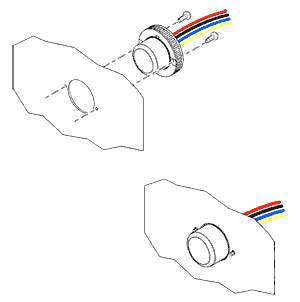

I. Standard Mounting Option
The strobe light head is inserted through the mounting surface and is fastened from the rear of the light base with two self-tapping screws.

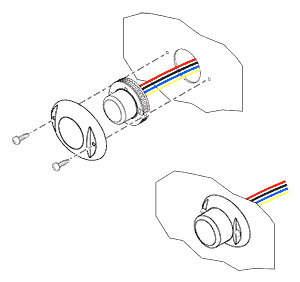

II. Flange Mounting Option (not included)
Wiring is first routed through a hole in the mounting surface. The strobe light head is inserted through a flange, which is then fastened directly to mounting surface by two self-tapping screws.

Wiring Options and Flash Patterns:
Wiring Key
Red (Positive/V+) Blue (Pattern Select)
Black (Negative/V) Yellow (Synchronize)
Warning
  • Before making any connections to the automotive wiring, always disconnect the battery negative terminal.
  • Do not install this product or route wiring in the car air bag deployment area. Refer to the vehicle manual for air bag information.
  • Use an appropriate fuse for the positive wire connection
Compatible Strobe Lights
  • All MSTRB lights are compatible with each other for flash pattern syncing applications. A momentary mode switch can be used give the lights alternating or synced flash patterns.
  • For more information on syncing functionality watch the LED Hideaway Strobe Lights video (left), or view the MSTRB Mini-Strobe LED Light manual.

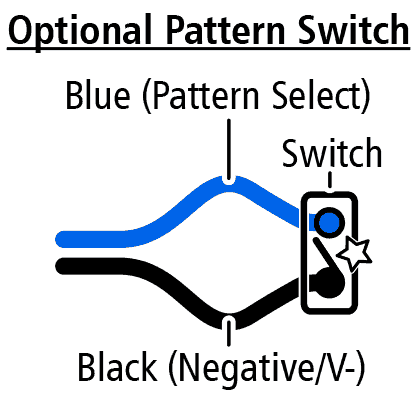

Flash Pattern & Momentary Mode Switch Operation:
Select strobe patterns by contacting the Pattern Select (blue) wire to the Negative (black) wire. Selection options vary with the duration of pattern switch contact. To achieve synchronization between multiple lights, make sure all lights are set in P1 (default) pattern. Tie all yellow wires together, and then initiate pattern selection. Use optional master switch for pattern memory retention.
Operation
Strobe Pattern Selection Options Duration of Wire Contact
Select Next Pattern 0-1 Sec.
Select Previous Pattern 1-3 Sec.
P1 (Default) 3-5 Sec.
Turn Off/Reset to P1 5+ Sec.
MSTRB Series Flash Patterns
P1: Single 120 FPM Ph1-Color 1&2 P2: Single 120 FPM Ph2-Color 1&2 P3: Single 120 FPM Ph1-Color 1
P4: Single 120 FPM Ph2-Color 2 P5: Single 120 FPM Alt. Color 12 P6: Single 300 FPM Ph1-Color 1&2
P7: Single 300 FPM Ph2-Color 1&2 P8: Single 300 FPM Ph1-Color 1 P9: Single 300 FPM Ph2-Color 2
P10: Single 300 FPM Alt. Color 12 P11: Single 75 FPM Ph1-Color 1&2 P12: Single 75 FPM Ph2-Color 1&2
P13: Single 75 FPM Alt. Color 12 P14: Double 75 FPM Ph1-Color 1&2 P15: Double 75 FPM Ph2-Color 1&2
P16: Double 75 FPM Alt. Color 12 P17: Double 120 FPM Ph1-Color 1&2 P18: Double 120 FPM Ph2-Color 1&2
P19: Double 120 FPM Alt. Color 12 P20: Quad 75 FPM Ph1-Color 1&2 P21: Quad 75 FPM Ph2-Color 1&2
P22: Quad 75 FPM Ph1-Color 1 P23: Quad 75 FPM Ph2-Color 2 P24: Quad 75 FPM Alt. Color 12
P25: Quad 120 FPM Ph1-Color 1&2 P26: Quad 120 FPM Ph2-Color 1&2 P27: Quad 120 FPM Ph1-Color 1
P28: Quad 120 FPM Ph2-Color 2 P29: Quad 120 FPM Alt. Color 12 P30: Quint 120 FPM Ph1-Color 1&2
P31: Quint 120 FPM Ph2-Color 1&2 P32: Quint 120 FPM Alt. Color 12 P33: 2 Double 75 FPM,4 Quad 120 FPM
P34: Modul. Flash Color 12 P35: AutoRun P36: STEADY LIGHT / P37: OFF
